Switch 1 Configuration (SISPM1040-582-LRT)
VLANs Port 3 Trunk Tag All 5,10
Port 4 Trunk Tag All 5,10
STP Port 3 Disable
Port 4 Disable
MEPs Instance Port VLAN MAC MEP ID Peer MAC Peer MEP ID
1 3 10 00-C0-F2-49-39-5F 1 00-40-C7-1C-C7-30 4
2 4 10 00-C0-F2-49-39-60 5 00-C0-F2-53-EF-FC 5

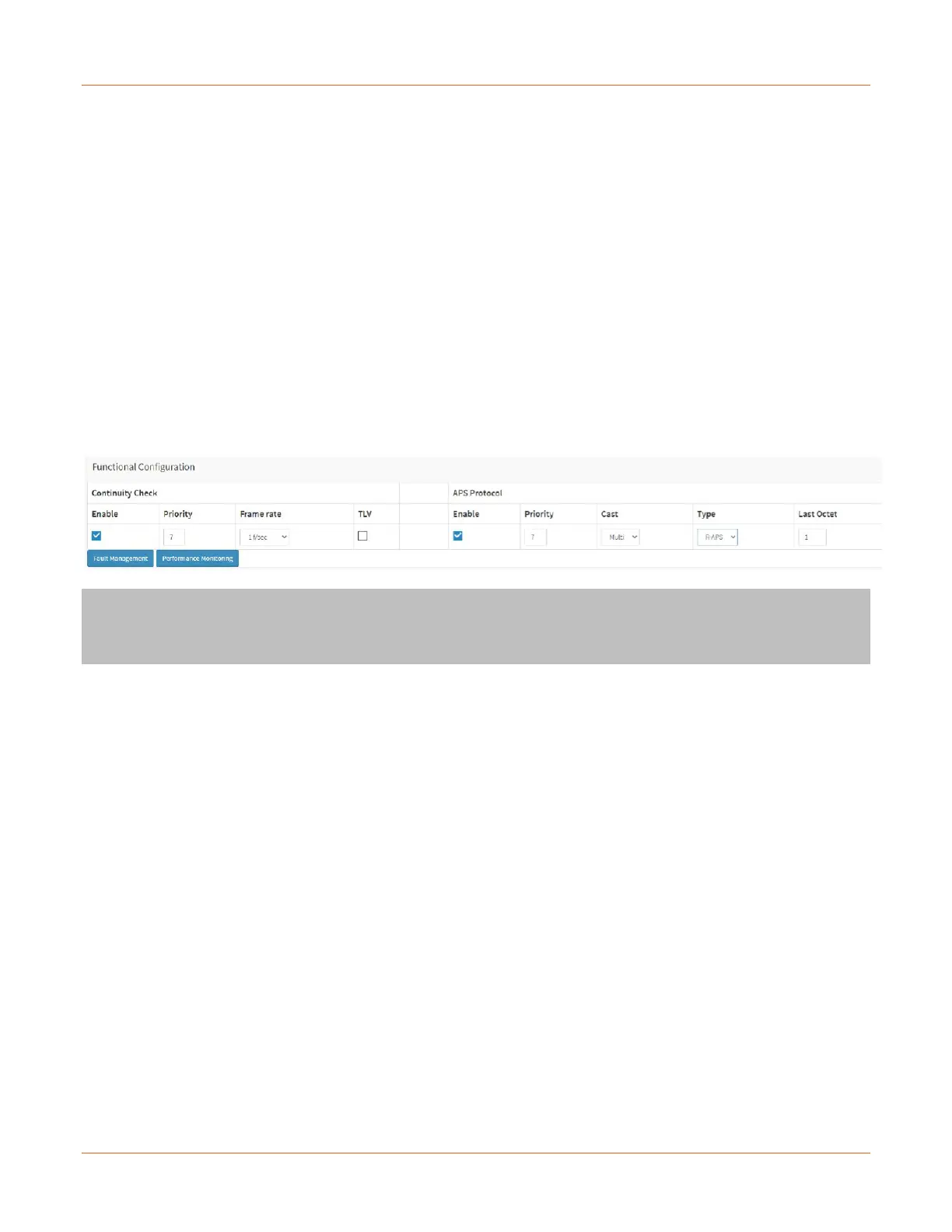

Note: All MEPs are programed the same under the Functional Configuration
Continuity Check
Check Enable – Priority: 7 – Frame rate: 1f/sec
APS Protocol
Check Enable – Priority: 7 – Cast: Multi – Type: R-APS
ERPS
ERPS ID Port 0 Port 1 Port 0 SF Port 1 SF Port 0 APS Port 1 APS Ring RPL Port VLAN
1 1 2 1 2 1 2 Major Owner 0 5
