Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 489
Switch 4 Configuration (SISPM1040-362-LRT[E])
VLANs Port 3 Trunk Tag All 5,10
Port 4 Trunk Tag All 5,20
Port 5 Trunk Tag All 5,10,20
STP Port 3 Disable
Port 4 Disable
Port 5 Disable
MEPs Instance Port VLAN MAC MEP ID Peer MAC Peer MEP ID
1 3 10 00-C0-F2-53-EF-FC 5 00-C0-F2-49-39-60 2
2 4 20 00-C0-F2-53-EF-FD 6 00-C0-F2-53-F0-B9 7
3 5 10 00-C0-F2-53-EF-FE 10 00-40-C7-1C-C7-31 9

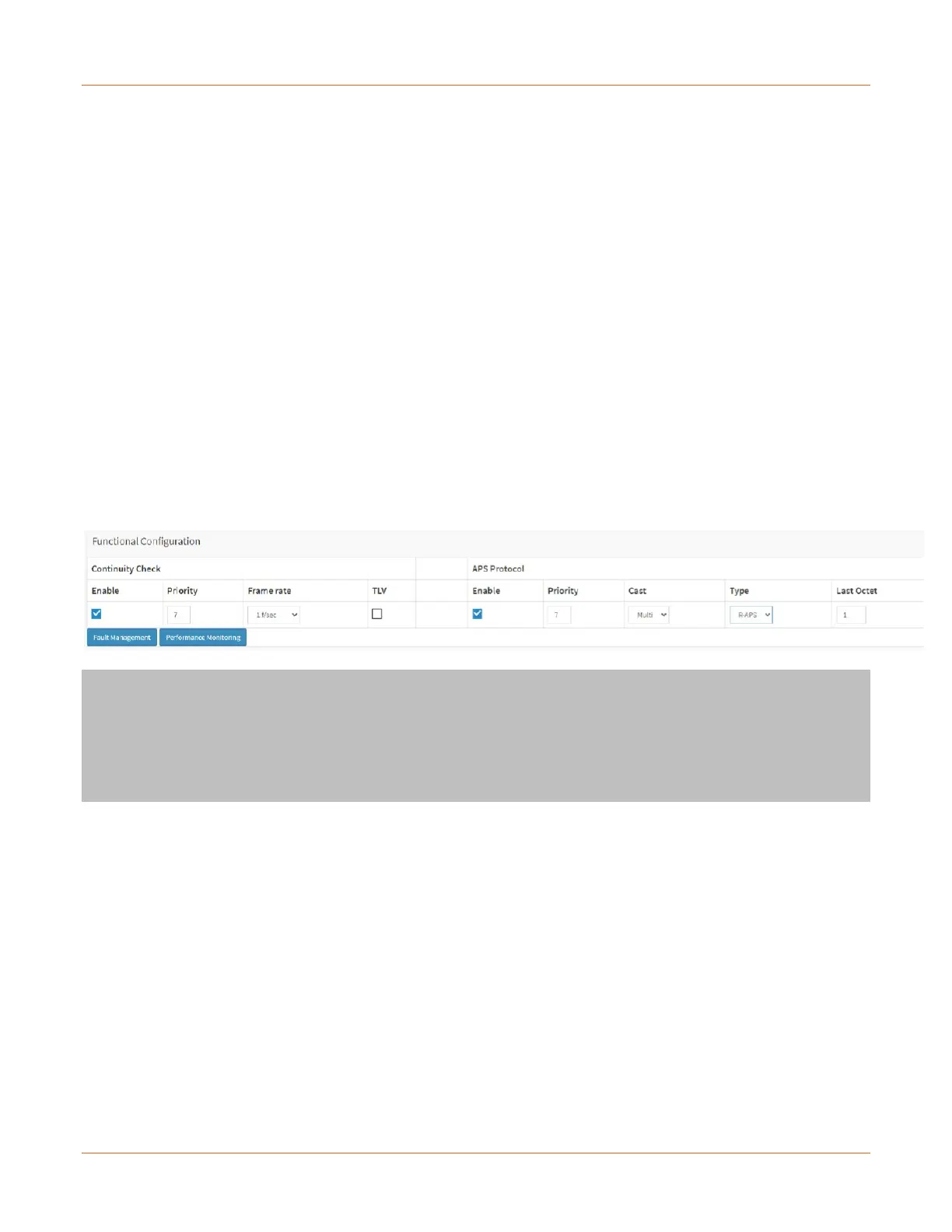

Note: All MEPs are programed the same under the Functional Configuration
Continuity Check
Check Enable – Priority: 7 – Frame rate: 1f/sec
APS Protocol
Check Enable – Priority: 7 – Cast: Multi – Type: R-APS
ERPS
ERPS ID Port 0 Port 1 Port 0 SF Port 1 SF Port 0 APS Port 1 APS Ring RPL Port VLAN
1 1 3 1 3 1 3 Major None 5
2 2 0 2 0 2 0 Sub None 5
Interconnect Yes, Major 1
