14. To unlock the center-link, pull up on latch (A) and position latch into notch (B) on top of hook.
15. Lift center-link off header pin.
NOTE:
If center-link self-alignment kit is installed, start engine and raise center-link with the REEL UP switch on the
ground speed lever (GSL).
16. Slowly back the windrower away from the header, shut the engine OFF, and remove the key from the gnition.
Attaching Header Transport Hitch to Header
Attach header transport hitch to header as follows:
1000713
A
B
C
D

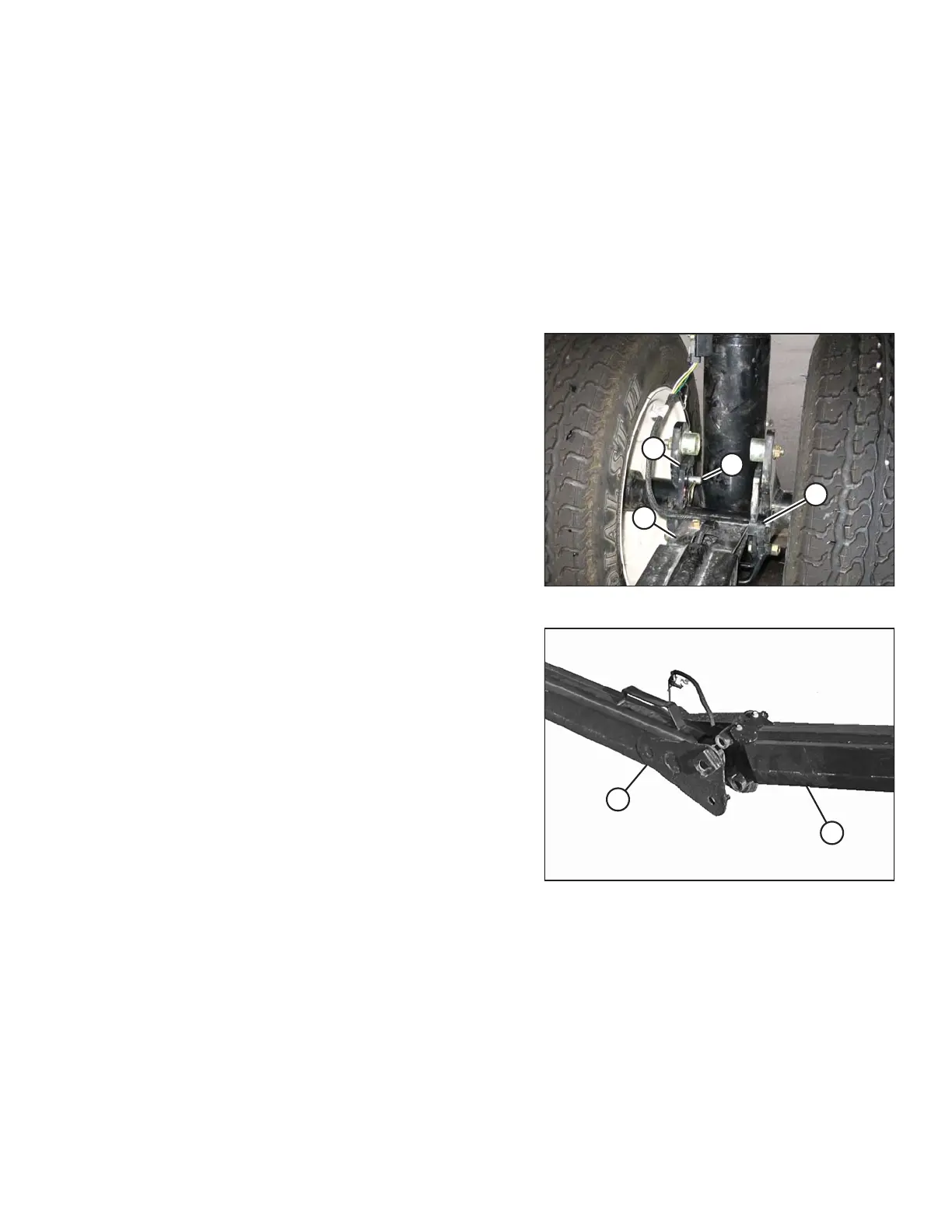

Figure 4.44: Transport Hitch
1. Position end (A) of the aft section onto front wheel
hook (B).
2. Push down until latch (C) captures the end (A).
3. Secure latch (C) with clevis pin (D).
100071510007151000715
A
B
Figure 4.45: Transport Hitch
4. Remove the L-pin from end (A) of aft section
(if installed).
OPERATION
