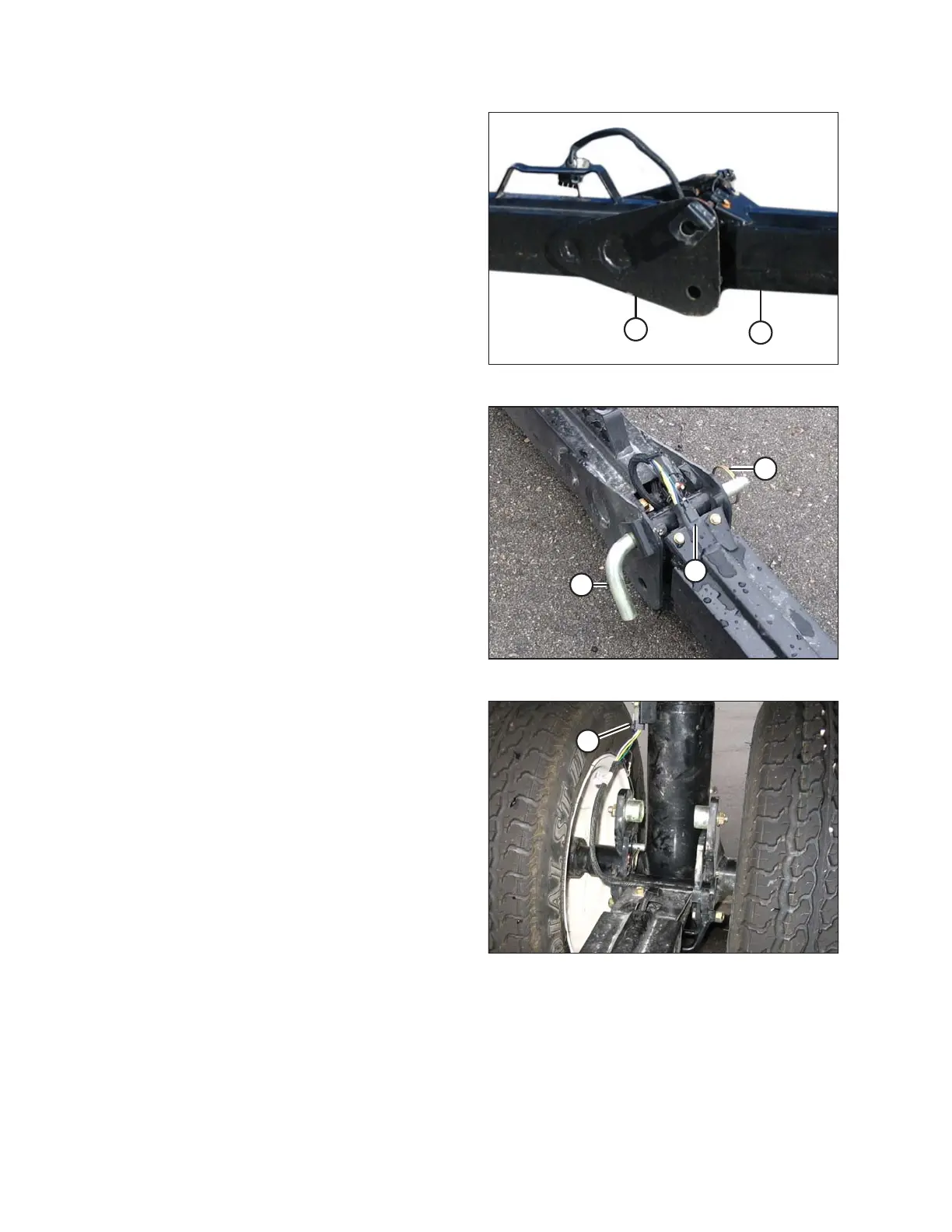

Figure 4.46: Transport Hitch
5. Position end (B) of the forward section into end (A) of
the aft section. Lower forward section into aft section.
1000716
A
B
C
Figure 4.47: Transport Hitch
6. Fully insert L-pin (A) in upper hole and turn pin to lock it.
Secure with ring pin (B).
7. Make electrical connection at the joint (C).
1000717
A
Figure 4.48: Header Transport Wheel
8. Make the electrical connection at the header wheel (A).
