214603 187 Revision A

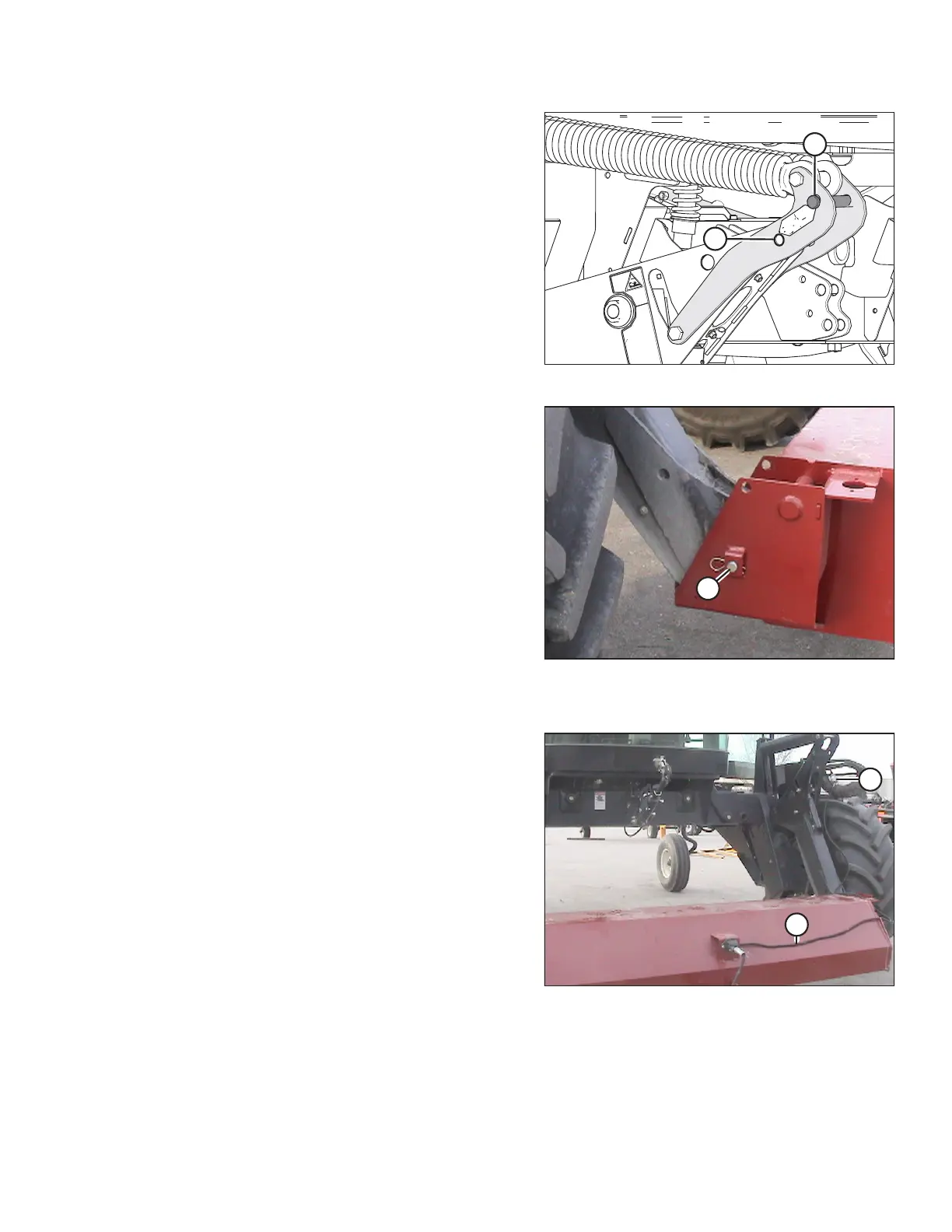

Figure 4.49: Lift Linkage
IMPORTANT:
To prevent damage to the lift system when lowering
header lift linkages without a header or weight box
attached to windrower, ensure that float engagement
pin is installed in storage location (B) and NOT installed
at hole location (A).
Figure 4.50: Windrower Lift Linkage
9. Drive windrower so that windrower lift arms are
positioned into the weight box pockets.
10. Raise lift arms slightly, install locking pins (A) into
pockets, and through windrower header lift linkages.
Secure with hairpin.
NOTE:
Pins (A) were previously removed from the header lift
linkage lower end.
Figure 4.51: Weight Box
11. Route the weight box harness (A) to the electrical
connector at the left side lift linkage and connect
harness to connector on windrower (B).
12. Raise lift arms fully, shut engine OFF, and remove key
from ignition.
OPERATION
