214603 202 Revision A

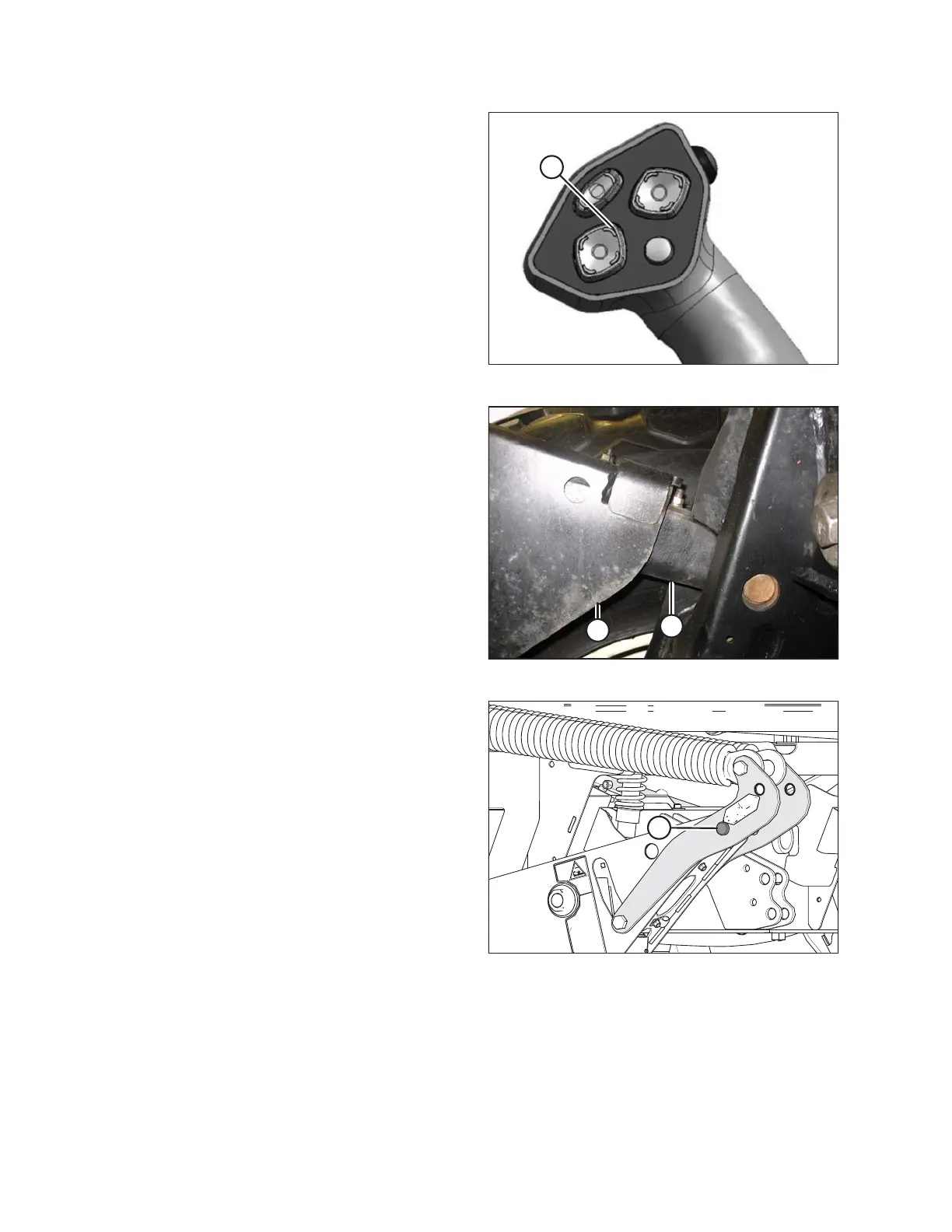

Figure 4.74: Ground Speed Lever (GSL)
2. Park windrower on level ground.
3. Raise header fully with HEADER UP button (A) and
hold momentarily to allow lift cylinders to rephase.
Figure 4.75: Lift Linkage
4. Set header approximately 150 mm (6 in.) off ground
and check that member (A) is against link (B). Stop
engine and remove key from ignition.
5. Measure distance to ground at both ends of header and
determine the end that is higher.
6. If adjustment is necessary, start the engine and raise
the header fully. Turn off the engine and remove the key
from the ignition.
Figure 4.76: Float Pins – Engaged
7. Move float pins to engaged position (A).
OPERATION
