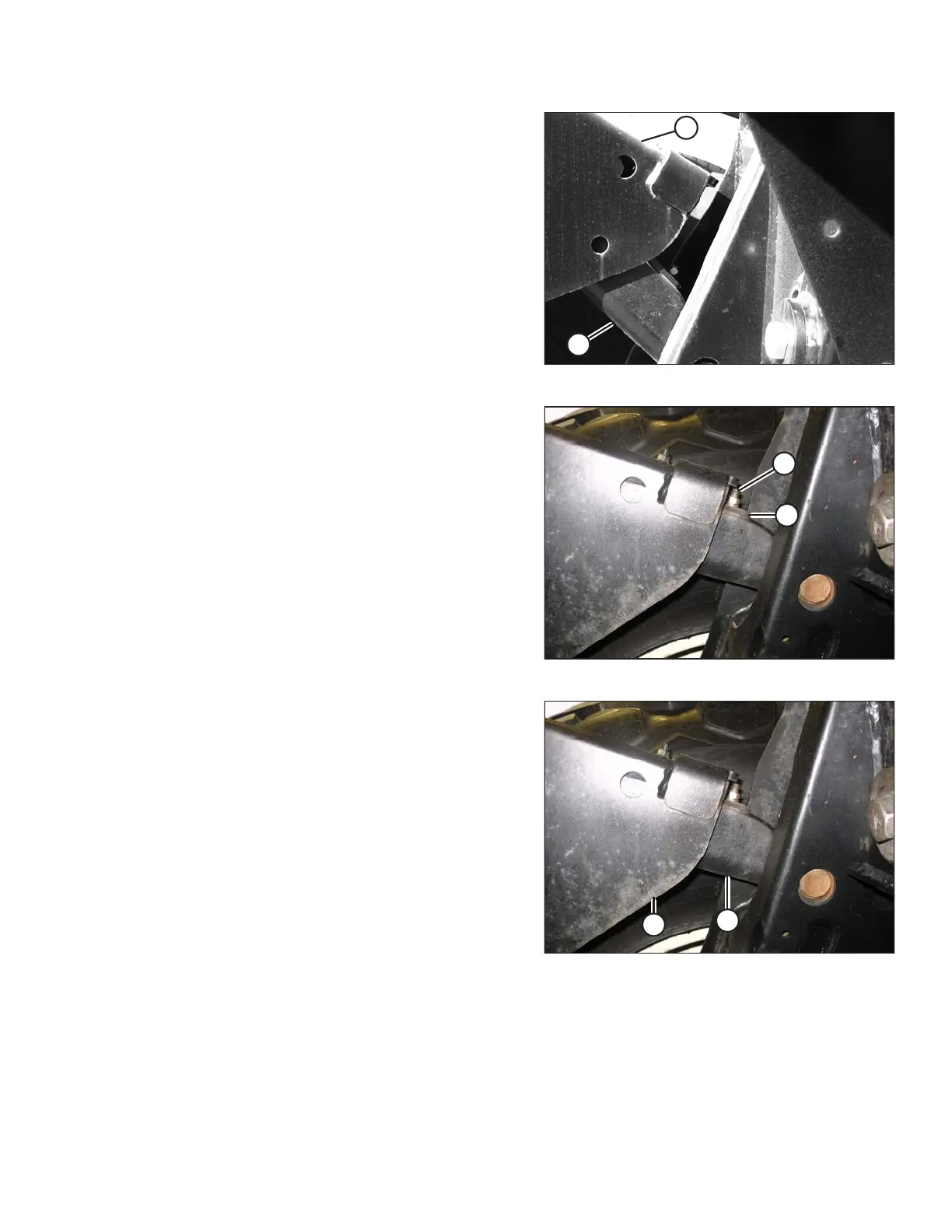

Figure 4.77: Lift Linkage
8. Start the engine and lower the header onto the ground
until member (A) lifts off link (B) on both sides.
9. Stop the engine and remove the key.
1000733
A
B
Figure 4.78: Lift Linkage
10. On high side, remove nut, washer, and bolt (A) that
attaches shims (B) to link.
11. Remove one or both shims (B), and reinstall the
hardware (A).
1000732
A
B
Figure 4.79: Lift Linkage
12. Start the engine and raise the header fully.
13. Stop the engine and remove the key from the ignition.
14. Move float pins to disengaged position.
15. Start the engine and set the header approximately 150
mm (6 in.) off ground and check that member (A) is
against link (B). Stop the engine and remove the key
from the ignition.
16. Measure distance to ground at both ends of the header.
17. If additional levelling is required, repeat Steps 6, page
202 to 9, page 203 and install the removed shim on the
opposite linkage.
NOTE:
If required, additional shims are available from your Dealer.
