214603 230 Revision A
1000771
A
B
C
D

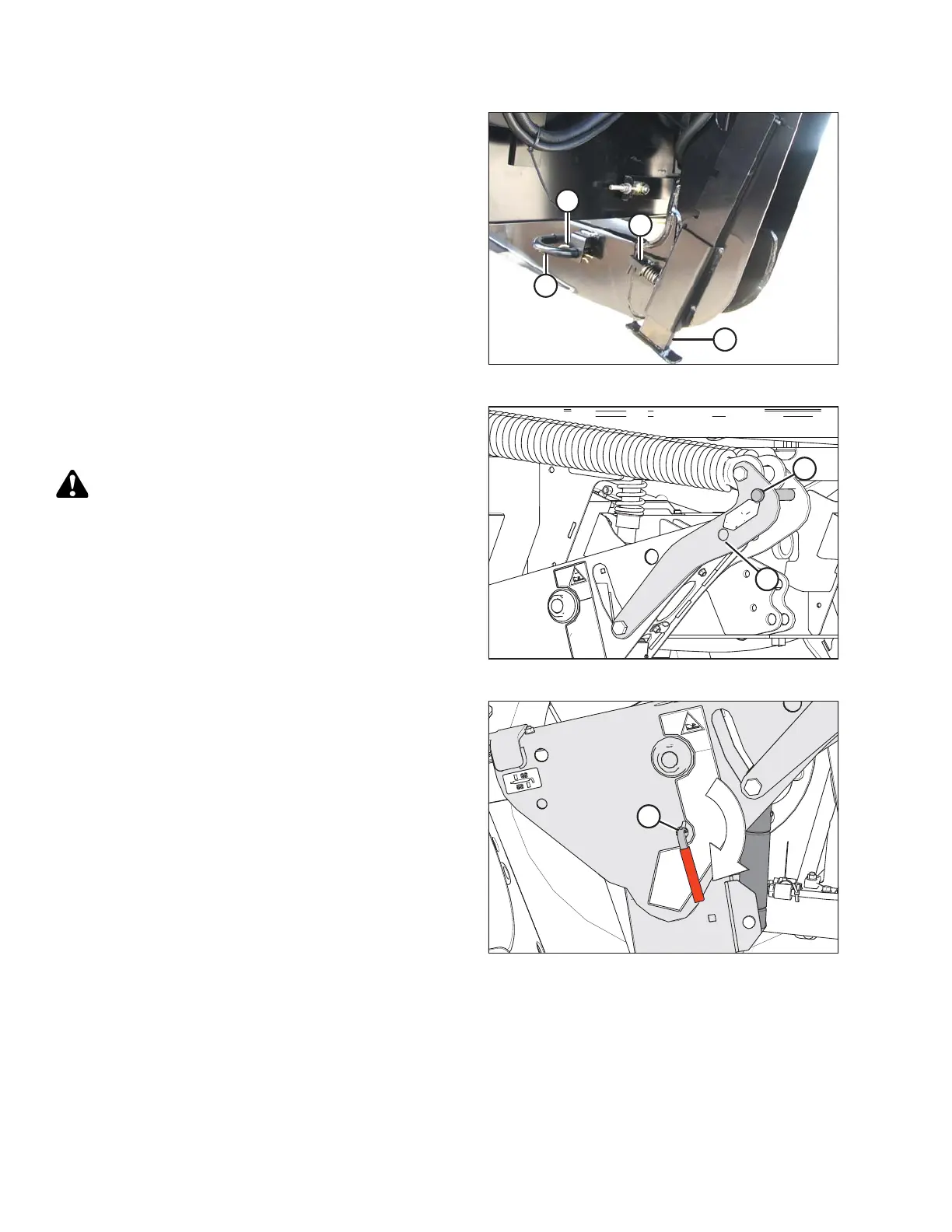

Figure 4.134: Header Stand
5. Remove the pin (B) by removing the hairpin (A) from
header leg on both sides.
6. Lower header stand (D) by pulling spring loaded
pin (C). Release spring pin to lock stand.
1008704
B
A
Figure 4.135: Header Float Linkage
7. Remove clevis pin from location (A) to disengage float
springs and insert in storage hole (B). Secure with
lynch pin.
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight box
attached to the windrower, ensure the float engagement
pin is installed in storage position (B) and NOT in
engaged position (A).
1014507
A
Figure 4.136: Safety Prop
8. Turn lever (A) away from header to raise safety prop
until lever locks into vertical position. Repeat for
opposite cylinder.
9. Start the engine, choose a level area, and lower the
header to the ground.
10. Stop the engine, and remove the key.
OPERATION
