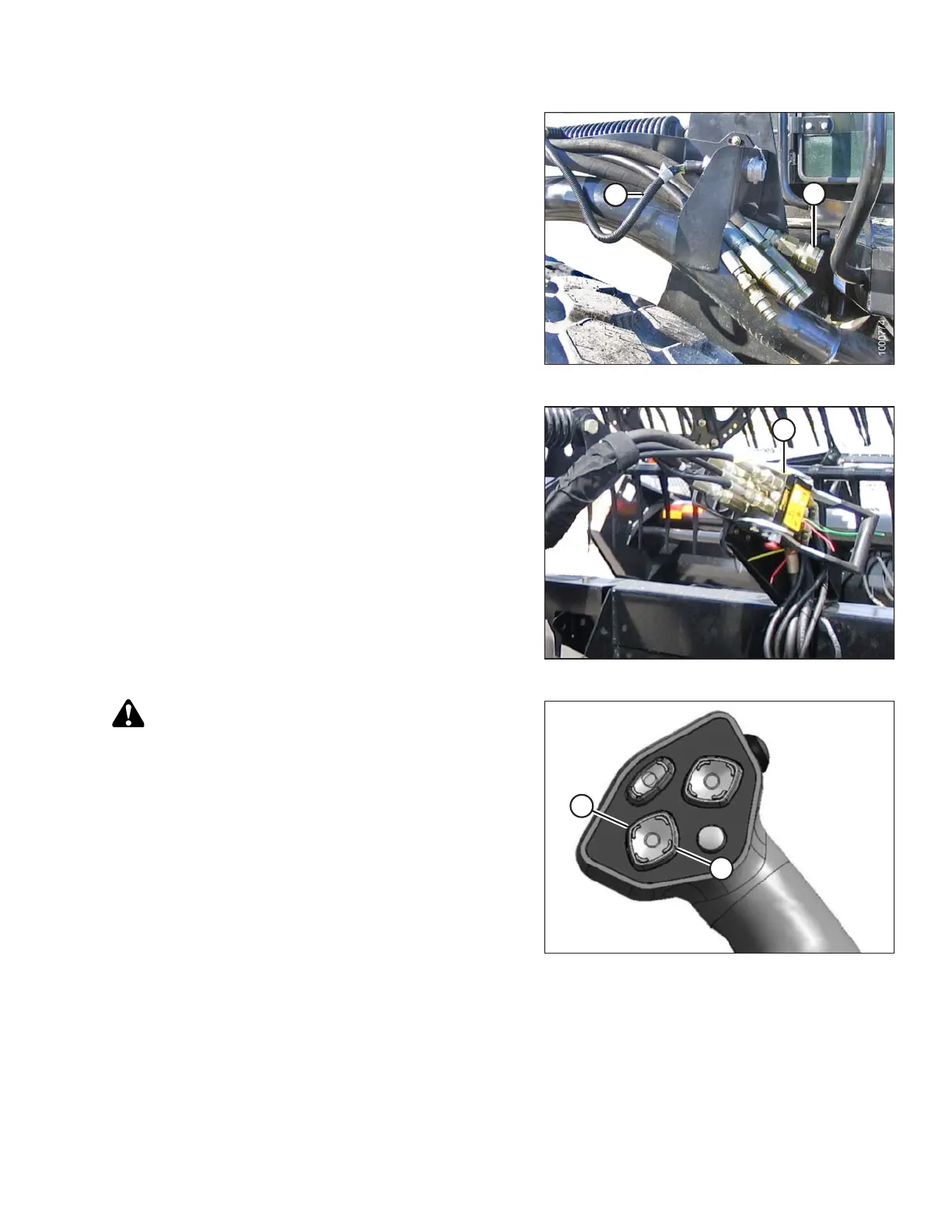

Figure 4.137: Header Drive Hydraulics
11. Disconnect header drive hydraulics (A) and electrical
harness (B) from header and store in support on
windrower left cab-forward side. Refer to the draper
header operator’s manual for further information.
Figure 4.138: Reel Hydraulics
12. Disconnect reel hydraulics (A) from header and store on
bracket at windrower left cab-forward side. Refer to the
draper header operator’s manual for further information.
Figure 4.139: Ground Speed Lever
CAUTION
Check to be sure all bystanders have cleared the area.
13. Start the engine, and activate HEADER TILT UP (A)
and HEADER TILT DOWN (B) cylinder switches on the
ground speed lever (GSL) to release load on the center-
link cylinder.
OPERATION
