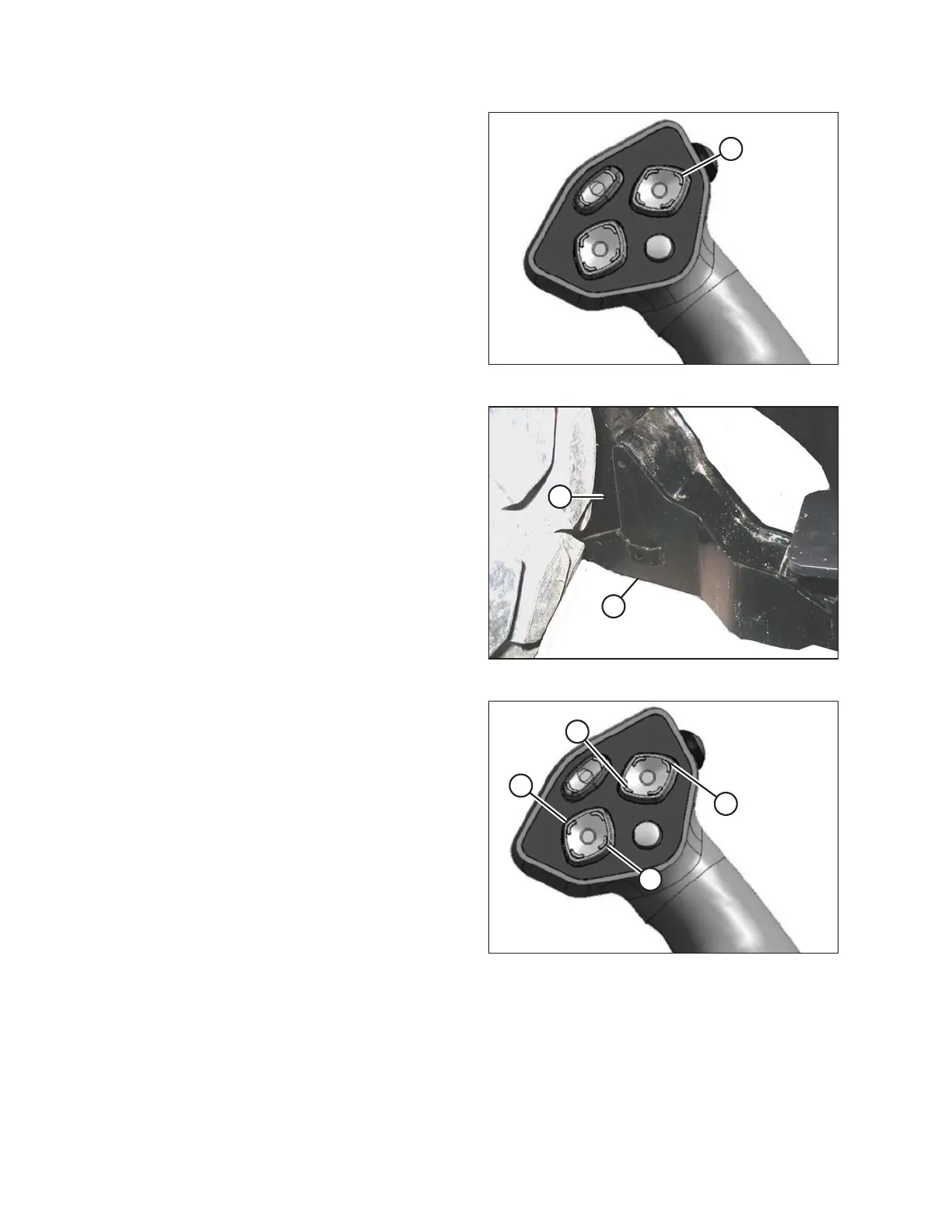

Figure 4.145: Ground Speed Lever
3. Activate the REEL UP switch (A) on the GSL to raise
the center-link until the hook is above the attachment
pin on the header.
IMPORTANT:
If the center-link is too low, it may contact the header as
the windrower approaches the header for hookup.
1000780
B
A
Figure 4.146: Header Support
4. Drive the windrower slowly forward until the windrower
feet (A) enter the header supports (B). Continue driving
slowly forward until the feet engage the supports and
the header nudges forward.
1008944
A
B
C
D
Figure 4.147: Ground Speed Lever
5. Use the following GSL functions to position the
center-link hook above the header attachment pin:
• REEL UP (A) to raise the center-link
• REEL DOWN (B) to lower the center-link
• HEADER TILT UP (C) to retract the center-link
• HEADER TILT DOWN (D) to extend the center-link
