214603 242 Revision A

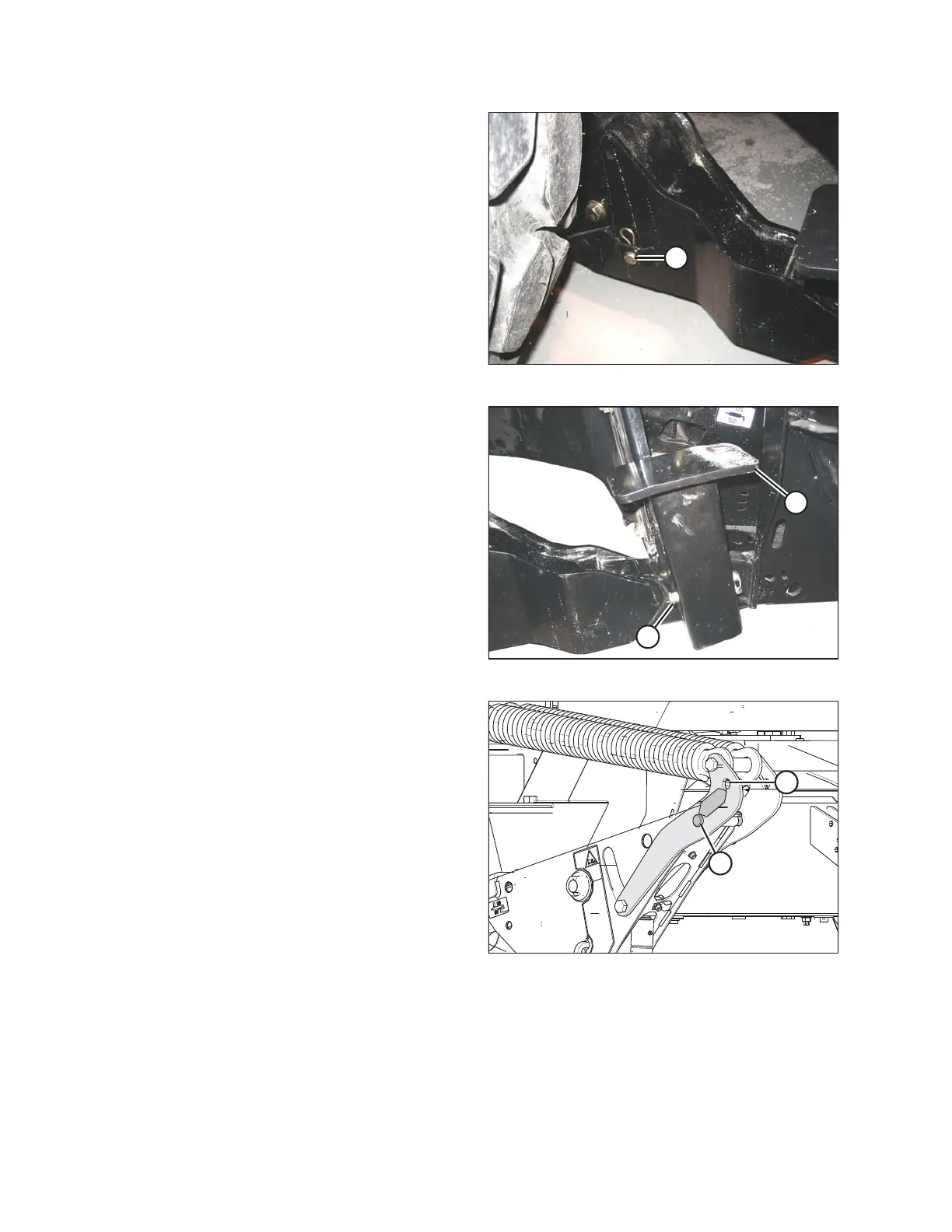

Figure 4.166: Header Support
13. Install clevis pin (A) through support and foot and
secure with hairpin. Repeat for opposite support.
IMPORTANT:
Ensure clevis pin (A) is fully inserted and hairpin is
installed behind bracket.
Figure 4.167: Header Stand
14. Remove lynch pin from clevis pin (A) in stand (B).
15. Hold stand (B) and remove pin (A).
16. Move stand (B) to storage position by inverting and
relocating onto bracket as shown. Reinsert clevis
pin (A) and secure with lynch pin.
Figure 4.168: Header Float Linkage
17. Remove the clevis pin from storage position (B) in
linkage and insert into hole (A) to engage the float
springs. Secure with hairpin.
OPERATION
