214603 246 Revision A
1000797
A
B

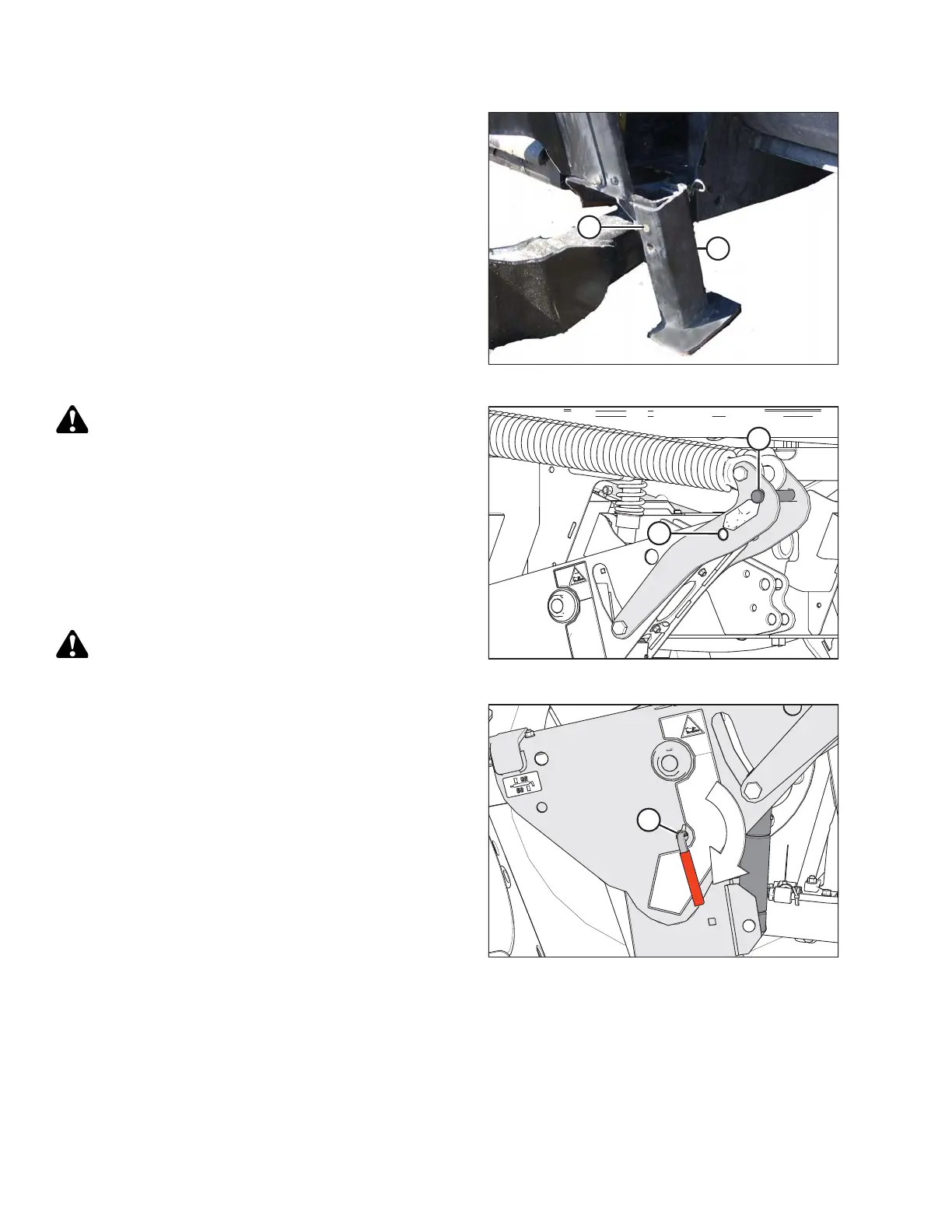

Figure 4.175: Header Stand
6. Lower stand (A) by pulling clevis pin (B), inverting
stand, and relocating on bracket. Reinsert pin (B) and
secure with hairpin.
1008711
A
B
Figure 4.176: Header Float Linkage
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight box
attached to the windrower, ensure the float engagement
pin is installed in storage position (B) and NOT in
engaged position (A).
7. Remove the lynch pin from the clevis pin, and remove
the clevis pin from linkage (A) to disengage float
springs, and insert clevis pin into storage hole (B).
Secure with lynch pin. Repeat for opposite linkage.
CAUTION
Check to be sure all bystanders have cleared the area.
1014507
A
Figure 4.177: Safety Props
8. Disengage safety props by turning lever (A) away from
header to raise safety prop until lever locks into vertical
position. Repeat for opposite cylinder.
9. Start the engine, choose a level area, and lower the
header to the ground.
OPERATION
