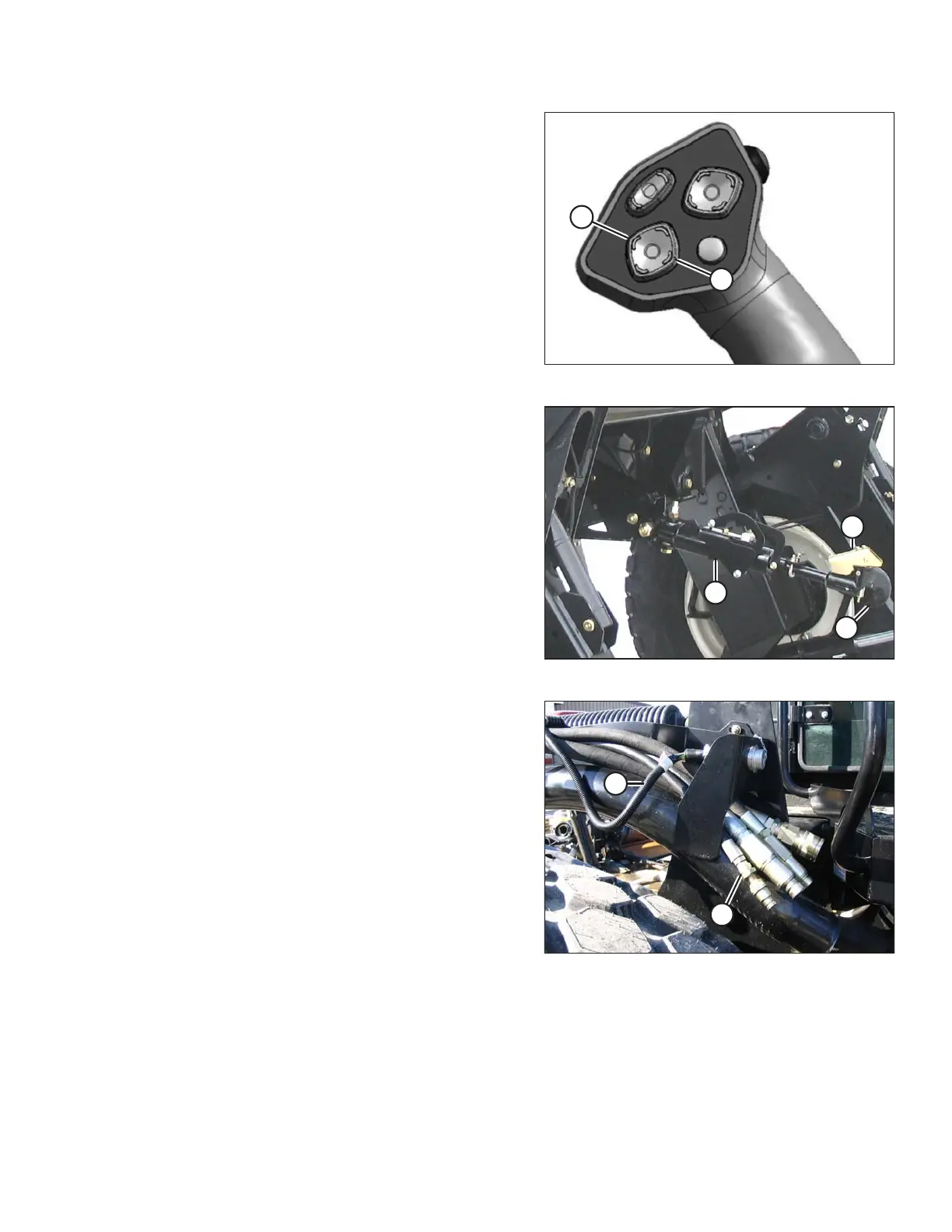

Figure 4.178: Ground Speed Lever
10. Activate HEADER TILT UP (A) and HEADER TILT
DOWN (B) cylinder switches on the GSL to release load
on center-link cylinder.
Figure 4.179: Hydraulic Center-Link
11. Stop the engine and remove the key from the ignition.
12. Lift hook release (C) and lift hook (B) off header pin.
NOTE:
If optional center-link self-alignment kit is installed, lift
release (C) and then operate the link lift cylinder with
REEL UP switch on the GSL to disengage the center-
link from the header.
Figure 4.180: Header Drive Hydraulics
13. Disconnect header drive hydraulics (A) and electrical
harness (B). Refer to the auger header operator’s
manual.
14. Back the windrower slowly away from the header.
