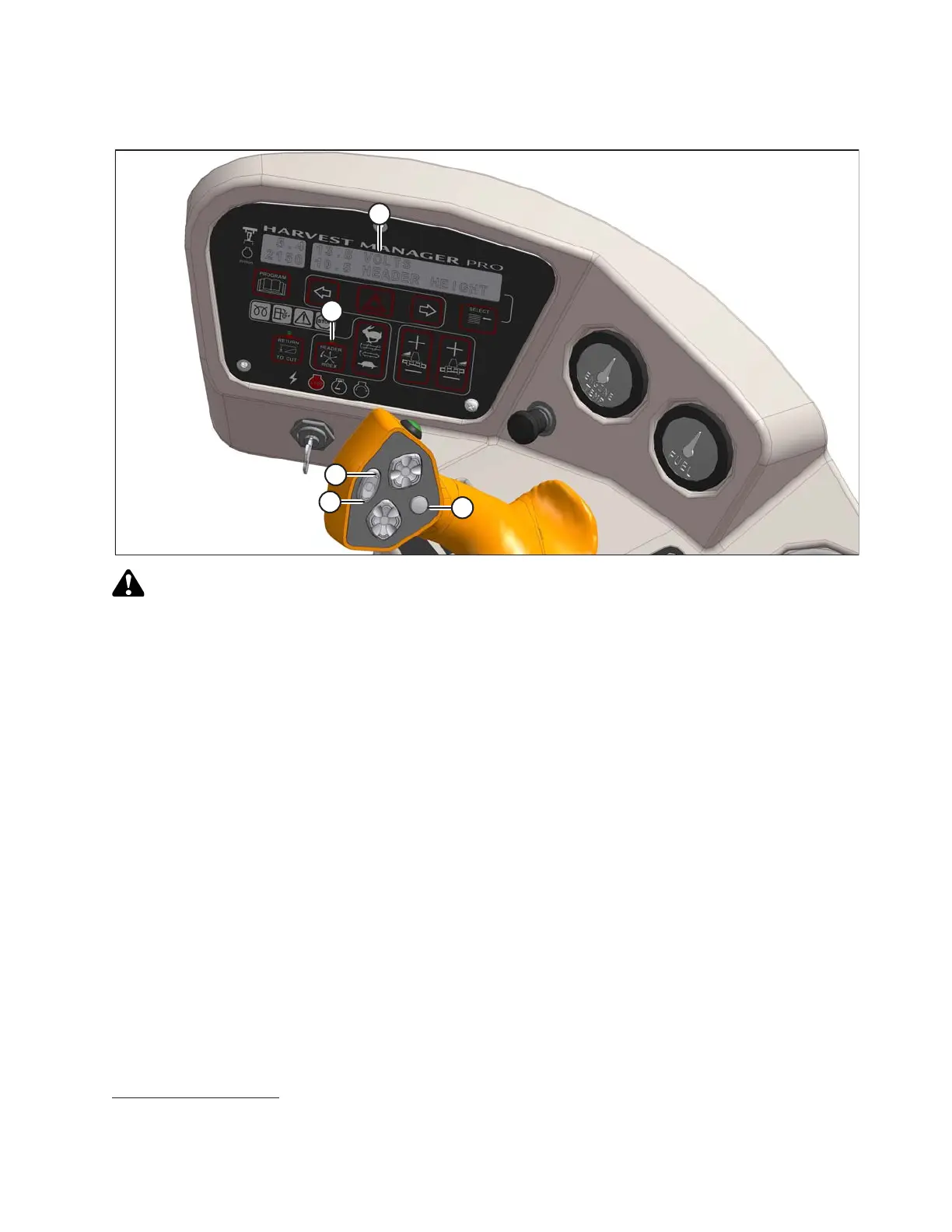

Figure 4.223: Operator Console
CAUTION
Check to be sure all bystanders have cleared the area.
1. Set the minimum reel speed as follows:
IMPORTANT:
Set the minimum reel speed while stationary with the ground speed lever (GSL) in the N-DETENT position.
a. Engage header.
b. Set HEADER INDEX switch (B) to ON.
c. Press the DISPLAY SELECTOR button (E) on the GSL to display ##.## MIN REEL at (A) or press the
FAST (C) or SLOW (D) switch.
The displayed value (##.##) = rpm or mph or km/h
18
d. Press FAST (C) or SLOW (D) until the desired minimum reel speed is achieved.
2. Set the reel index as follows:
IMPORTANT:
Reel index can only be adjusted while operating at a ground speed faster than minimum reel speed plus
header index value.
a. Set HEADER INDEX switch (B) to ON.
OPERATION
18. Depending on CDM programming.
