USB on-the-go full-speed (OTG_FS) RM0090
1338/1749 RM0090 Rev 18
1. When an STALL, TXERR, BBERR or DTERR interrupt in OTG_FS_HCINTx is received
for an IN or OUT channel. The application must be able to receive other interrupts
(DTERR, Nak, Data, TXERR) for the same channel before receiving the halt.
2. When a DISCINT (Disconnect Device) interrupt in OTG_FS_GINTSTS is received.
(The application is expected to disable all enabled channels).
3. When the application aborts a transfer before normal completion.
Operational model
The application must initialize a channel before communicating to the connected device.
This section explains the sequence of operation to be performed for different types of USB
transactions.
• Writing the transmit FIFO
The OTG_FS host automatically writes an entry (OUT request) to the periodic/non-
periodic request queue, along with the last word write of a packet. The application must
ensure that at least one free space is available in the periodic/non-periodic request
queue before starting to write to the transmit FIFO. The application must always write
to the transmit FIFO in words. If the packet size is non-word aligned, the application
must use padding. The OTG_FS host determines the actual packet size based on the
programmed maximum packet size and transfer size.

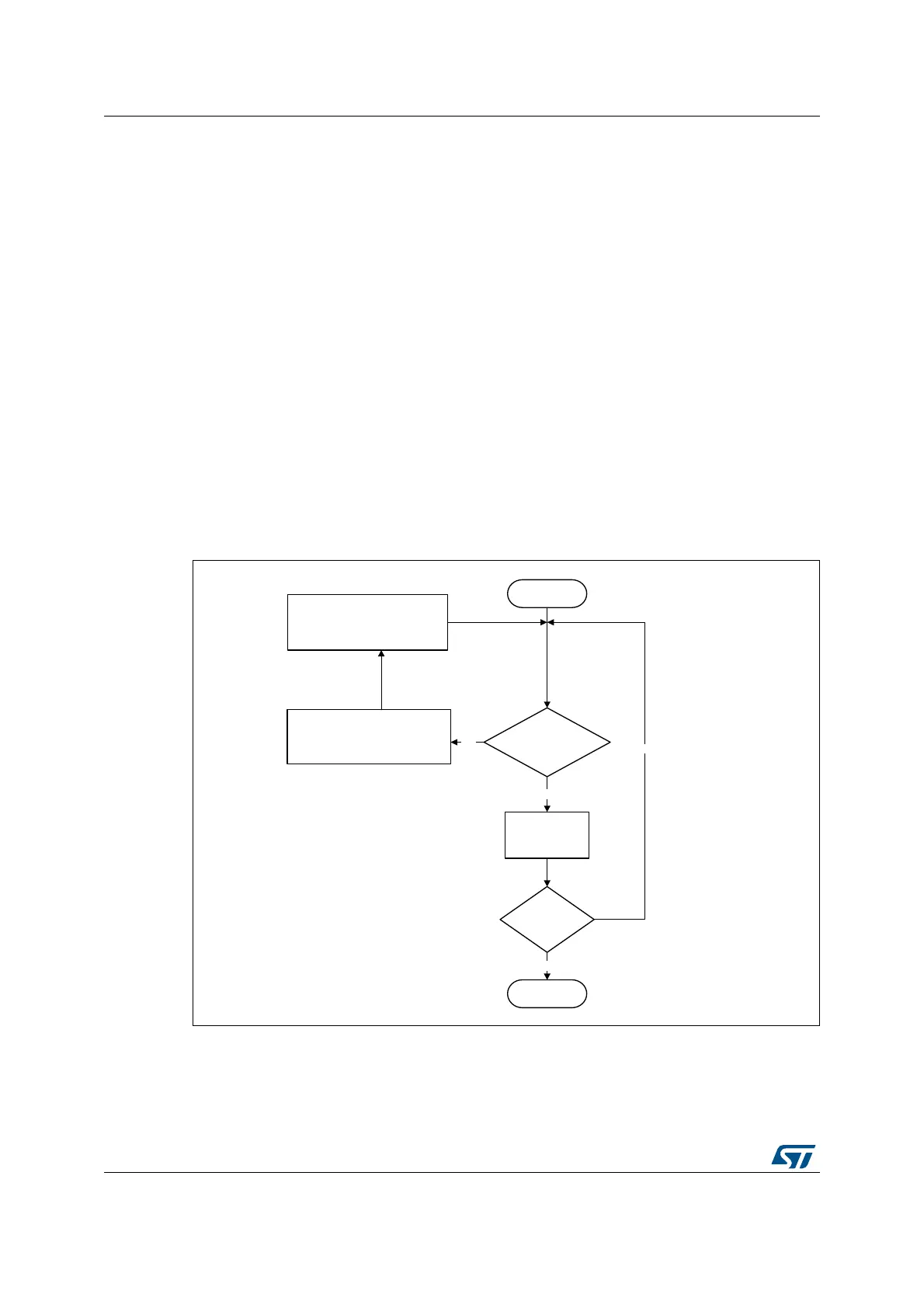

Figure 396. Transmit FIFO write task
• Reading the receive FIFO
MPS: Maximum packet size
Start
ai15673b
Wait for NPTXFE/PTXFE
interrupt in
OTG_FS_GINTSTS
Read GNPTXSTS/HPTXFSIZ
registers for available FIFO
and queue spaces
1 MPS or
LPS FIFO space
available?
Write 1 packet
data to
transmit FIFO
More packets
to send?
Done
No
No
Ye s
Ye s
LPS: Last packet size
