RM0090 Rev 18 1537/1749
RM0090 USB on-the-go high-speed (OTG_HS)
1543
Once the MAC receives an IN token, this information (token received) is synchronized to the
AHB clock by the PFC (the PFC runs on the AHB clock). The PFC then reads the data from
the SPRAM and writes them into the dual clock source buffer. The MAC then reads the data
out of the source buffer (4 deep).
If the AHB is running at a higher frequency than the PHY, the application can use a smaller
value for TRDT (in OTG_HS_GUSBCFG).
Figure 429 has the following signals:
• tkn_rcvd: Token received information from MAC to PFC
• dynced_tkn_rcvd: Doubled sync tkn_rcvd, from PCLK to HCLK domain
• spr_read: Read to SPRAM
• spr_addr: Address to SPRAM
• spr_rdata: Read data from SPRAM
• srcbuf_push: Push to the source buffer
• srcbuf_rdata: Read data from the source buffer. Data seen by MAC
Refer to Table 213: TRDT values for the values of TRDT versus AHB clock frequency.

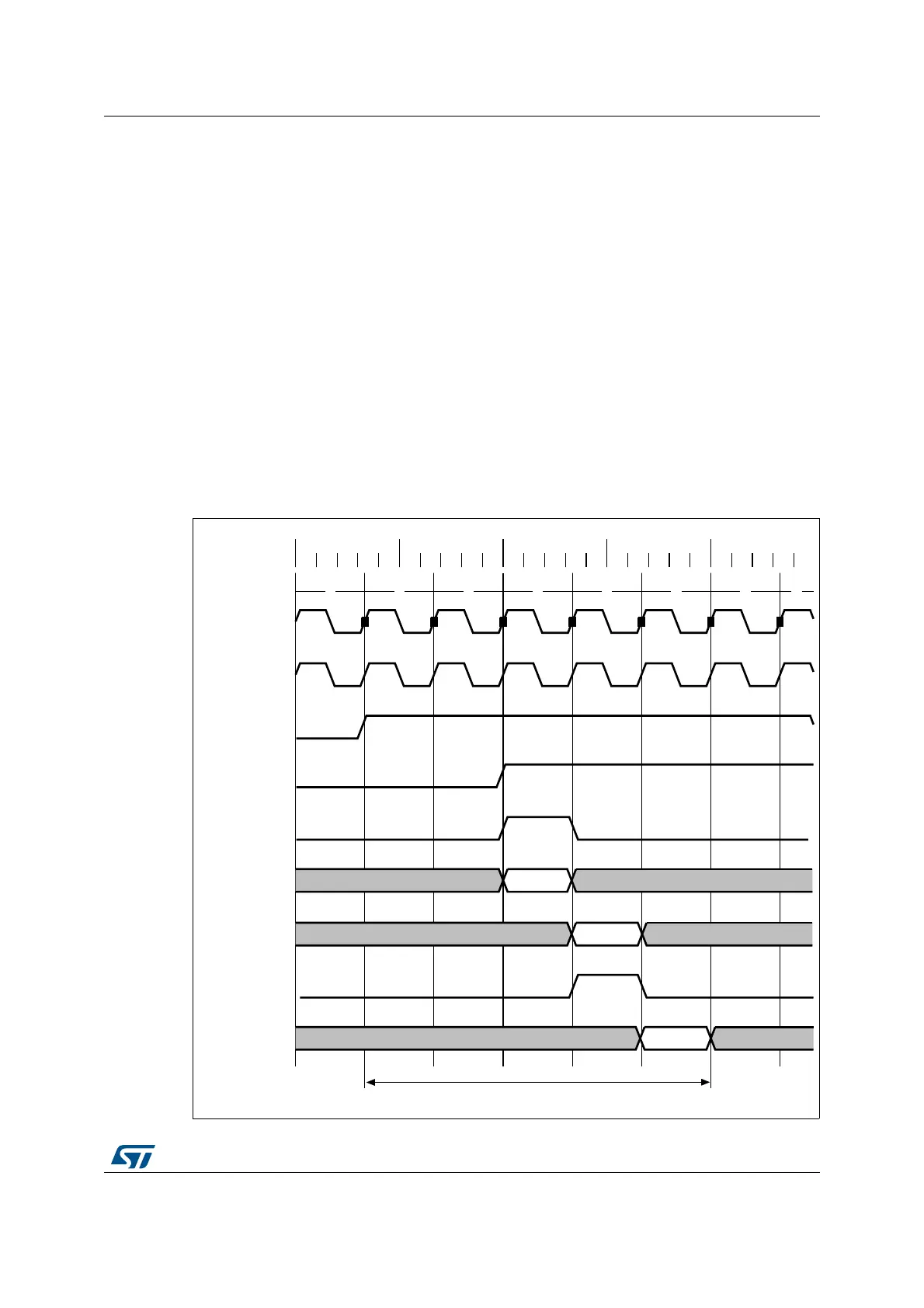

Figure 429. TRDT max timing case
12345678
0ns 50ns 100ns 150ns 200ns
HCLK
PCLK
tkn_rcvd
dsynced_tkn_rcvd
spr_read
spr_addr
spr_rdata
srcbuf_push
srcbuf_rdata
5 Clocks
D1
A1
D1
ai15680
