RM0090 Rev 18 621/1749
RM0090 General-purpose timers (TIM2 to TIM5)
649

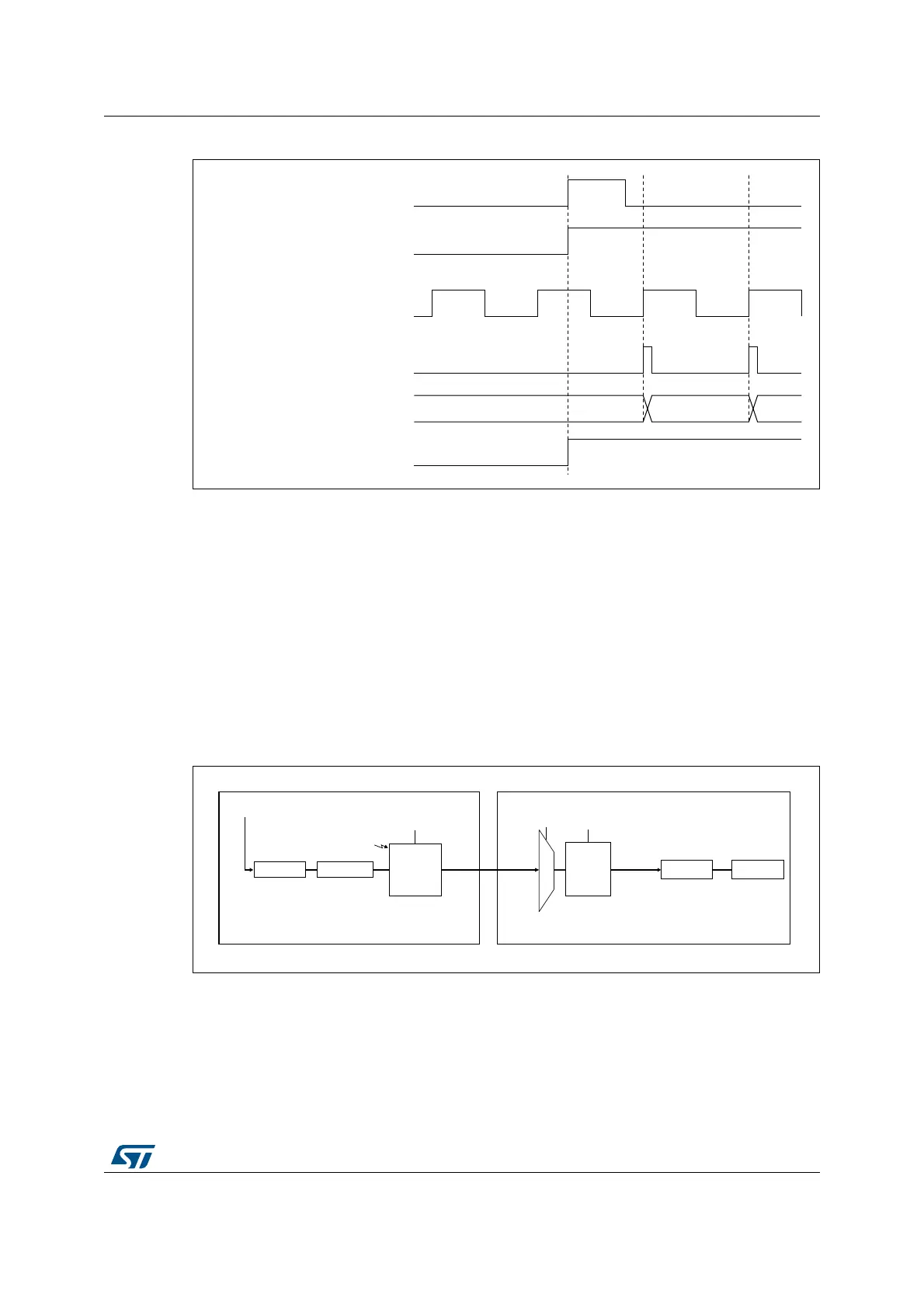

Figure 173. Control circuit in external clock mode 2 + trigger mode
18.3.15 Timer synchronization
The TIMx timers are linked together internally for timer synchronization or chaining. When
one Timer is configured in Master Mode, it can reset, start, stop or clock the counter of
another Timer configured in Slave Mode.
Figure 174 presents an overview of the trigger selection and the master mode selection
blocks.
Note: The clock of the slave timer must be enabled prior to receiving events from the master timer,
and must not be changed on-the-fly while triggers are received from the master timer.
Using one timer as prescaler for another timer
Figure 174. Master/Slave timer example
MS33110V1
34 35 36
TIF
Counter register
Counter clock = CK_CNT = CK_PSC
ETR
CEN/CNT_EN
TI1
MS37387V1
Counter
Master
mode
control
UEV
Prescaler
Clock
CounterPrescaler
CK_PSCTRGO1
MMS SMS
TS
Input trigger
selection
TIM1 TIM2
Slave
mode
control
ITR0
