LCD-TFT controller (LTDC) RM0090
484/1749 RM0090 Rev 18

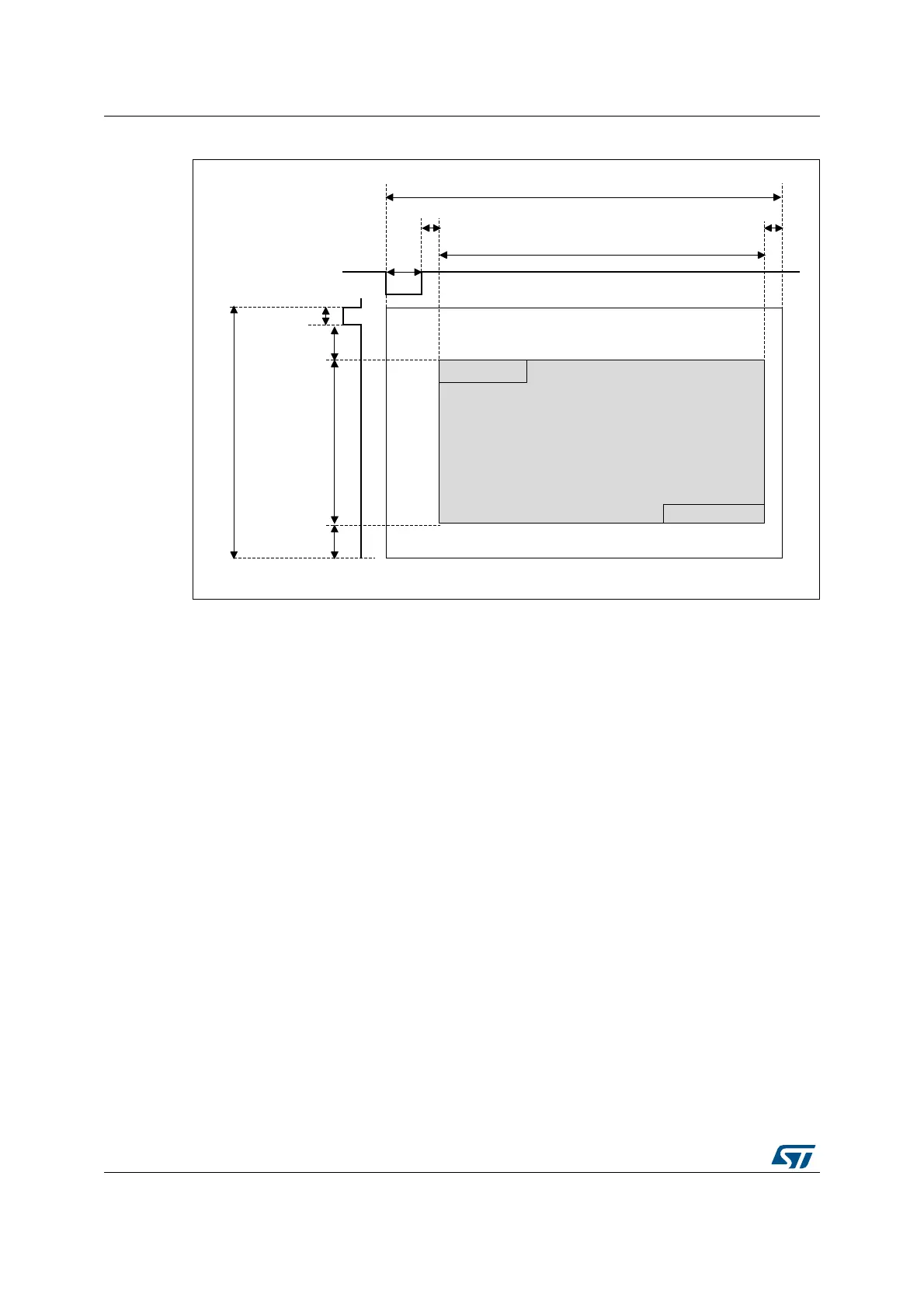

Figure 82. LCD-TFT Synchronous timings
Note: The HBP and HFP are respectively the Horizontal back porch and front porch period.
The VBP and the VFP are respectively the Vertical back porch and front porch period.
The LCD-TFT programmable synchronous timings are:
– HSYNC and VSYNC Width: Horizontal and Vertical Synchronization width
configured by programming a value of HSYNC Width - 1 and VSYNC Width - 1 in
the LTDC_SSCR register.
– HBP and VBP: Horizontal and Vertical Synchronization back porch width
configured by programming the accumulated value HSYNC Width + HBP - 1 and
the accumulated value VSYNC Width + VBP - 1 in the LTDC_BPCR register.
– Active Width and Active Height: The Active Width and Active Height are
configured by programming the accumulated value HSYNC Width + HBP +
Active Width - 1 and the accumulated value VSYNC Width + VBP + Active
Height - 1 in the LTDC_AWCR register (only up to 1024x768 is supported).
– Total Width: The Total width is configured by programming the accumulated value
HSYNC Width + HBP + Active Width + HFP - 1 in the LTDC_TWCR register. The
HFP is the Horizontal front porch period.
– Total Height: The Total Height is configured by programming the accumulated
value VSYNC Height + VBP + Active Height + VFP - 1 in the LTDC_TWCR
register. The VFP is the Vertical front porch period.
Note: When the LTDC is enabled, the timings generated start with X/Y=0/0 position as the first
horizontal synchronization pixel in the vertical synchronization area and following the back
porch, active data display area and the front porch.
MSv19674V1
Total width
Active width
HFPHBP
HSYNC
width
VSYNC width
VBP
VFP
Active height
Total height
Active display area
Data1, Line1
Data(n), Line(n)
