RM0090 Rev 18
1495/1749
RM0090
USB on-the-go high-speed (OTG_HS)
1543

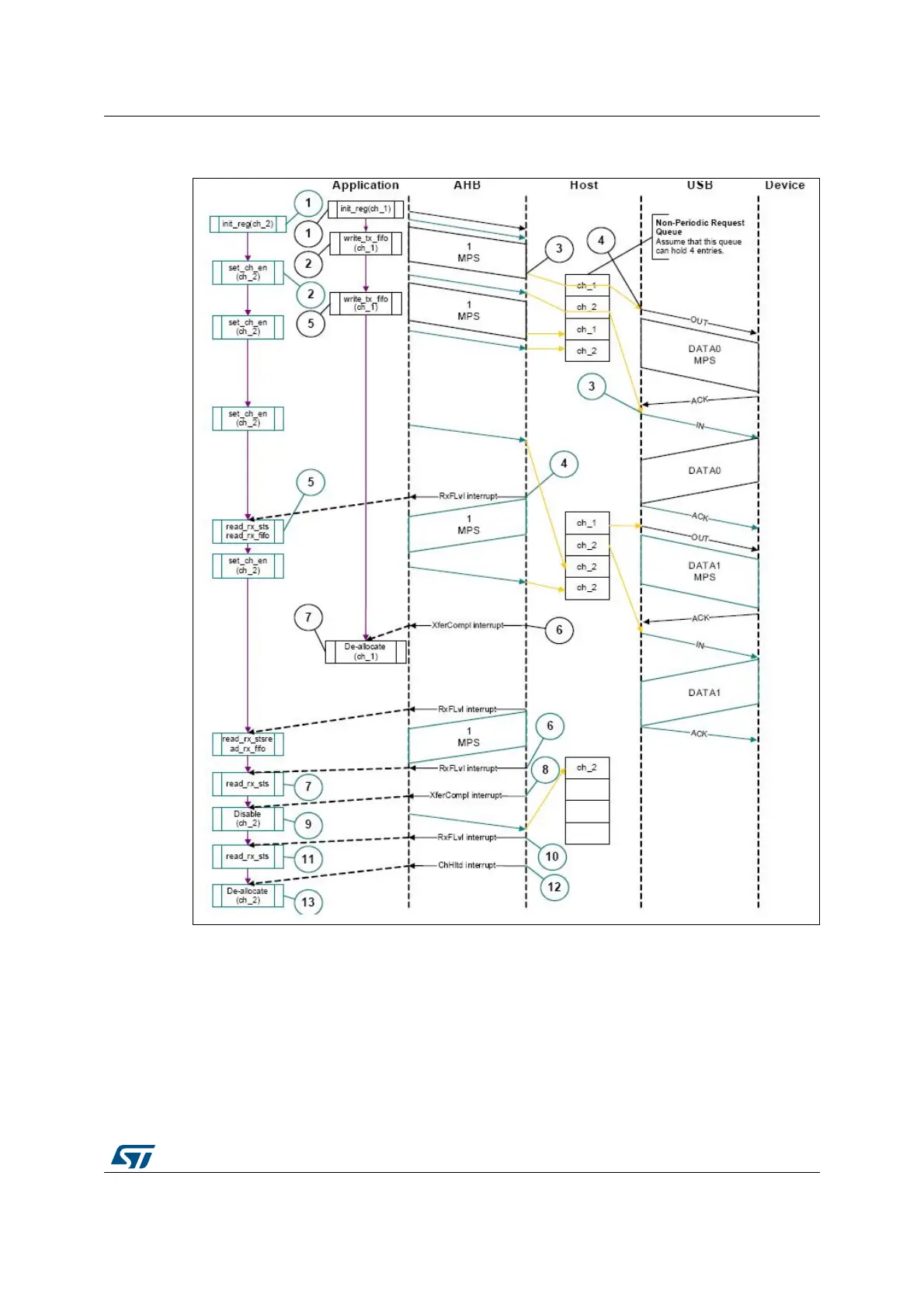

Figure 419. Normal bulk/control OUT/SETUP
and bulk/control IN transactions - Slave
mode
The channel-specific inter
rupt service
routine for bulk and co
ntrol OUT/SETUP
transactions in Slave mode is sh
own in the following code samples.
•
Interrupt service routin
e for bulk/control OUT/SETUP
and bulk/control IN
transactions
a) Bulk/Control
OUT/SETUP
Unmask (NAK/TXERR/STALL/XFRC)
if (
XFRC
)
{
Reset Error Count
1494
1496
