Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 18 P/N 57150002, Revision 5.0
F

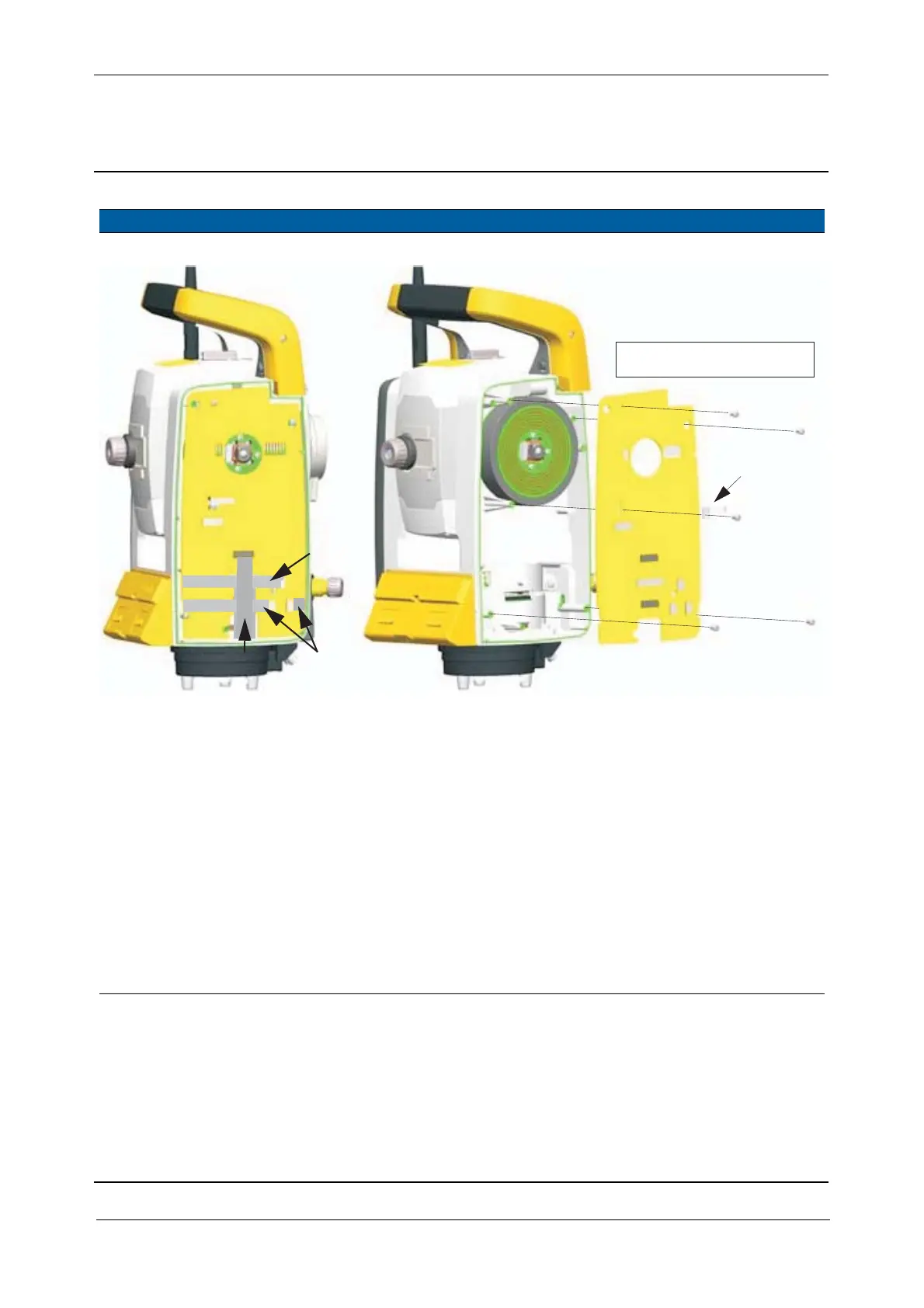

Fig. 5-19 IPC board replacement
4 Mount cables to IPC
board.
Mount the cable from:
A. Vertical motor
winding/angle board.
B. PSM board
C. Horizontal motor
winding / angle board
D. Accelerometers
E. Tilt sensor.
See Fig. 5-19 on page 5-18
.
5 Mount servo side
cover.
See page 5-15.
6 Update firmware. See page 6-31.
Item Performance Action Results Notes
Cables
D
A,B,C
100 Ncm / 8.8 lbfin
KNB board
contact spring
E
A&C
IPC board
To Next Page
