Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 119 Trimble S, VX, SPS & RTS Service Manual
F

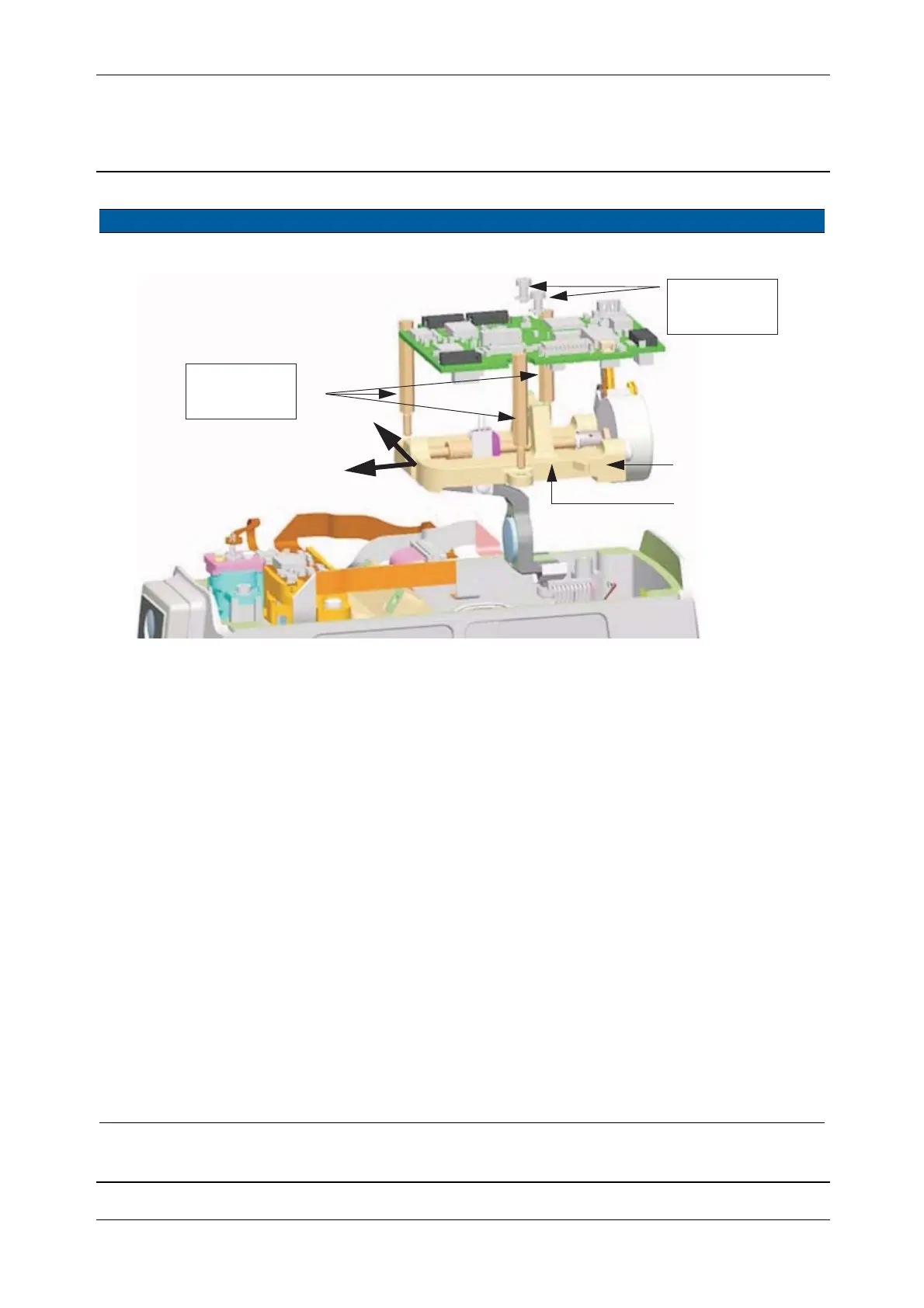

Fig. 5-114 Servo Focus Drive
6 If necessary clean and
regrease Servo Focus
drive.
7 Insert new or cleaned
Servo Focus drive.
A. Mount servo focus
drive.
B. Mount and tighten the
three hexagon bolts
under permanent press
of the Servo focus
drive towards the
battery and the tracker
receiver side, see Fig.
5-114 on page 5-119
8 Mount SFC board. A. Mount the SFC board.
B. Fix the two screws.
C. Connect all cables to
SFC board.
see Fig. 5-113 on page 5-
118 .
Fix the board
centred to the
two screw holes.
9 Mount OTA and OTC
board and tracker
transmitter board.
A. Mount OTA board.
B. Mount OTC board.
See Fig. 5-112 on page 5-
117 .
Item Performance Action Result Notes
B
A
Servo focus
Press
drive
25 Ncm /
2.21 lbfin
30 Ncm /
2.65 lbfin
To Next Page
