Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 54 P/N 57150002, Revision 5.0
F

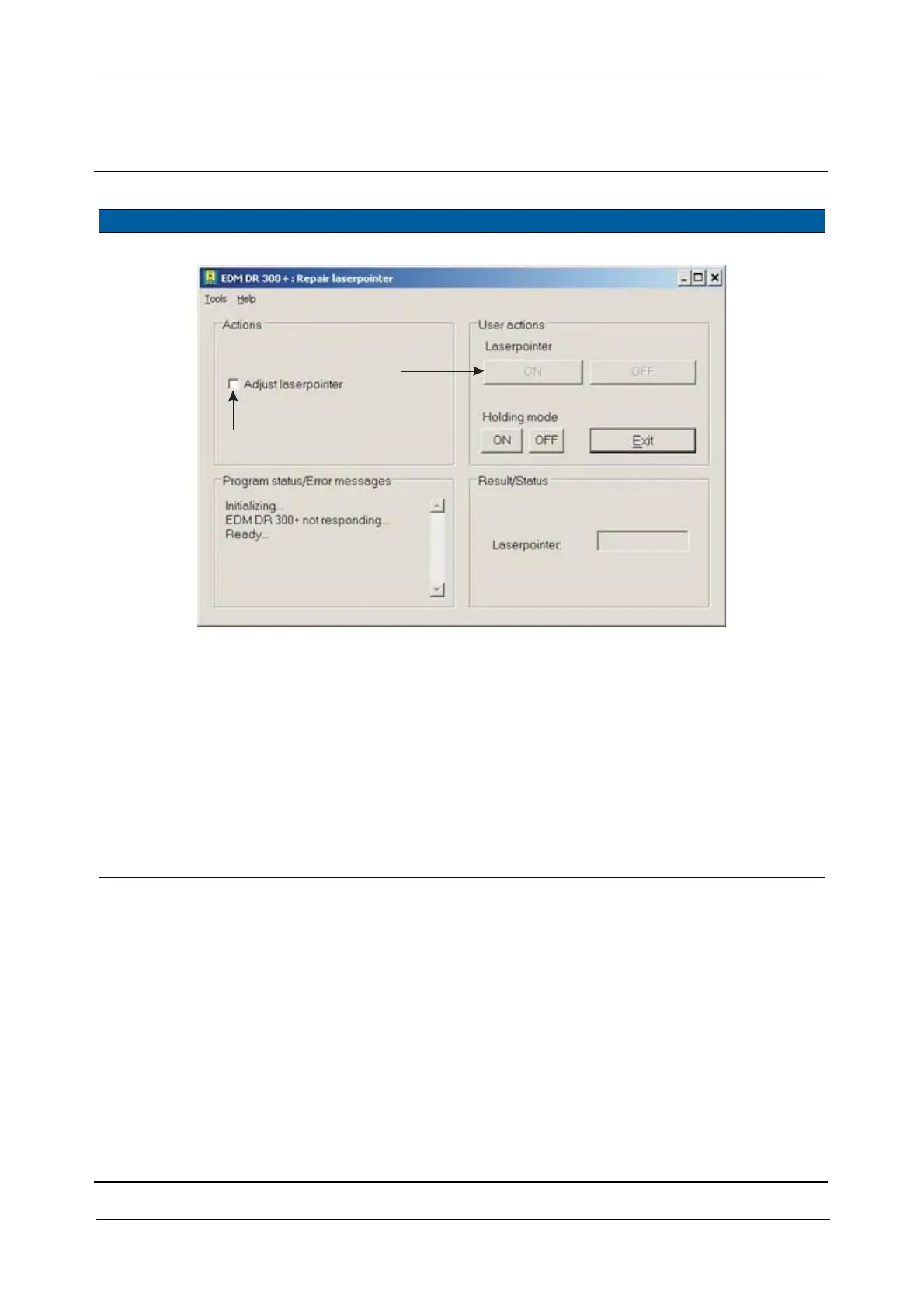

Fig. 6-46 Dialogue Pointer
5 Position transmitter
beam (laser pointer) to
transmitter prism.
A.Loosen the three screws
which are holding the
EDM frame.
B.Position the beam spot
by moving the EDM
frame.
C.Tighten the three
screws.
70 Ncm.
The spot is po-
sitioned how
the picture is
showingSee
Fig. 6-48 on
page 6-55
Note – If the EDM
frame is moved the
transmitter and
receiver fibres needs
to be adjustedSee
page 6-60
Note – When moving
the EDM frame attend
that the Greywedge
disk does not touch
the light barrier
Item Performance Description Result Notes
B
C
