Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 57 Trimble S, VX, SPS & RTS Service Manual
F
8 Align transmitter
beam (laser pointer) at
close range 30m.
A.Aim to a 30 meter tar-
get.
B.Adjust the spot to the
target with the vertical
and horizontal adjust-
ment screws,See Fig. 6-
52 on page 6-58 .
Deviation from
centre <10“
(1/2 of double
lines on instru-
ments cross-
hair).
Tool:
Target S6 Tx adj.
59002026

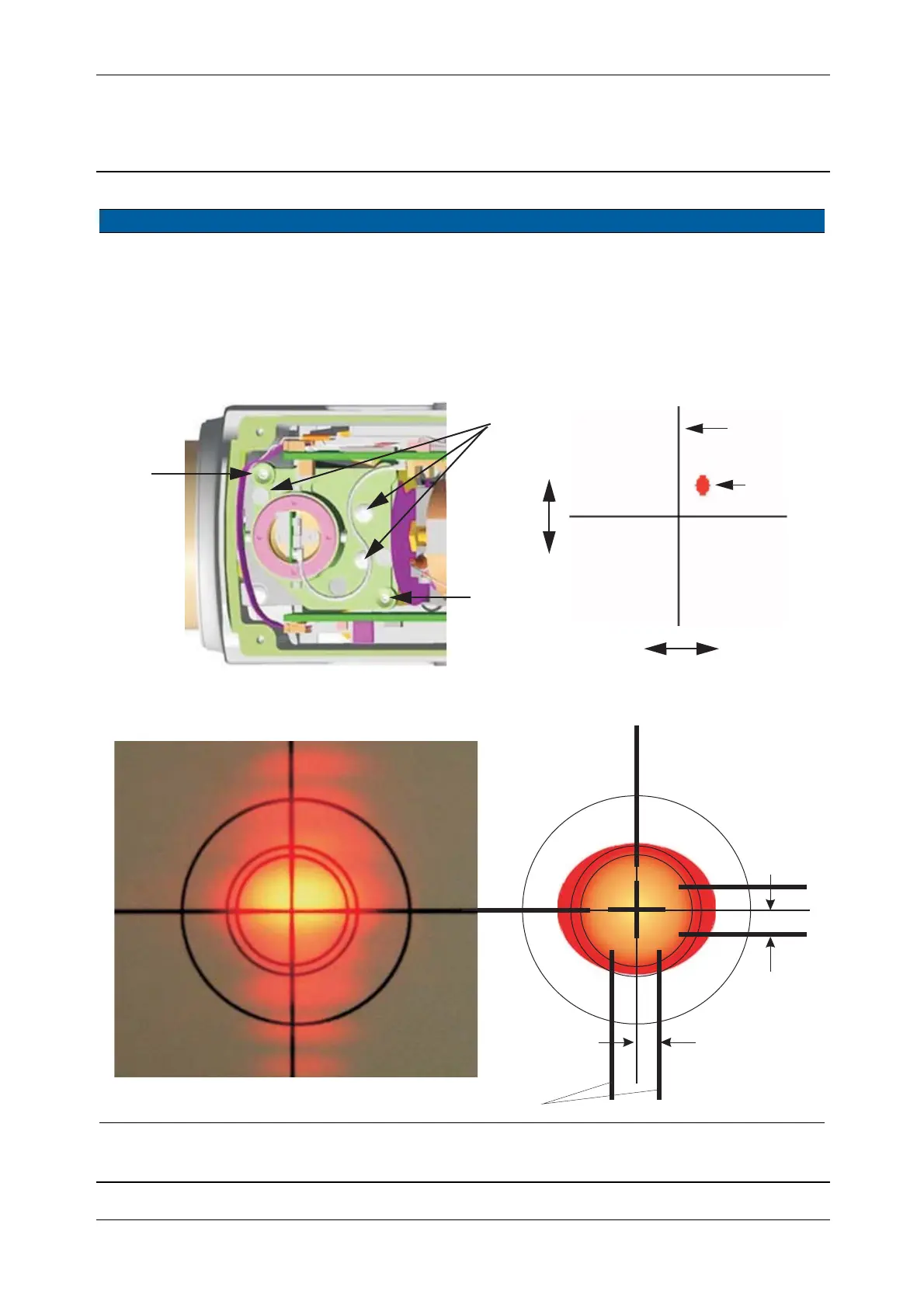

Fig. 6-50 Laser pointer adjustment
Fig. 6-51 Correct aligned Laser spot and the generalized spot in 30 m distance
Item Performance Description Result Notes
A
B
Target
Laser
A
B
spot
Do not touch
Tracker transmitter
cross-hair double lines
tolerance half
of double lines
