Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 74 P/N 57150002, Revision 5.0
F

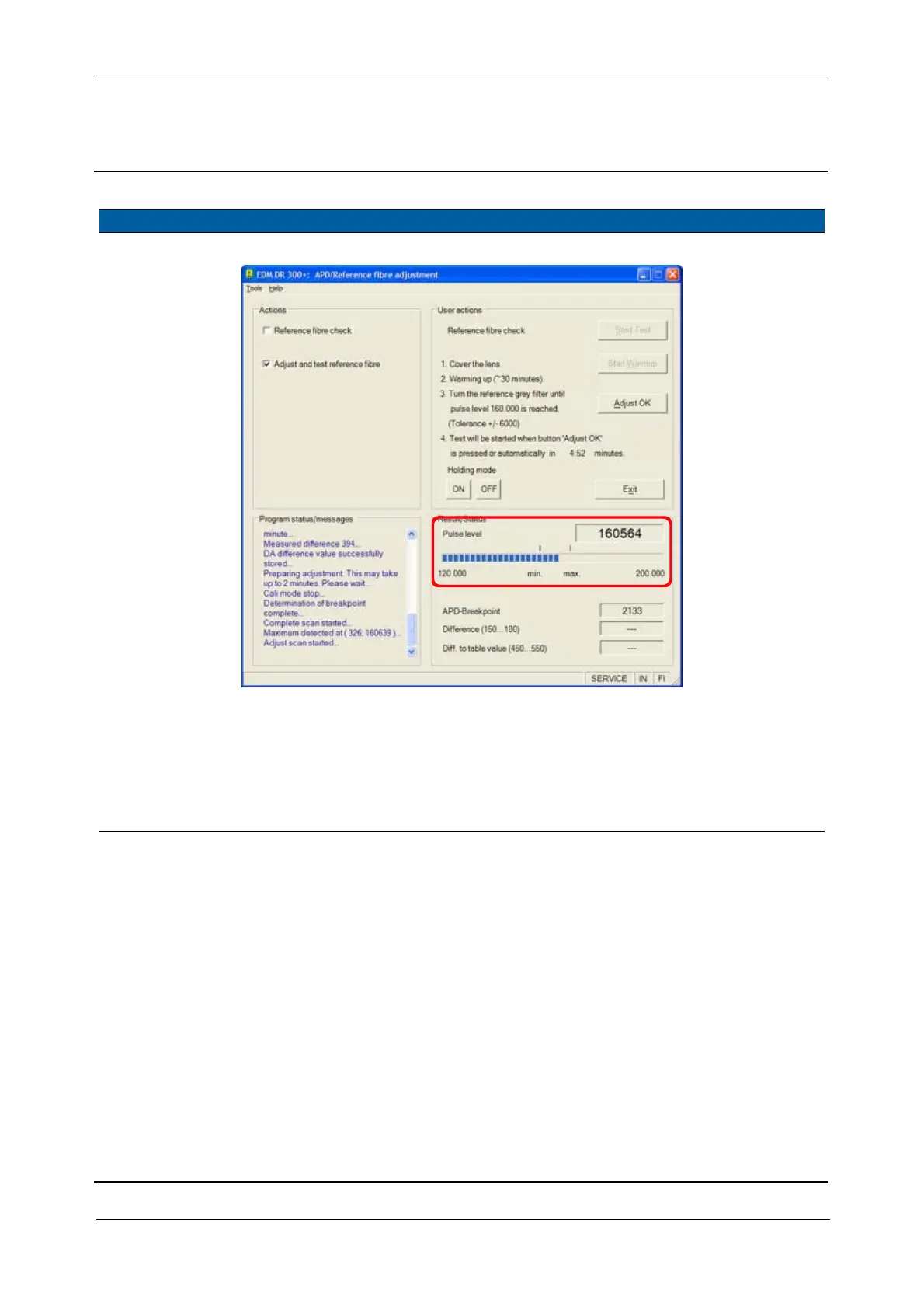

Fig. 6-79 Reference fibre signal adjustment
6 Verify receiver diode
(APD) amplification.
The test will
automatically follow after
click on
Adjust OK button.
Difference: 150
- 180
Diff. to table
value: 450 -
550, Fig. 6-80
on page 6-75.
The test is running 2
minutes. If out of
tolerance readjust the
reference fibre, see
page 6-72.
