Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 92 P/N 57150002, Revision 5.0
F

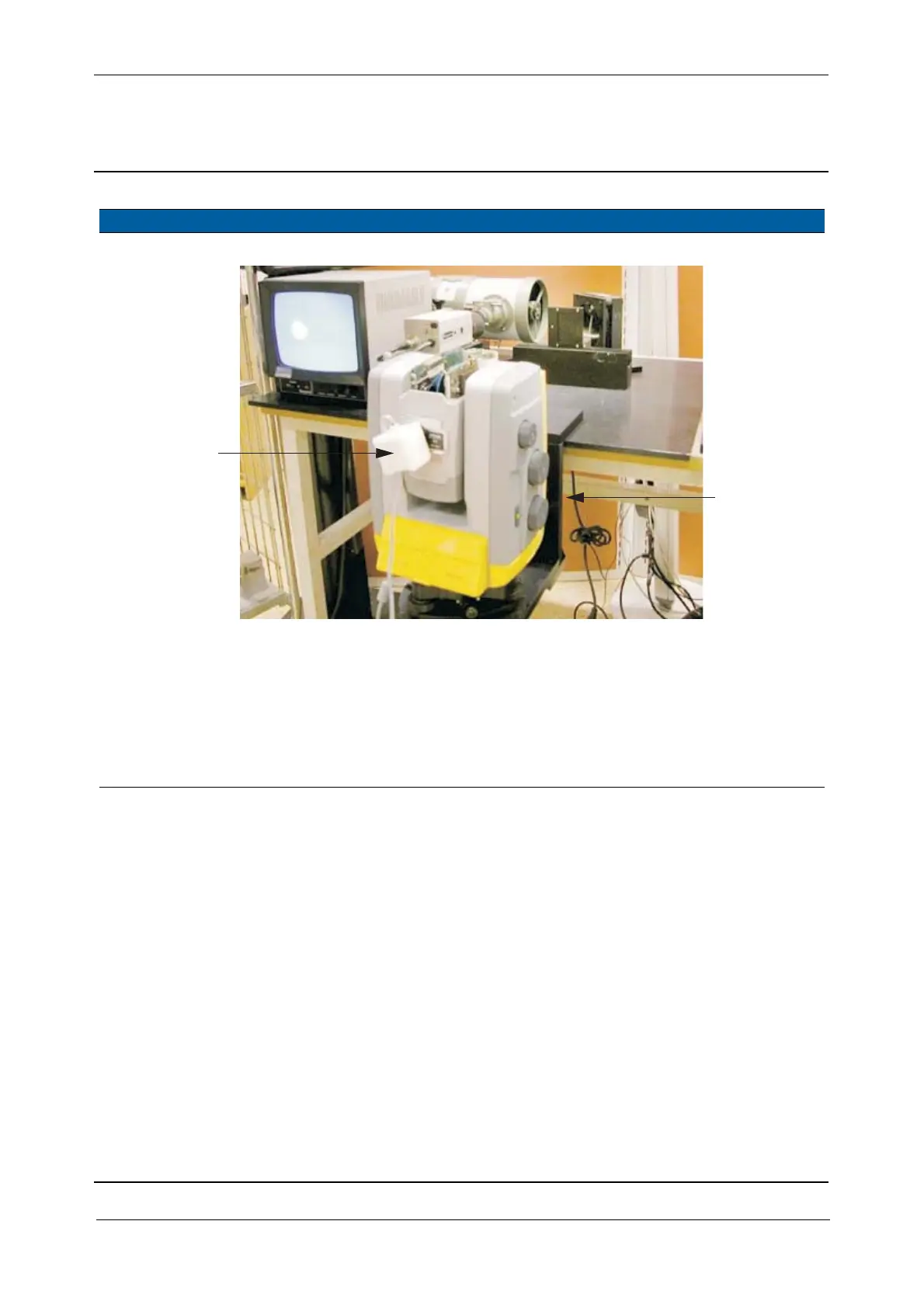

Fig. 6-100 Set-up for GDM collimator
2 Start service software. A. Select
Optical fibre
adjustment
from EDM
High Precision
in
Maintenance & Service.
B. Select
Switch
transmitter ON/OFF
check box.
C. Click Transmitter
ON.
The laser spot is
visible on the
monitor.
Item Performance Description Result Notes
Reticle
illumination
Instrument
holder
C
B
