Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 104 P/N 57150002, Revision 5.0
F

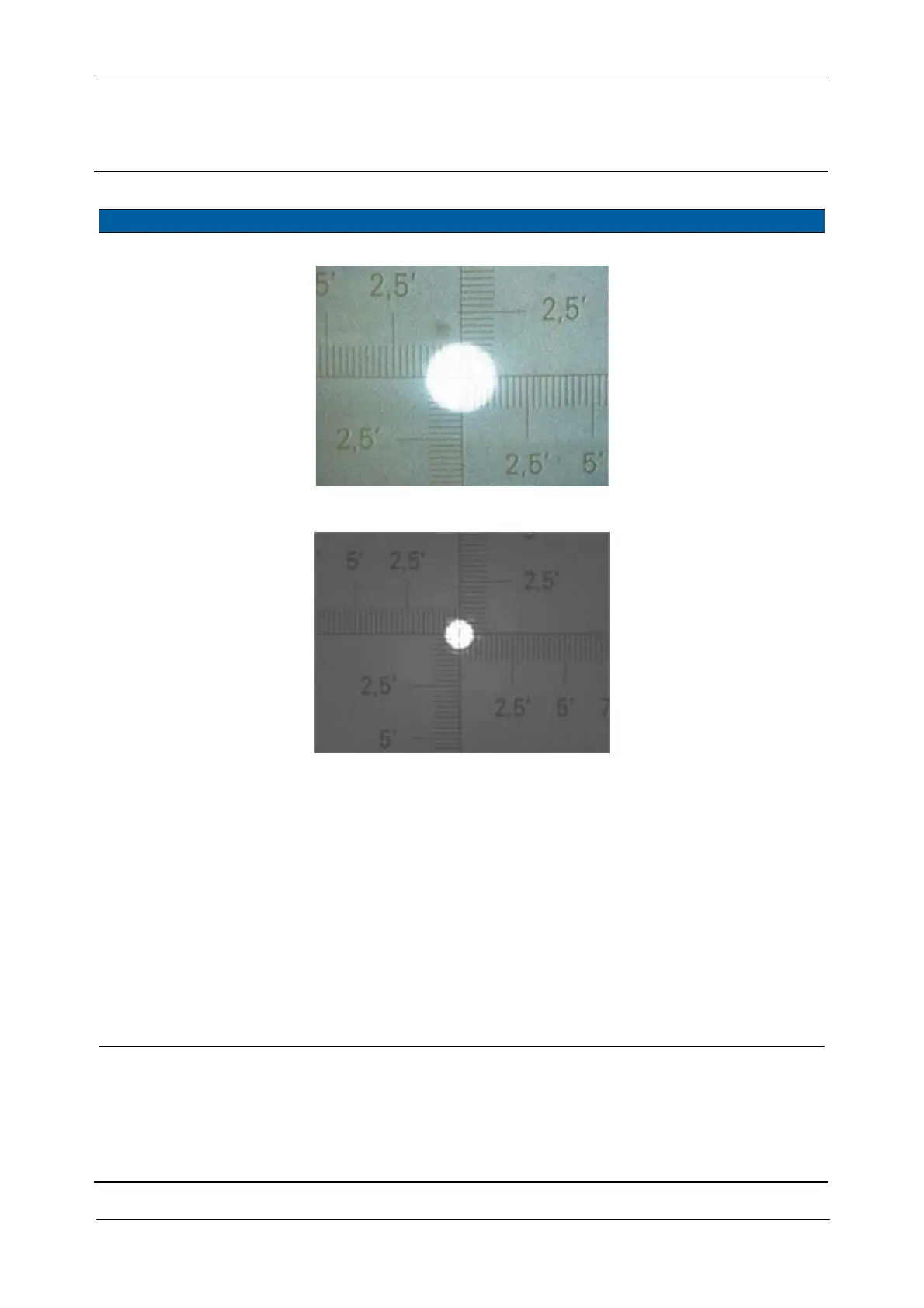

Fig. 6-115 Receiver fibre High Precision / DR Standard
Fig. 6-116 Receiver fibre DR
16 Align receiver fibre
position.
A. Turn the two position
screws counter-
clockwise, until the
fibre is unaligned.
B. Turn the two position
screws clockwise until
the fibre is aligned, see
Fig. 6-115 on page 6-
104 .
C. Knock slightly on the
ferule holder to
remove tensions.
D. Verify alignment and
lock alignment screws
with Glue MS 1855.
Within 1
graduation on
the collimators
cross-hairs.
1.5 mm angled hex
driver without handle.
Item Performance Description Result Notes
