Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 107 Trimble S, VX, SPS & RTS Service Manual
F
Fig. 6-120 Adjustment reference fibre DR
4 Focus receiver fibre
position to APD.
A. Remove the fibre from
the fibre bender,see
Fig. 6-123 on page 6-
109 .
B. Loosen the clamp

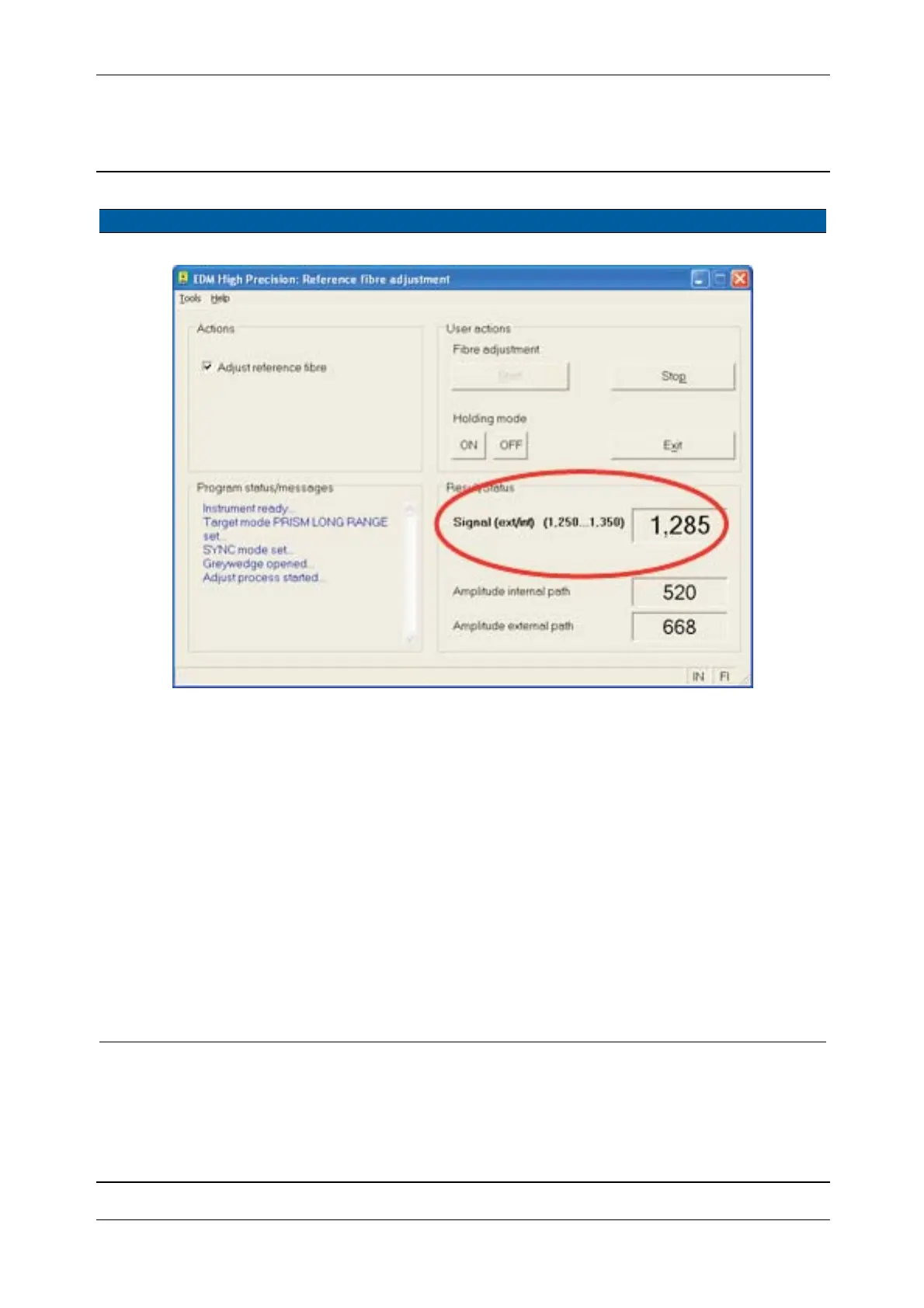

screw.
C. Move in and out the
ferule to maximize the
ratio Signal (ext/int),
see Fig. 6-119 on page
6-106 .
D. Tighten the clamp
screw.
E. Knock slightly on the
ferule holder to remove
tensions.
F. Mount back the fibre in
the fibre bender.
Note – Find the
maximum signal
only!
Tolerances is
for reference
signal
adjustment.
0.9 mm angled hex
driver without
handle.
