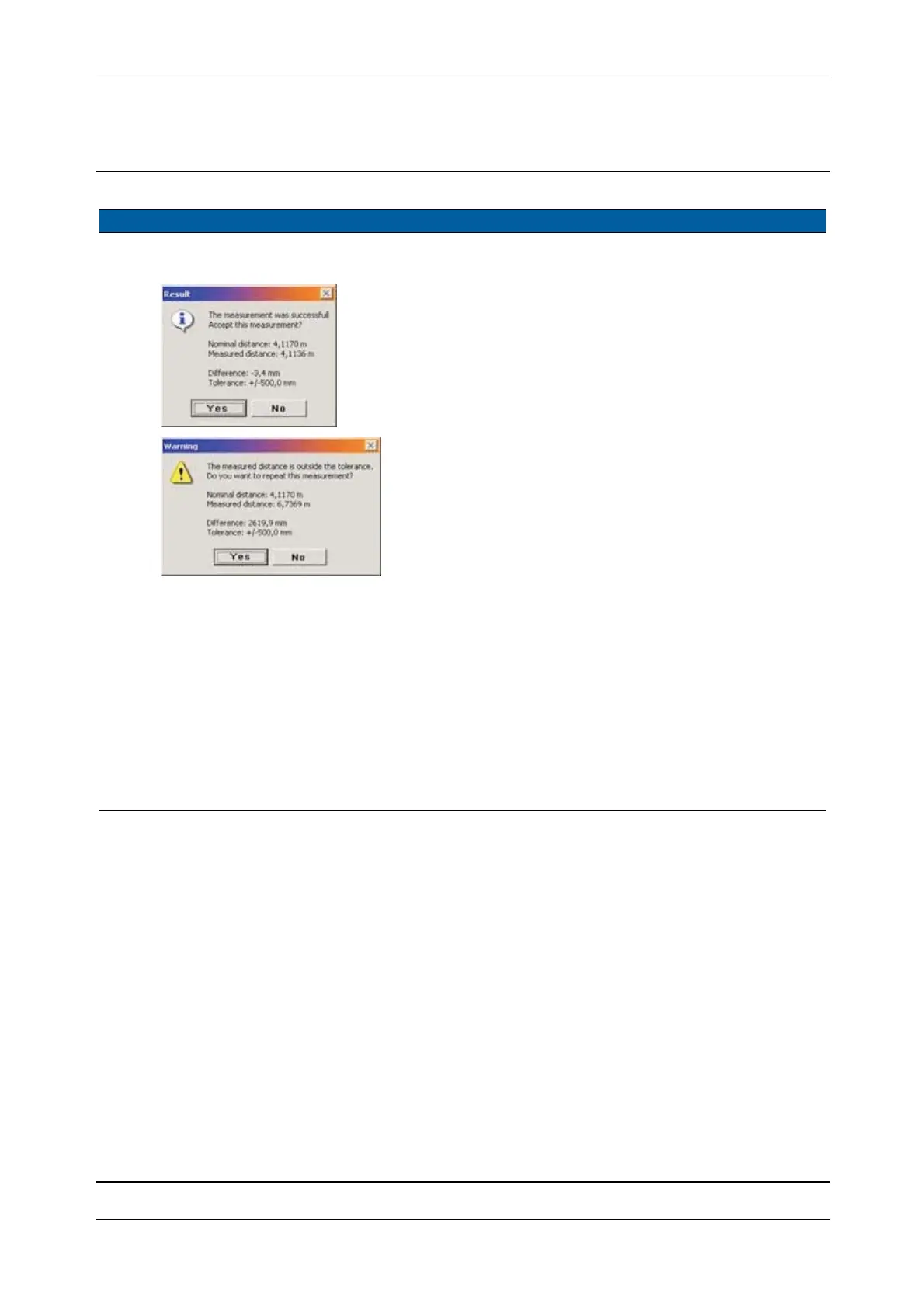

Fig. 6-138 Possible messages after measurement is done
8 Check measurements. The yellow highlighted
lines in the list, see Fig. 6-
92 on page 6-83 are
representing baselines for
check measurements.
After the last
measurement the
offset values are
displayed.
9 Completion After successful
completion the check
measurements, only, the
offset values will be saved
in the Instrument
Item Performance Description Result Notes
If the measured distance is within tolerances,
the measurement can be completed,
If not, click and the measurement can be
repeated
, the measurement may be repeated.
, the measurement will be marked as failed in the
status column. It will not be included in the offset
calculation when enough bas elines are available
Ye s
No
Ye s
No
