Trimble S - Page 497

Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 161 Trimble S, VX, SPS & RTS Service Manual
F

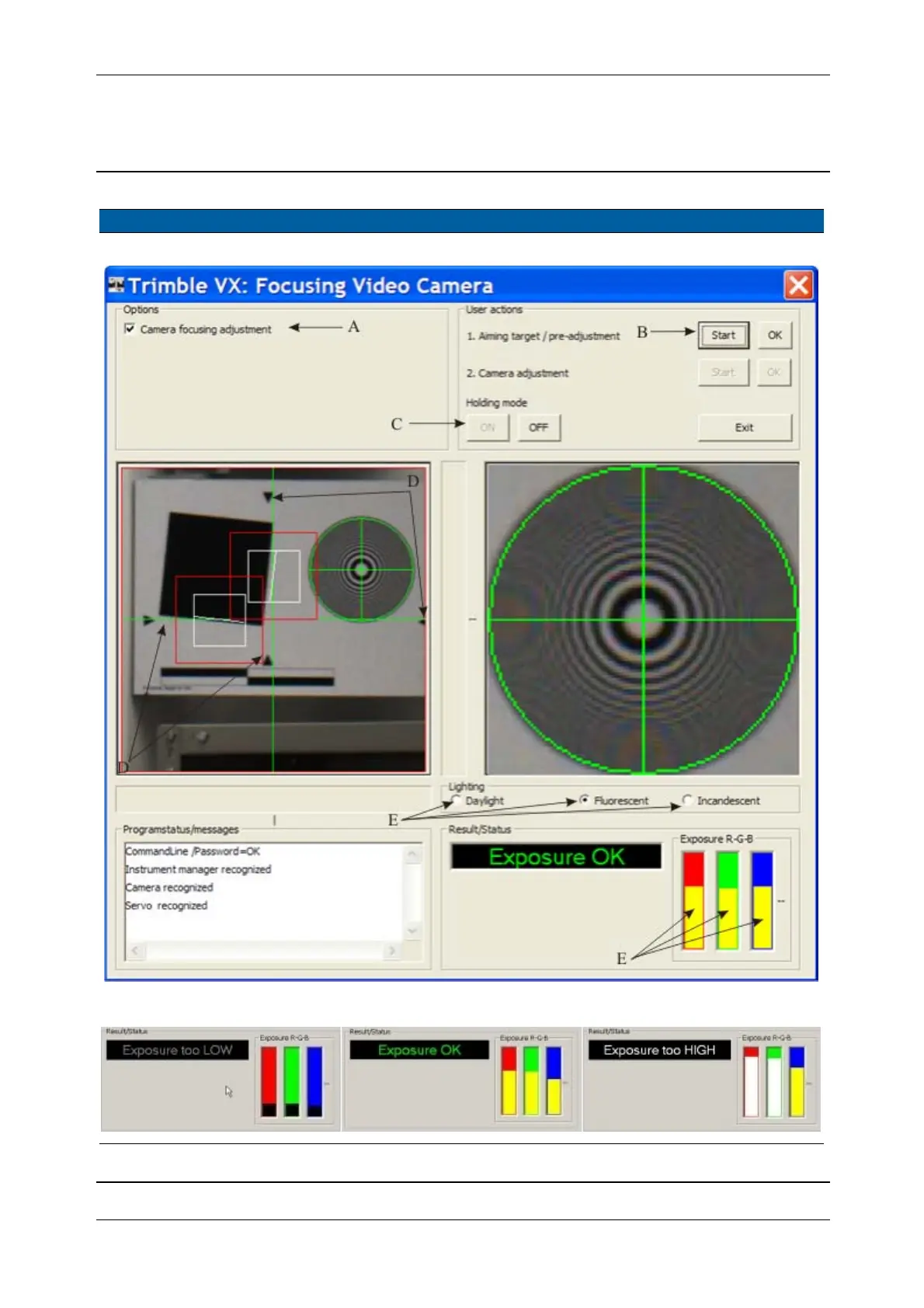

Fig. 6-172 Focusing of Video-camera pre-adjustment.
Fig. 6-173 Auto-Exposure setting (Exposure to LOW, Exposure OK, Exposure too HIGH).
Item Performance Action Result Notes
