Trimble S User Manual

Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 162 P/N 57150002, Revision 5.0
F
6 Pre-adjustment of
Video-camera.
A. Turn the
adjustable focus
nut
using a 11mm
wrench.
B. Fix the lens
position with a 12
mm wrench.
C. Click
OK button
after pre-focusing is
completed, see Fig.
6-172 on page 6-
161 .
The concentric
rings on the right
side have to be
visible and sharp
edges are
indicating a good
pre-adjustment.
The Start button
for
Camera
adjustment
is
active.
Tools:
Wrench 11 mm with a
width of max. 3,5 mm.
Wrench 12 mm.

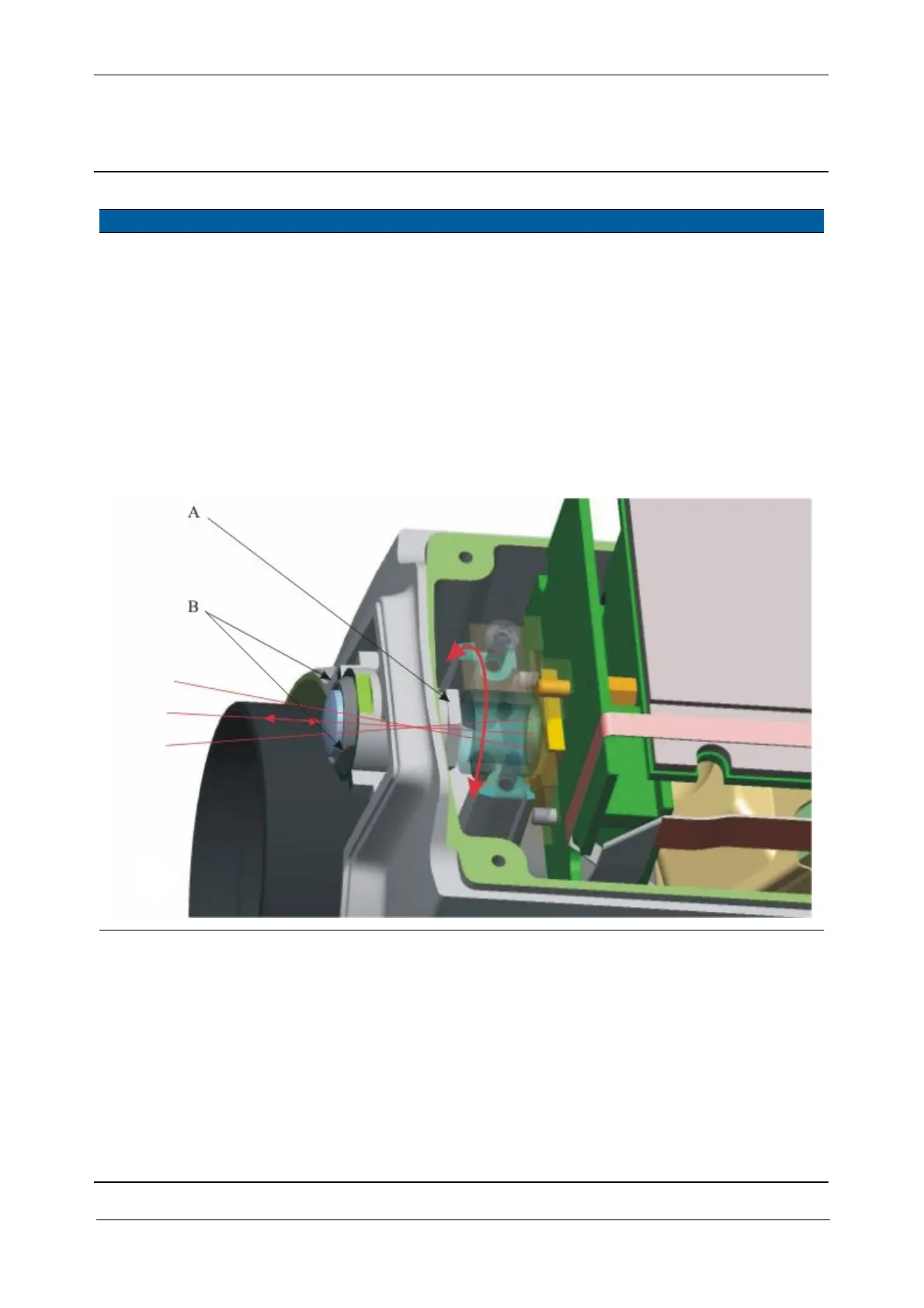

Fig. 6-174 Focusing video camera front lens.
