User's Manual 12. Network Connections

Version 4.4.0 167 MP26x/MP27x

4. Select the External Cable Modem option, and then click Next.

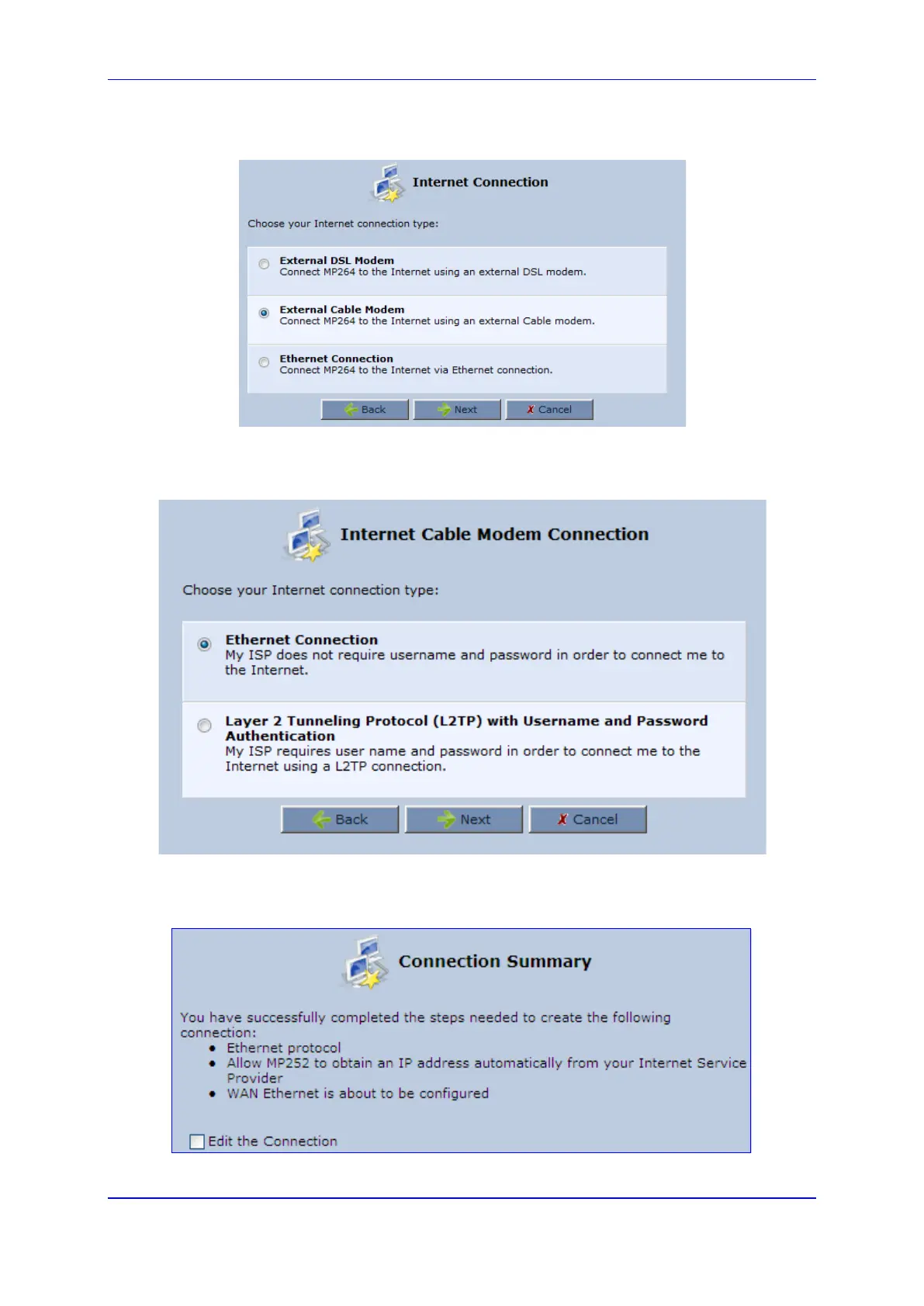

Figure 12-22: Internet Connection – External Cable Modem

The ‘Internet Cable Modem Connection' screen appears.

Figure 12-23: Internet Cable Modem Connection - Ethernet

5. Select the Ethernet Connection option; the 'Connection Summary' screen appears.

Figure 12-24: Ethernet Connection Summary
