MP-26x/MP-27x Multimedia Home Gateway

17.3.2.2 Microsoft Shared Printing (Samba)

The procedure below describes how to set up Microsoft Shared Printing (Samba).

 To set up Microsoft shared printing (Samba):

1. On your Mac computer connected to the device, open the 'Print & Fax' utility from

'System Preferences'; the 'Print & Fax' screen appears.

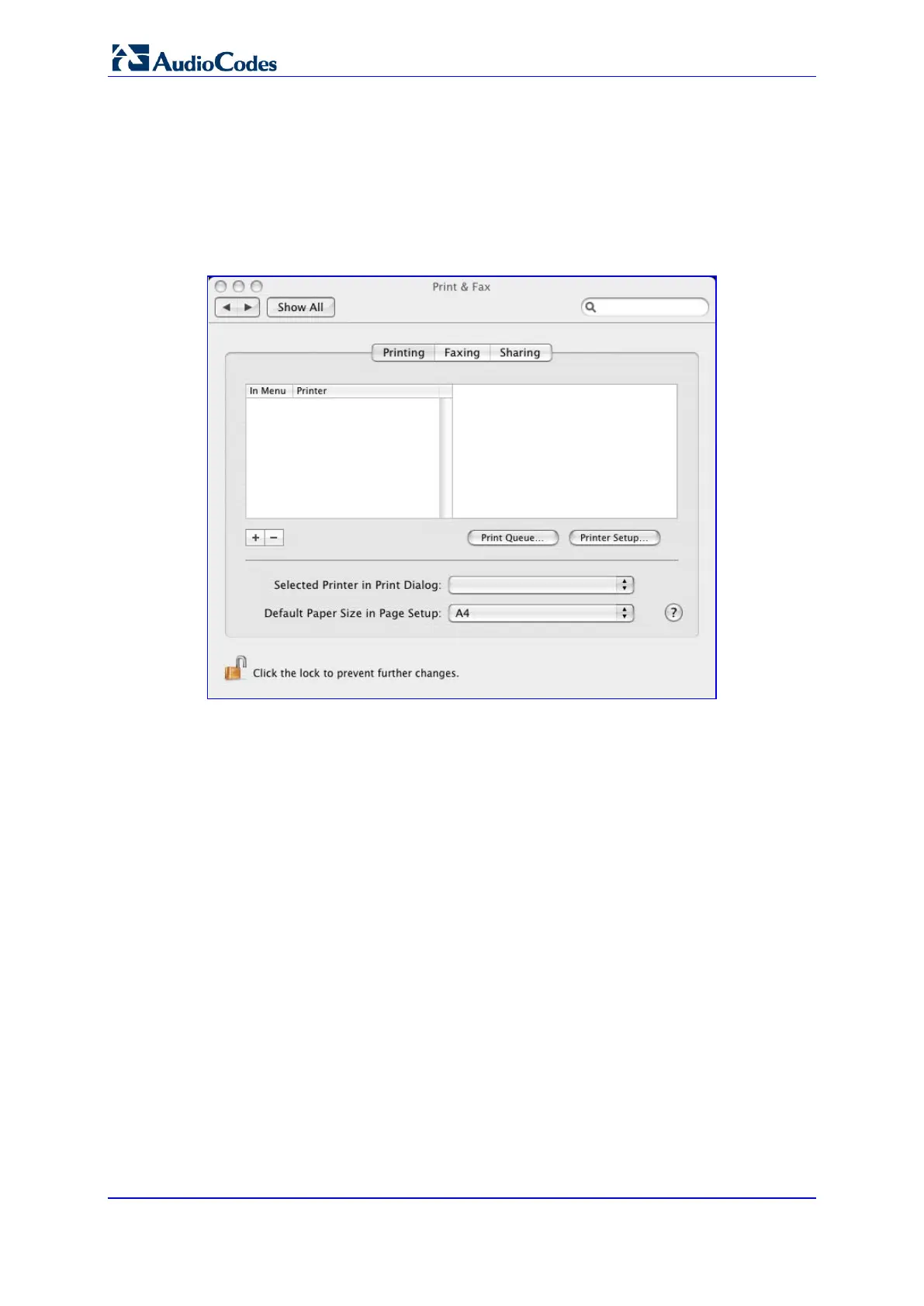

Figure 17-38: Print & Fax

Default Chapter3
