User's Manual 3. Hardware Description
Version 4.4.0 37 MP26x/MP27x
3.2 Cabling the Device
The procedure below describes the cabling of the device.
Warning:
• Use only the AC/DC power adapter supplied with the device. Do not
use any other power adapter.
• Ensure that the VAC ratings match.
• Ensure that you have read the device's Regulatory Information,
obtained from www.audiocodes.com/library.
Note: The cabling procedures for the device models are identical and therefore, no
distinction is made between the models in this section. However, for
convenience, this section uses the MP-264-DB model as an example.
The figure below displays a summary of the cabling procedures.

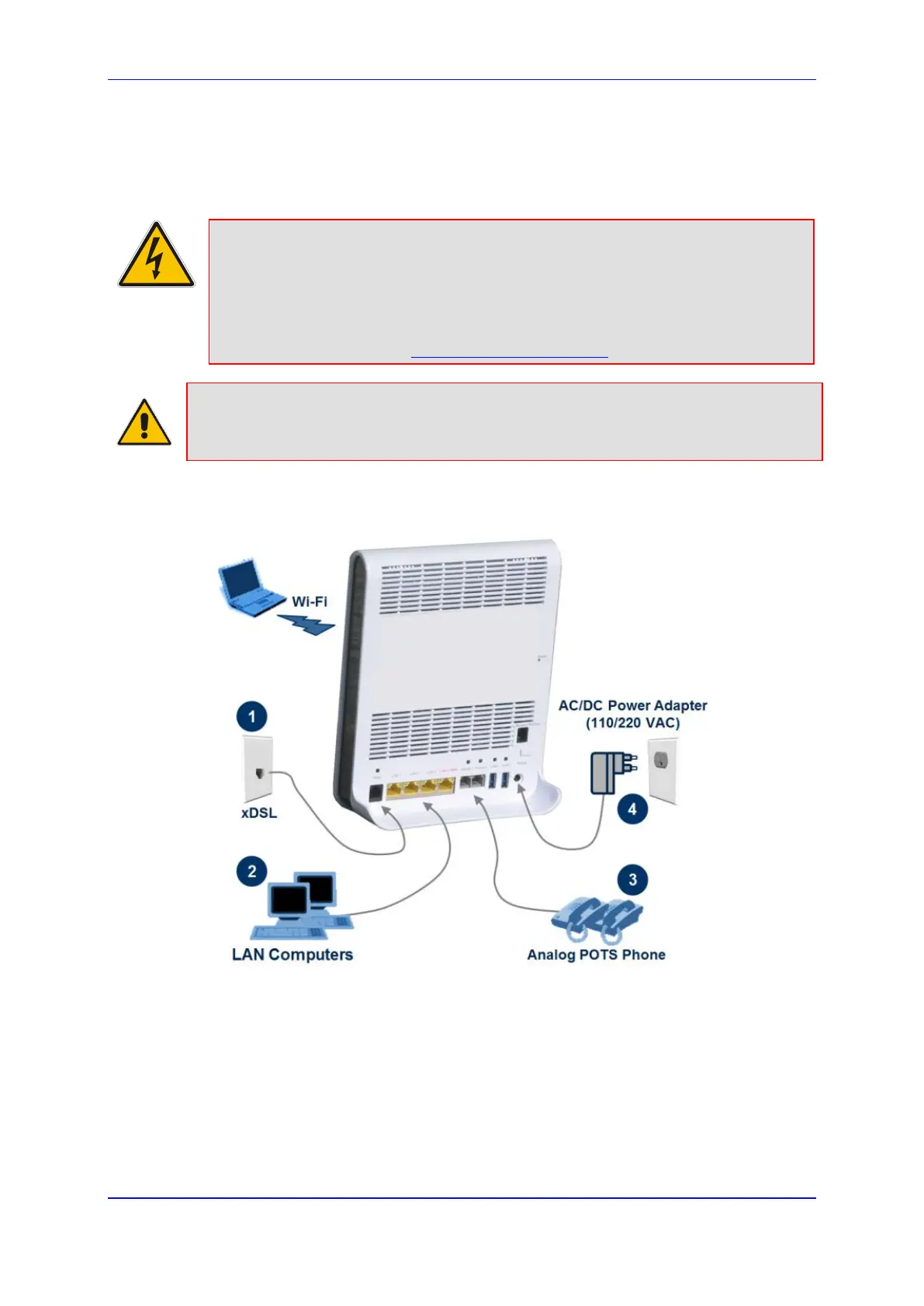

Figure 3-4: Cabling the Device (e.g., MP-264)
