User's Manual 46 Document #: LTRT-23510
MP-26x/MP-27x Multimedia Home Gateway
4.2.3 Configuring 3G USB Modem
The procedure below describes how to configure a WAN connection using a 3G cellular
modem. The 3G cellular modem is connected to the device’s physical port.
To configure a WAN connection using a 3G cellular modem:
1. In the Quick Setup page under the WAN 3G USB Modem group, select the required
connection type from the 'Connection Type' drop-down list.

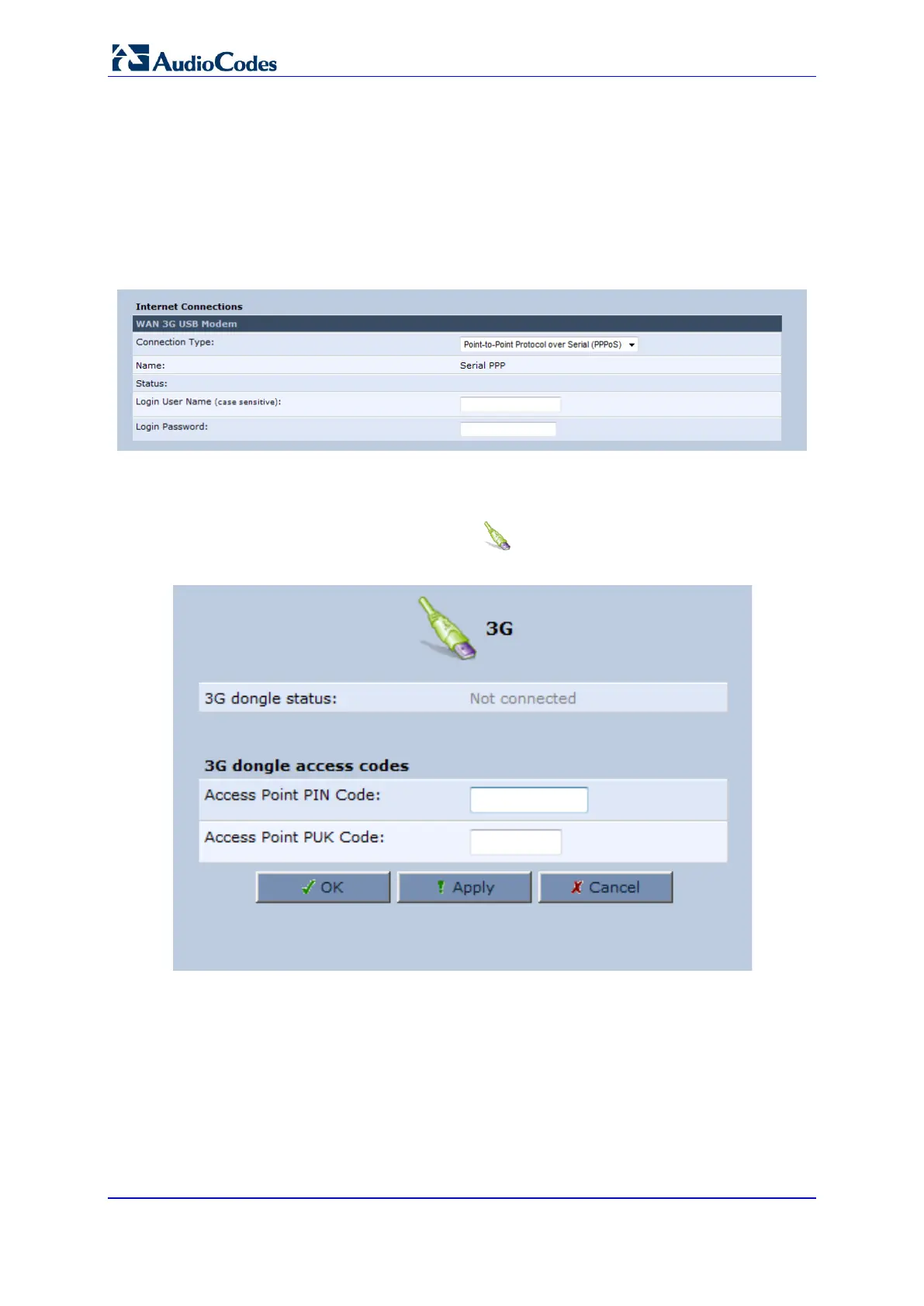

Figure 4-5: WAN 3G USB Modem
2. Enter your login user name and password.
3. Click OK.
4. In the 'Advanced' screen, click the 3G icon; the '3G' screen appears.
Figure 4-6: Advanced 3G Settings
5. In the ‘Access Point PIN Code’ field, enter the modem's personal identification number
(PIN), obtained from your Internet Service Provider.
6. In the Access Point PUK Code field, enter the SIM’s PIN Unlock Key obtained from
your Internet Service Provider.
7. Click OK.
