User's Manual 174 Document #: LTRT-23510
MP-26x/MP-27x Multimedia Home Gateway
12.1.2.5 Manual IP Address
The Manual IP Address feature is used to manually configure the networking IP addresses
when connecting to the Internet.
To manually configure the IP address:
1. In the 'Network Connections' screen, click the New icon; the 'Connection Wizard'
screen appears.
2. Select the Internet Connection option, and then click Next; the ‘Internet Connection’
screen appears.

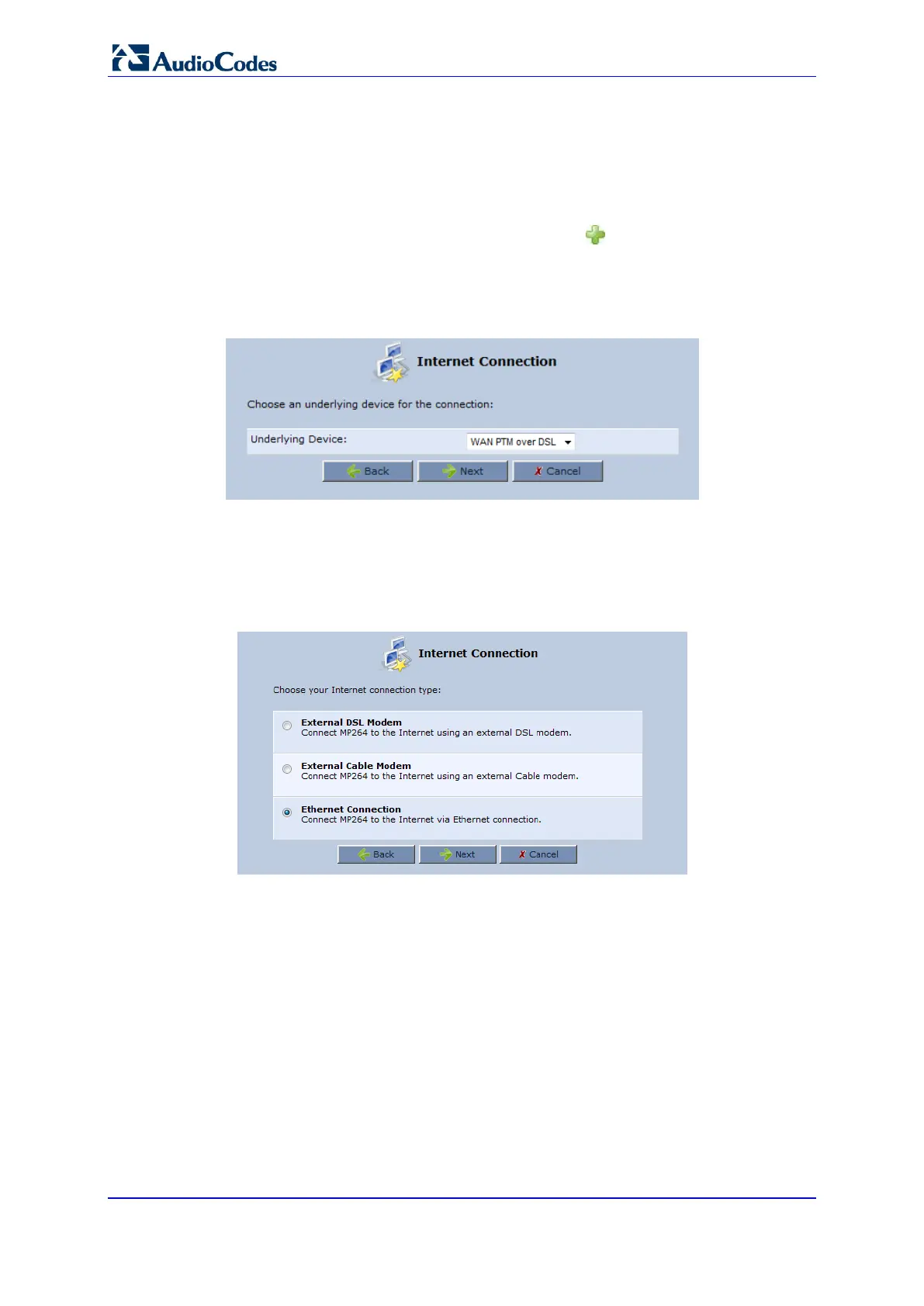

Figure 12-35: Internet Connection – Underlying Device
3. From the ‘Underlying Device’ drop-down menu, select the Underling Device, and then
click Next.
4. Select the Ethernet Connection option, and then click Next; the following screen
appears.
Figure 12-36: Internet Connection – Ethernet Connection (e.g., MP-264)
