3.3 Mounting the Device
You can place the device on a desktop or mount it on a wall. For desktop mounting, the
device provides integrated rubber feet on its base so that it sits firmly on a desktop.
Alternatively, you can hang your device on a wall, using the supplied device wall-mounting
bracket, as described in this section.
Wall mounting consists of the following main procedural stages:
Preparing the mounting screws on the wall
Hanging the mounting bracket on the wall
Attaching the device to the mounting bracket
Before you begin, ensure that you have the following items:
Wall-mounting bracket (supplied)
2 x screws
2 x wall anchors
Screwdriver
Note: When choosing a wall on which to mount the device, consider cable limitations
and wall structure.
To wall-mount the device:
1. Prepare the wall-mounting screws:
a. Drill two holes in the wall according to the wall-mounting bracket dimensions. The
vertical distance between the holes should be 83 mm (3.27 inches).
b. Insert a wall anchor into each hole.
c. Using a screwdriver, drive screws of the appropriate size into the anchors,
leaving approximately 4 mm (0.16 inches) of the screw head jutting out. This
protrusion will allow you to hang the mounting bracket on the screw head.

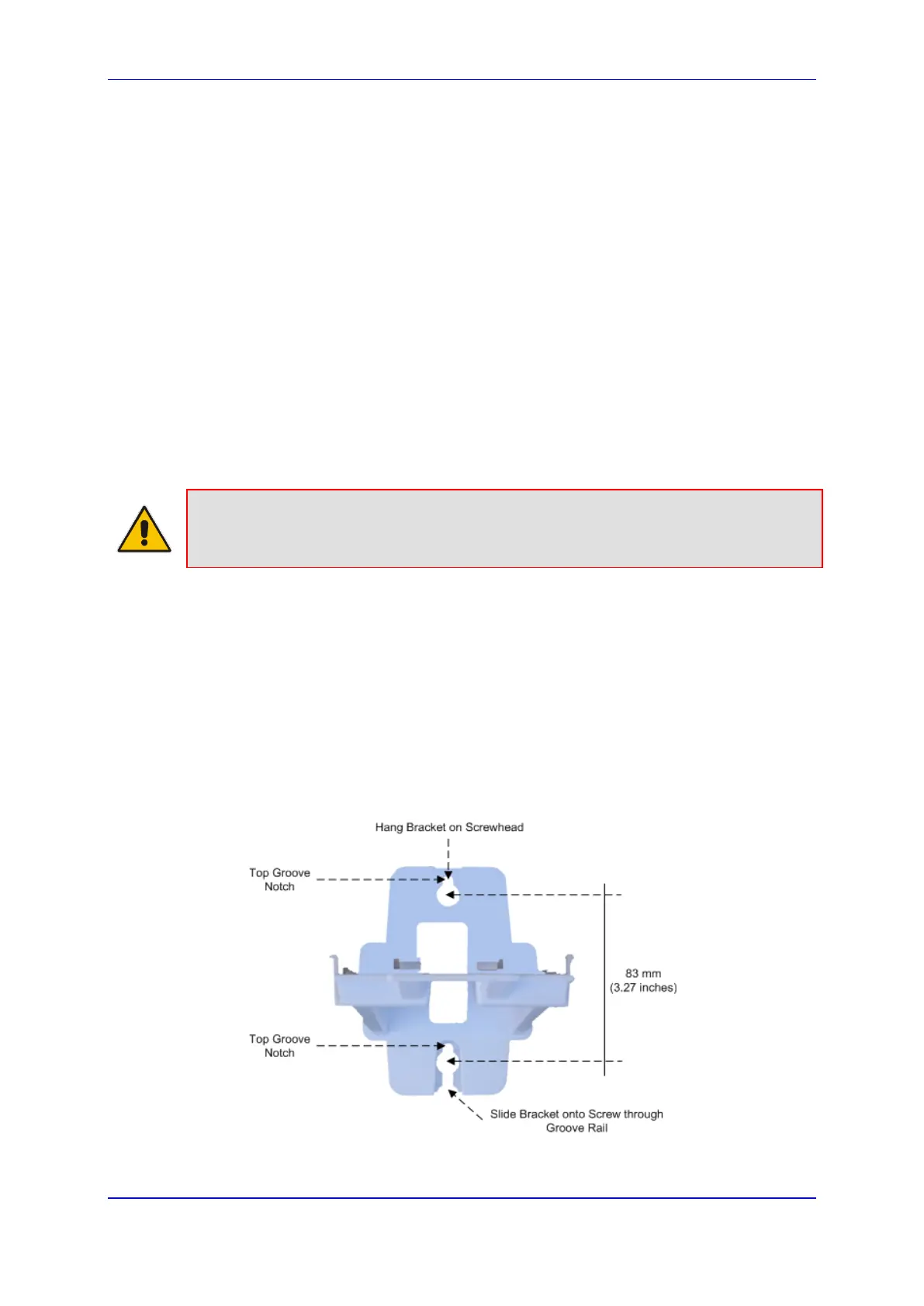

Figure 3-5: Wall Mount Bracket (e.g., MP-264)
