2. Hang the mounting bracket on the wall screws:
a. Gently slide the mounting bracket onto the lower screw so that the screw enters
the bracket's bottom screw groove rail. As you lower the bracket onto the screw,
ensure that the upper screw fits into the bracket's top screw groove.
b. Gently pull down on the mounting bracket so that both screw heads sit firmly and
securely in the top notch of the screw grooves.
3. Attach the device to the wall-mounting bracket:
a. Three slits at the base (bottom) of the device are covered by rubber caps.
Remove these caps.
b. With its rear panel facing the mounting bracket, hold the device at an angle and
slide the base of the device under the two latches located on the mounting
bracket.
c. Align the three slits on the device base with the three protruding humps located
on the front of the mounting bracket. Align the clip holes on either side of the
device with the clips on the mounting bracket.
d. While gently pressing down on the device, press the clips inwards so that the
clips snap into the base of the device.

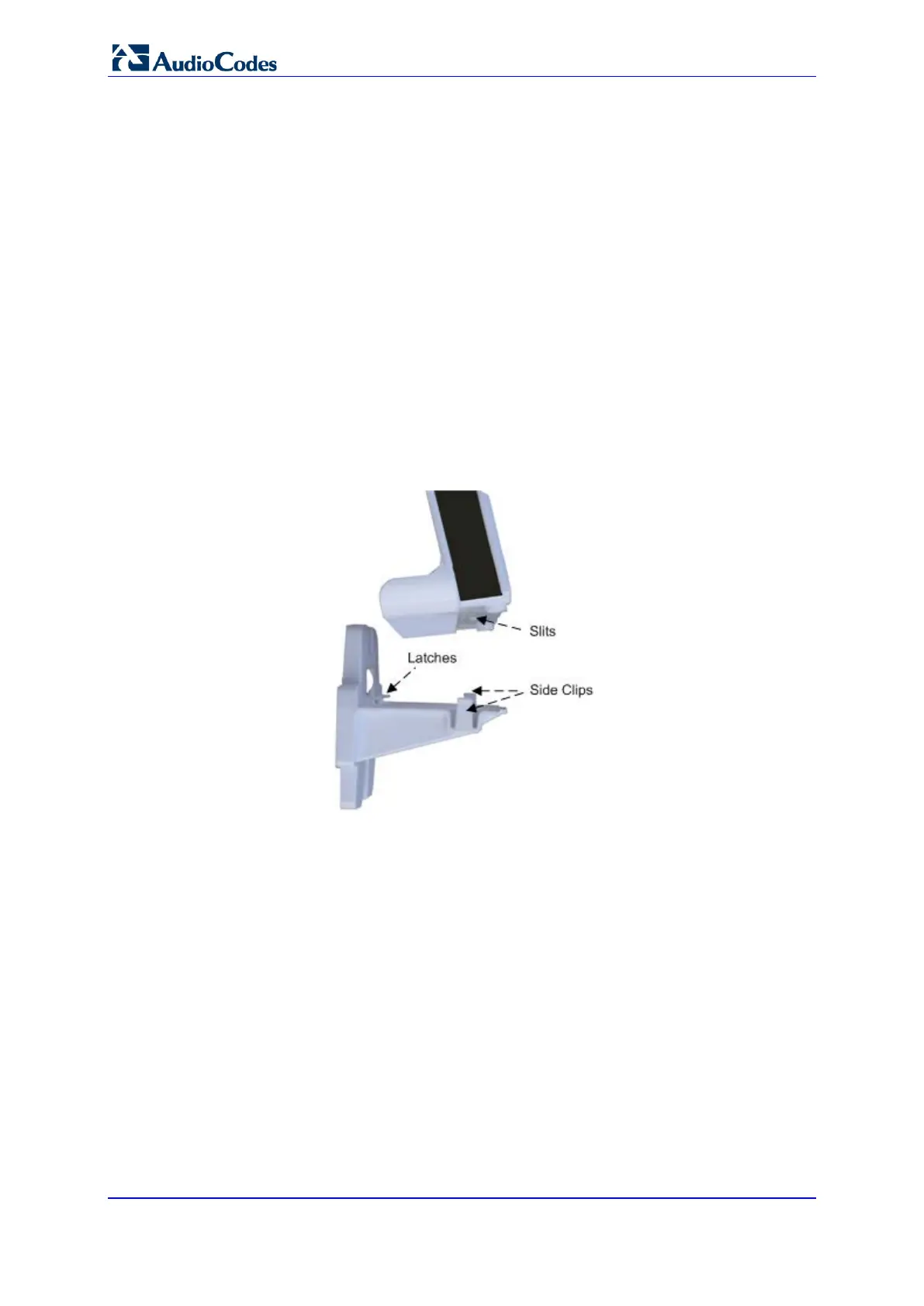

Figure 3-6: Attaching Phone Base to Wall Mount
If for any reason, you want to remove the device from the wall, follow the procedure below:
To dismount the device from the wall:
1. Press the mounting bracket clips inwards.
2. Lift the device base off the mounting bracket.
