User's Manual 12. Network Connections
Version 4.4.0 201 MP26x/MP27x
3. Egress (outgoing packets):

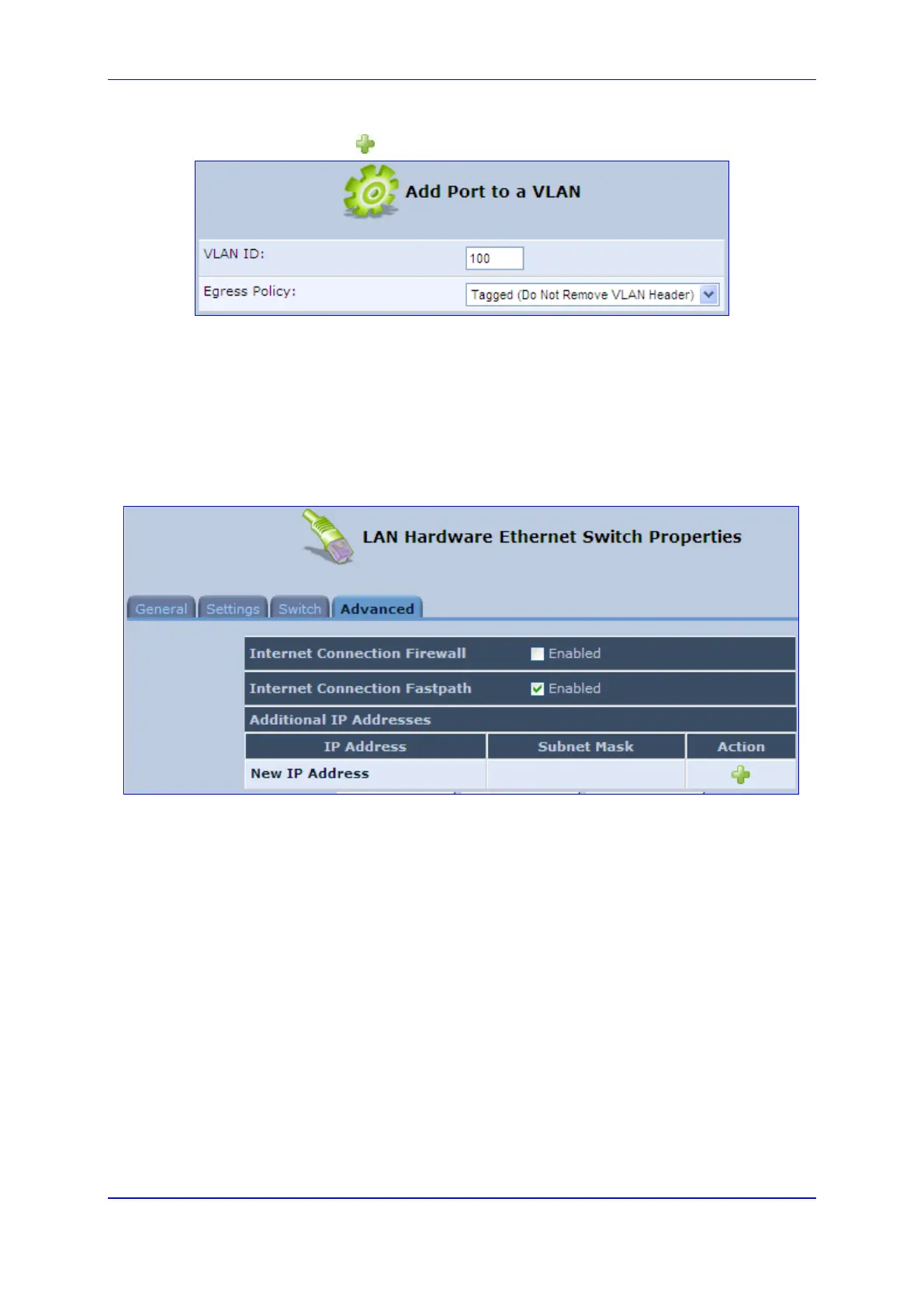

a. Click the New icon; the Add Port to a VLAN screen appears.
b. In the ‘VLAN ID’ field, enter the VLAN ID for this port.
c. From the ‘Egress Policy’ drop-down list, select whether or not to remove the
VLAN tag from outgoing packets.
12.2.2.4 Advanced Tab
The Advanced tab screen is displayed below:
Figure 12-71: LAN Hardware Ethernet Switch Screen – Advanced Tab
Internet Connection Firewall: Your gateway's firewall helps protect your computer by
preventing unauthorized users from gaining access to it through a network such as the
Internet. The firewall can be activated per network connection. To enable the firewall
on this network connection, select the 'Enabled' check box.
Internet Connection Fastpath: Select this check box to utilize the Fastpath algorithm
for enhancing packet flow, resulting in faster communication between the LAN and the
WAN. By default, this feature is enabled.
Additional IP Addresses: You can add alias names (additional IP addresses) to the
gateway by clicking the 'New IP Address' link. This enables you to access the gateway
using these aliases in addition to the IP address (e.g., 192.168.2.1) and the
http://mp264.home.
