User's Manual 34 Document #: LTRT-23510

MP-26x/MP-27x Multimedia Home Gateway

3.1.2 Rear Panel

The rear panel provides the ports for connecting the various interfaces. The figure below

displays the rear panel of the device.

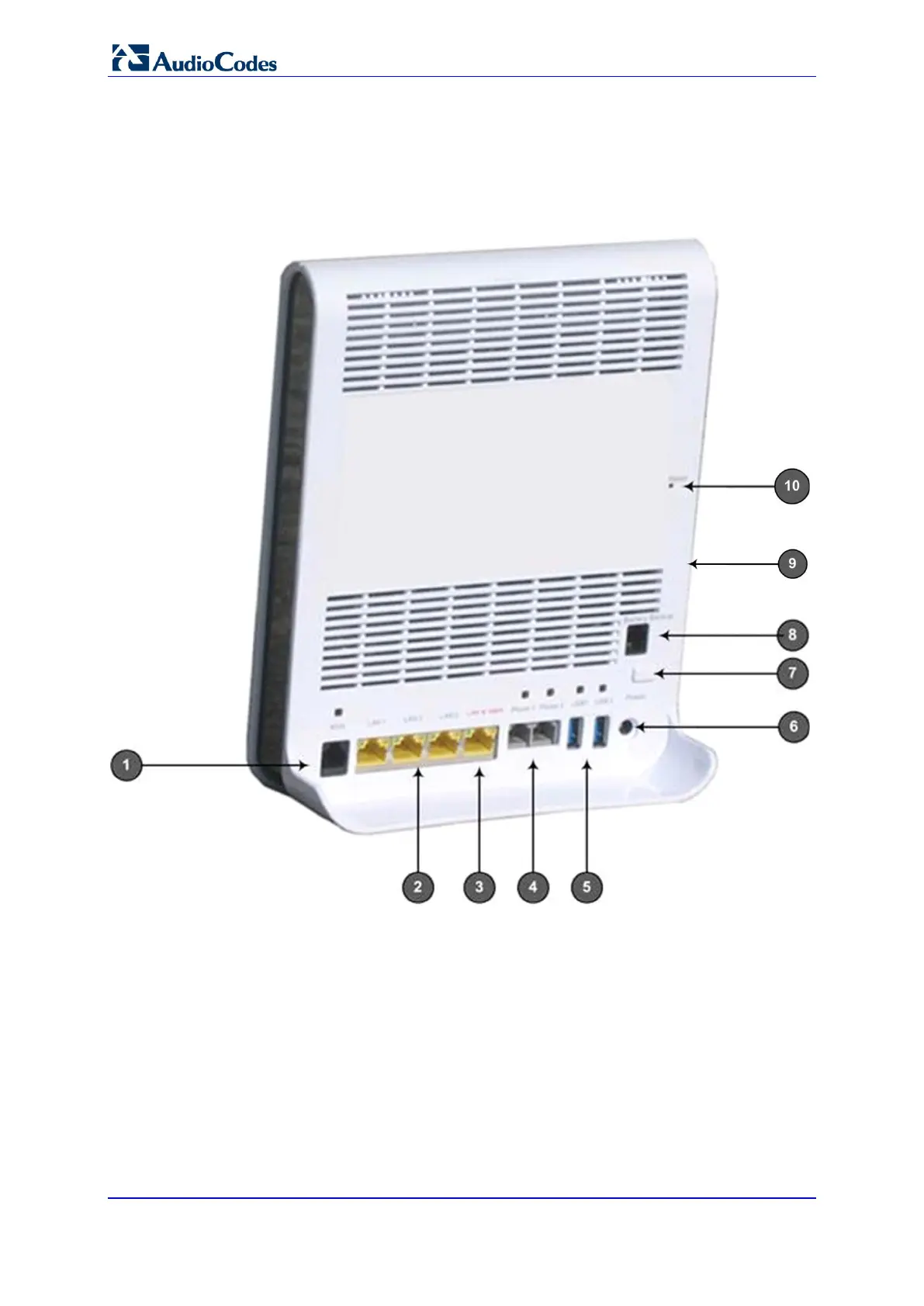

Figure 3-3: Rear Panel Model (e.g., MP-264-DB)
