User's Manual 17. Add-On Servers and Disk Management
Version 4.4.0 305 MP26x/MP27x
3. To set the first identified formatted partition as the location of the system storage area,
select the ‘Automatically Create System Storage Area’ check box. This setting is valid
until the storage device is disconnected. When reconnected, the device may select
another partition for this purpose. To define the system storage area manually, clear
this check box. The screen refreshes, displaying the 'System Storage Area' field in
which you must enter the partition's letter. In this scenario, the setting remains
permanent even after the storage device is disconnected and reconnected afterwards.

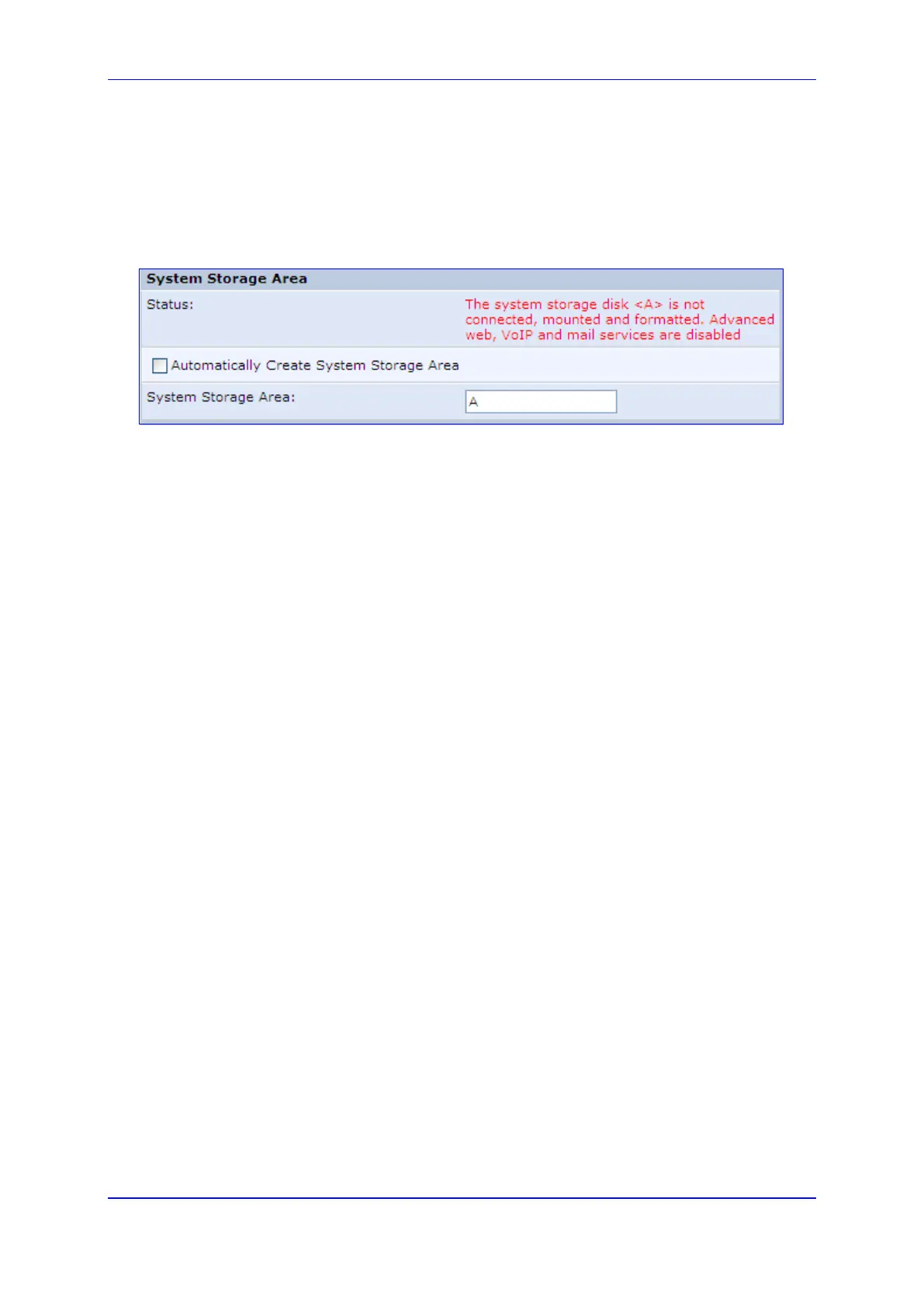

Figure 17-6: Manually Defining System Storage Area
4. In the Disks table, you can view a list of your connected storage devices. The 'Device'
column displays the names the device grants connected devices. Click this link to view
the device's 'Disk Information' screen. If a disk is partitioned, the 'Partitions' column
displays its partition names. If the partitions are formatted, their name includes a letter.
5. In the RAID Devices table, you can view the RAID devices (if configured).
