3.1.1.2.1 General LEDs Description
The general description of the device front-panel LEDs are described in the table below.
For a description of DECT LEDs, see Section 24.3.3 on page 404.
3.1.1.2.2 LEDs for Automatic Dialer Feature
The table below describes the front-panel LEDs behavior when the Automatic Dialer
feature is used (described in detail in Section 8.1.3).

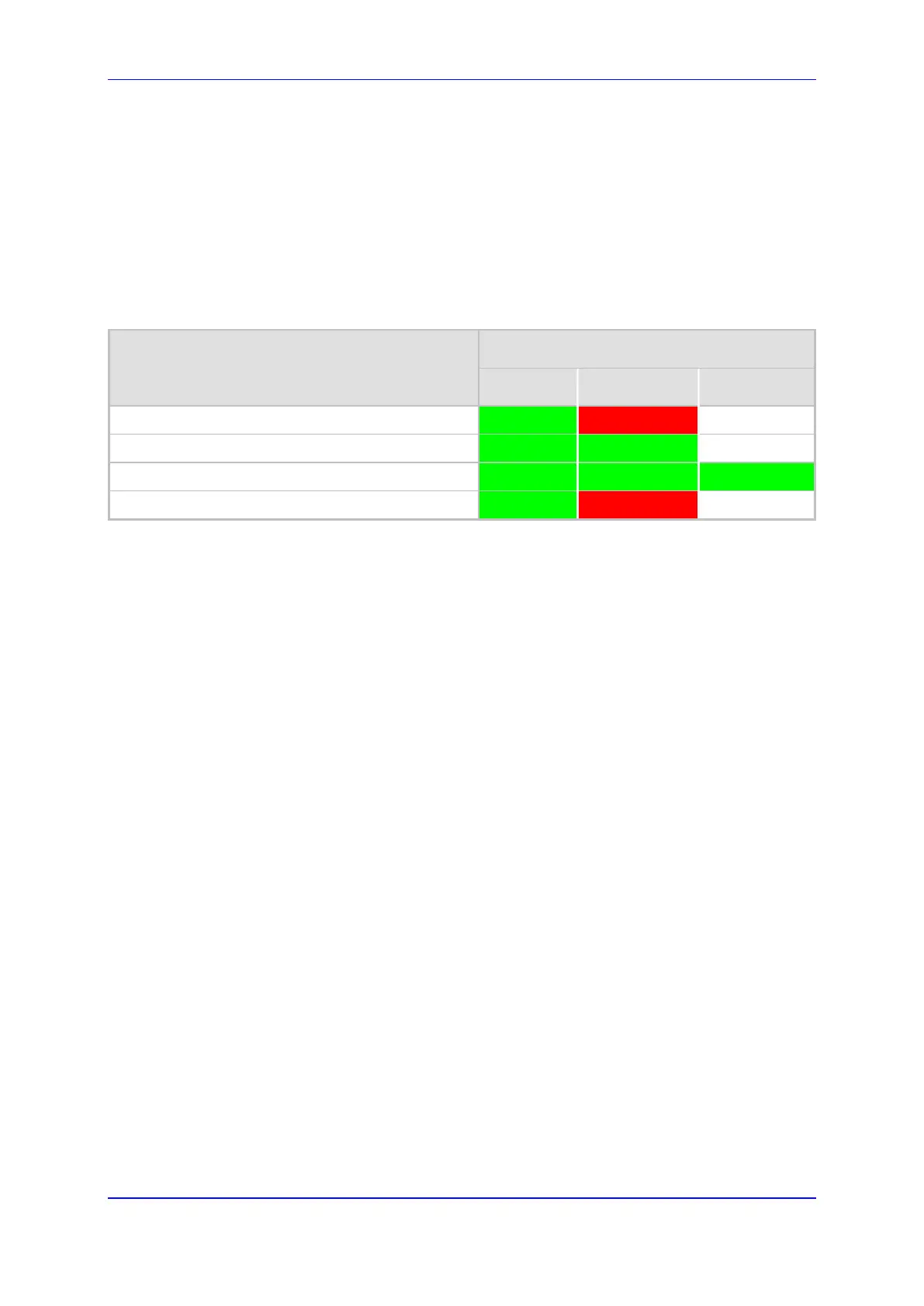

Table 3-3: Front-Panel LED Descriptions for Automatic Dialer Feature
Stage LED
Status Broadband Phone
Before WAN physical link detection Green Blinking Red Off
During automatic dialer operation Green Blinking Green Off
Automatic dialer success Green Green
Green*
Automatic dialer failure Green Red Off
* The Phone LED lights green only after the device connects to the Internet, downloads its
configuration file, and then registers to the VoIP service.
