User's Manual 14. Security
Version 4.4.0 259 MP26x/MP27x
To add a new port forwarding service :
1. From the menu bar, click the Security menu, and in the screen 'Security', click the
Port Forwarding tab; the screen 'Port Forwarding' opens.

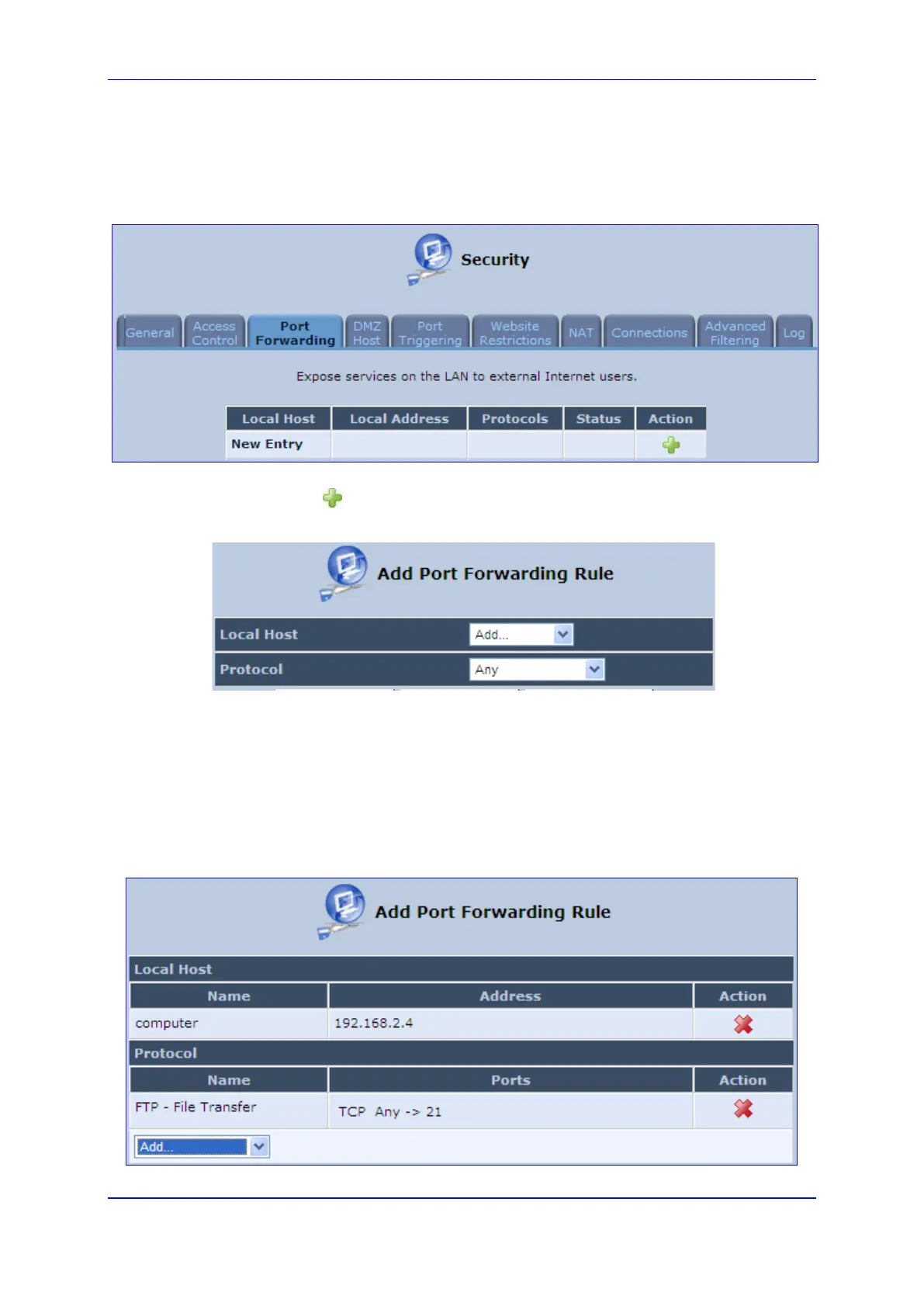

Figure 14-5: Port Forwarding Screen
2. Click the New icon; the screen 'Add Port Forwarding Rule' opens.
Figure 14-6: Add Port Forwarding Rule
3. From the ‘Local Host’ drop-down list, select the network object (defined in Section
5.5.2 on page 61) or define one now by selecting the ‘User Defined’ option. This is the
IP address or host name of the computer that provides the service (the 'server'). Note:
Only one LAN computer can be assigned to provide a specific service or application.
4. From the ‘Protocol’ drop-down list, select the type of protocol (defined in Section 5.5.3
on page 63) or select ‘User Defined’ to define one now. You can select multiple
protocols for this rule.
Figure 14-7: Selecting Protocol Type
To Next Page
