User's Manual 12. Network Connections
Version 4.4.0 173 MP26x/MP27x

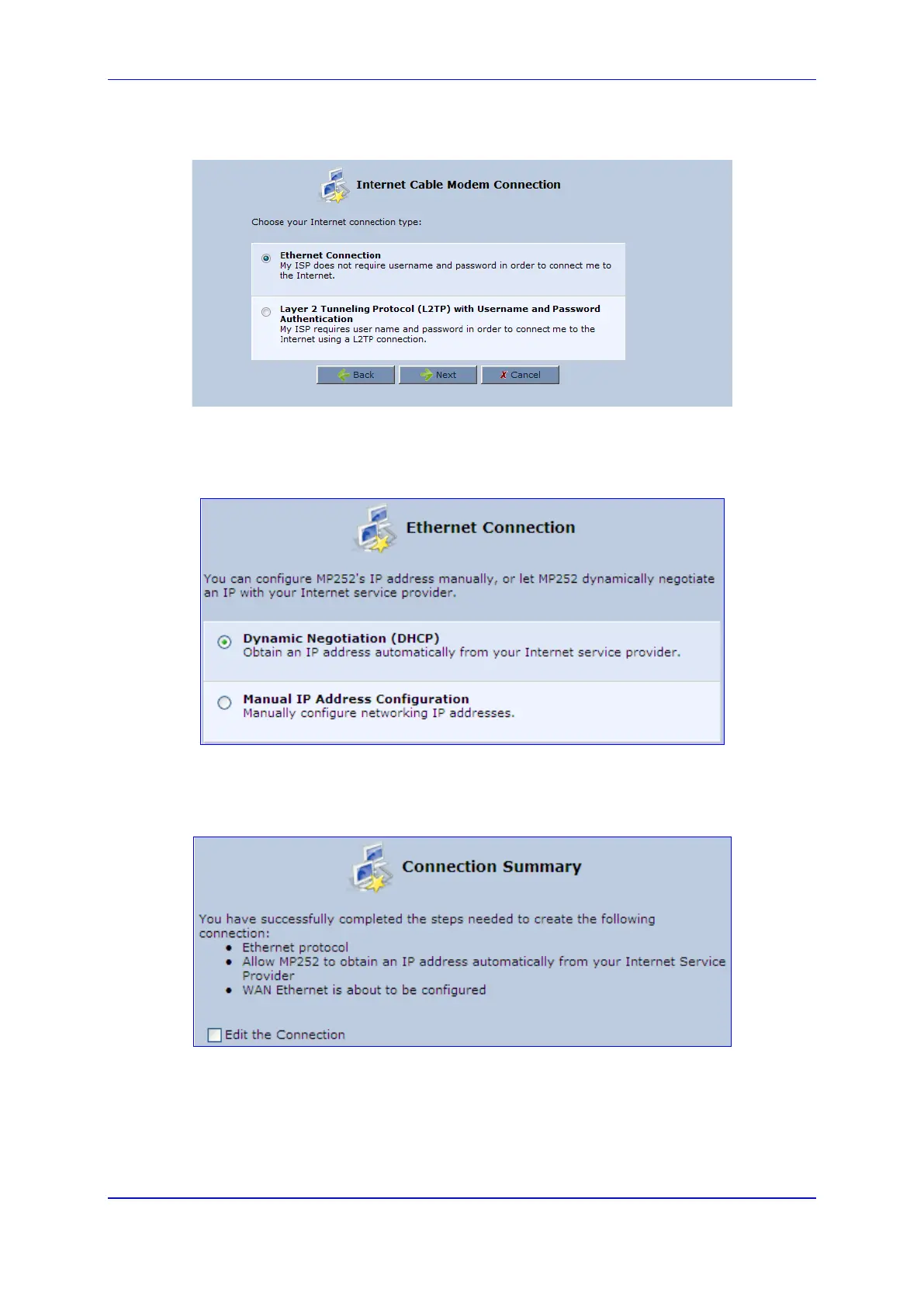

The ‘Internet Cable Modem Connection' screen appears.
Figure 12-32: Internet Connection – External Cable Modem
5. Select the Ethernet Connection option, and then click Next; the ‘Ethernet
Connection' screen appears.
Figure 12-33: Ethernet Connection Screen
6. Select the Dynamic Negotiation (DHCP) option, and then click Next; the screen
'Connection Summary' opens.
Figure 12-34: DHCP Connection Summary
7. Select the 'Edit the Connection' check box if you wish to be routed to the new
connection's configuration screen after clicking Finish.
8. Click Finish to save the settings; the new connection is added to the ‘Network
Connections’ screen.
