User's Manual 176 Document #: LTRT-23510
MP-26x/MP-27x Multimedia Home Gateway
7. Configure the IP address and other network parameters, and then click Next; Select
the Manual IP Address Configuration option, and then click Next; the 'Connection
Summary' screen appears.

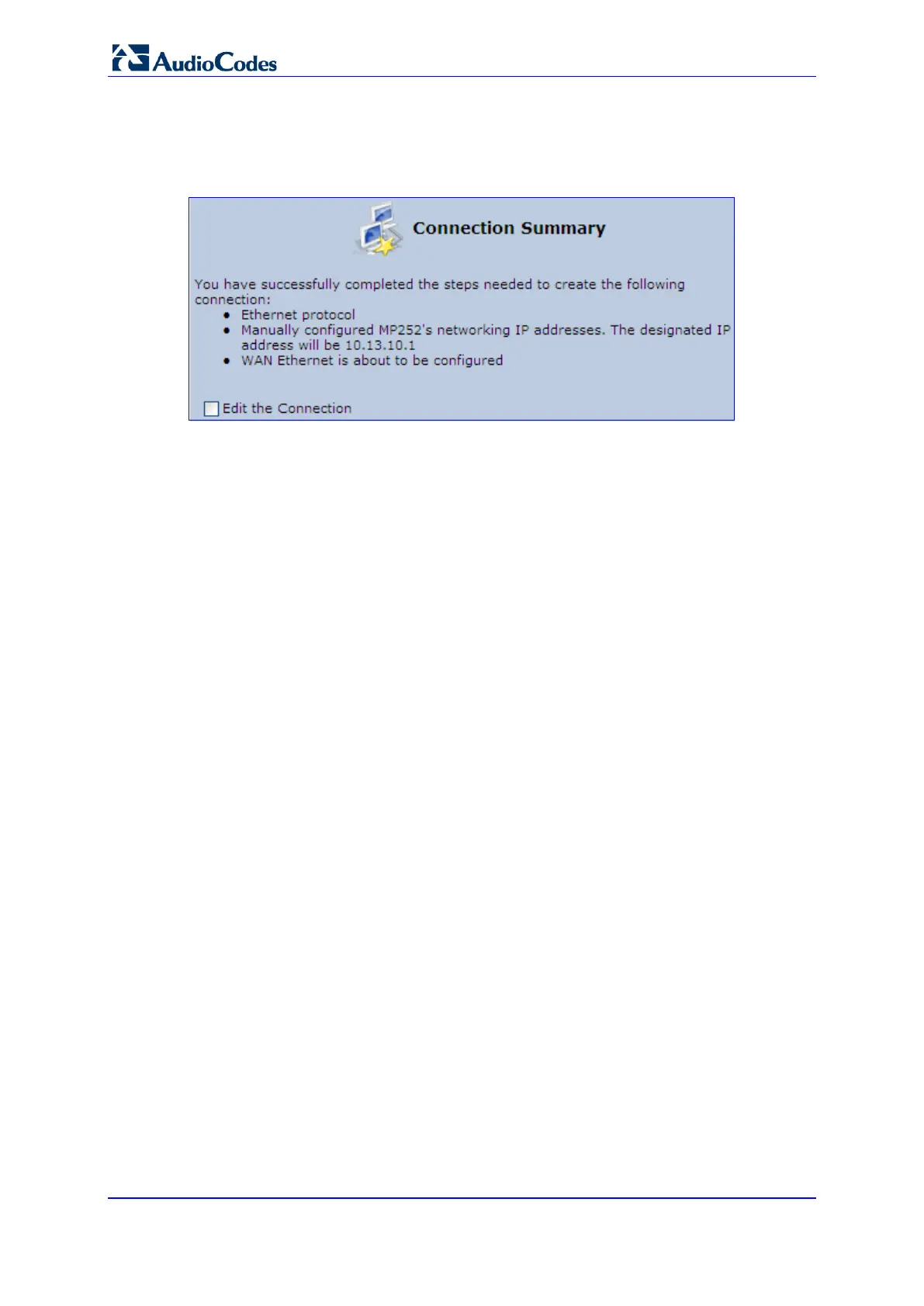

Figure 12-39: Manual IP Connection Summary
8. Select the 'Edit the Connection' check box if you wish to be routed to the new
connection's configuration screen after clicking Finish.
9. Click Finish to save the settings; the new connection is added to the ‘Network
Connections’ screen.
