User's Manual 17. Add-On Servers and Disk Management

Version 4.4.0 323 MP26x/MP27x

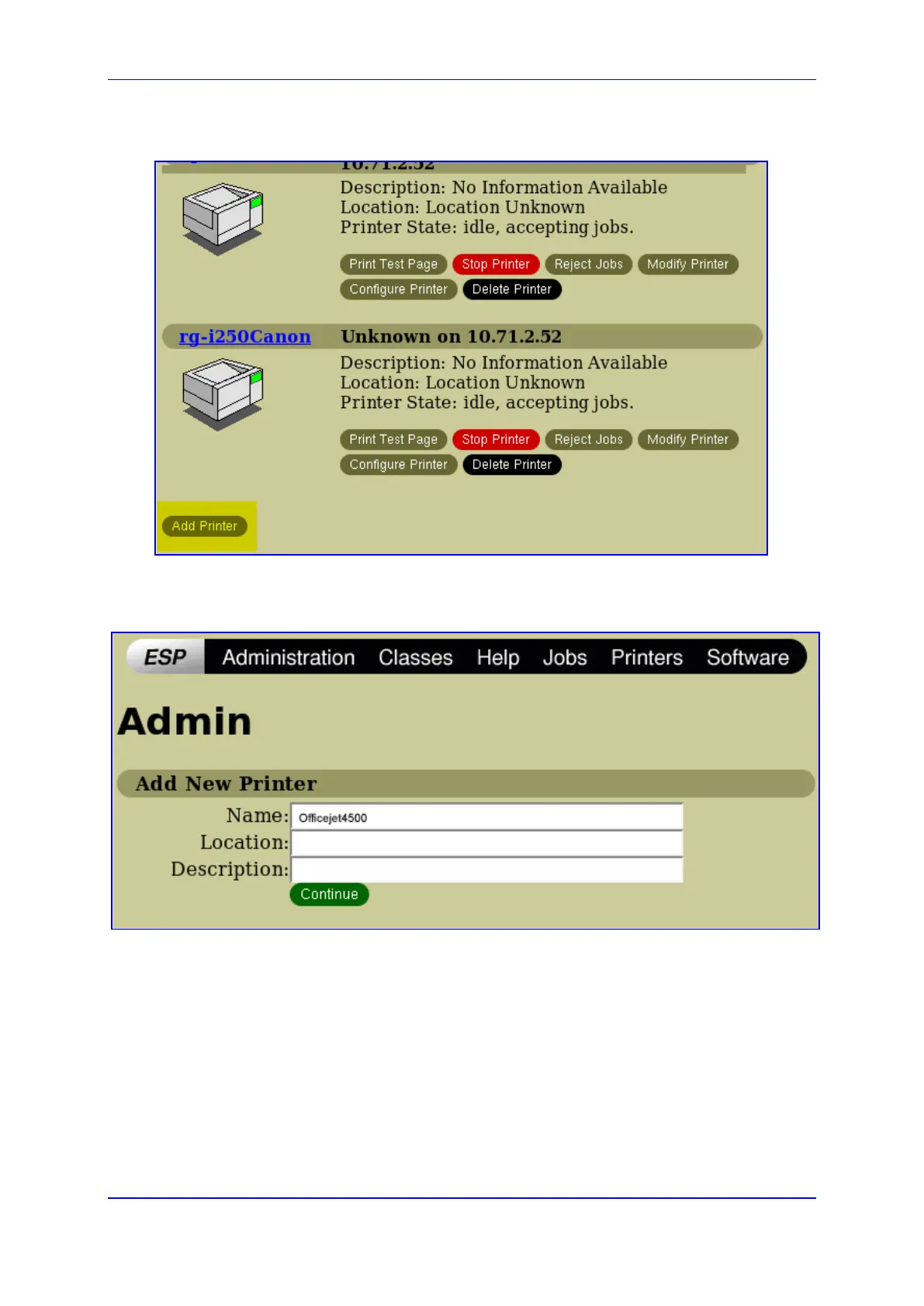

4. Click Add Printer.

Figure 17-31: Add Printer

5. In the 'Name' field, type the printer's name and then click Continue.

Figure 17-32: Printer Name
