6. EM GUI orientation
• ED ID
All inputs can have an EDID (Extended Display Identification Data) set according to its connector capacity. T he currently set
EDID is visible in the Current box.
Format: T he drop-down menu with its search function provide a way to select any of the available VESA or SMPTE standard
EDIDs as well as a frame rate. Once selected the Apply Button needs to be pressed in or der to program the inputs.
• ED ID Timing
The EDID timing can be edited into a non standard, or Custom EDID by double clicking on each timing box and inserting a
value. A EDID timing needs to follow the VE SA rules, and typically a VE SA calculator n eeds to be used.
Once a value is ins erted ENTER needs to be pressed.
Selected EDID or Custom EDID can be applied to all inputs of the same type at once by selecting the checkbox towards the
end of the panel.
• HDCP
Enables the HDCP setting for the selected input.
The default for DisplayPort, DVI, and HDMI inputs is Off. To turn On the HDCP Mode, click on the empty checkbox. When the
checkbox displays a check mark, HDC P Mode is On. HDCP Mode is not applicable to SDI inputs.

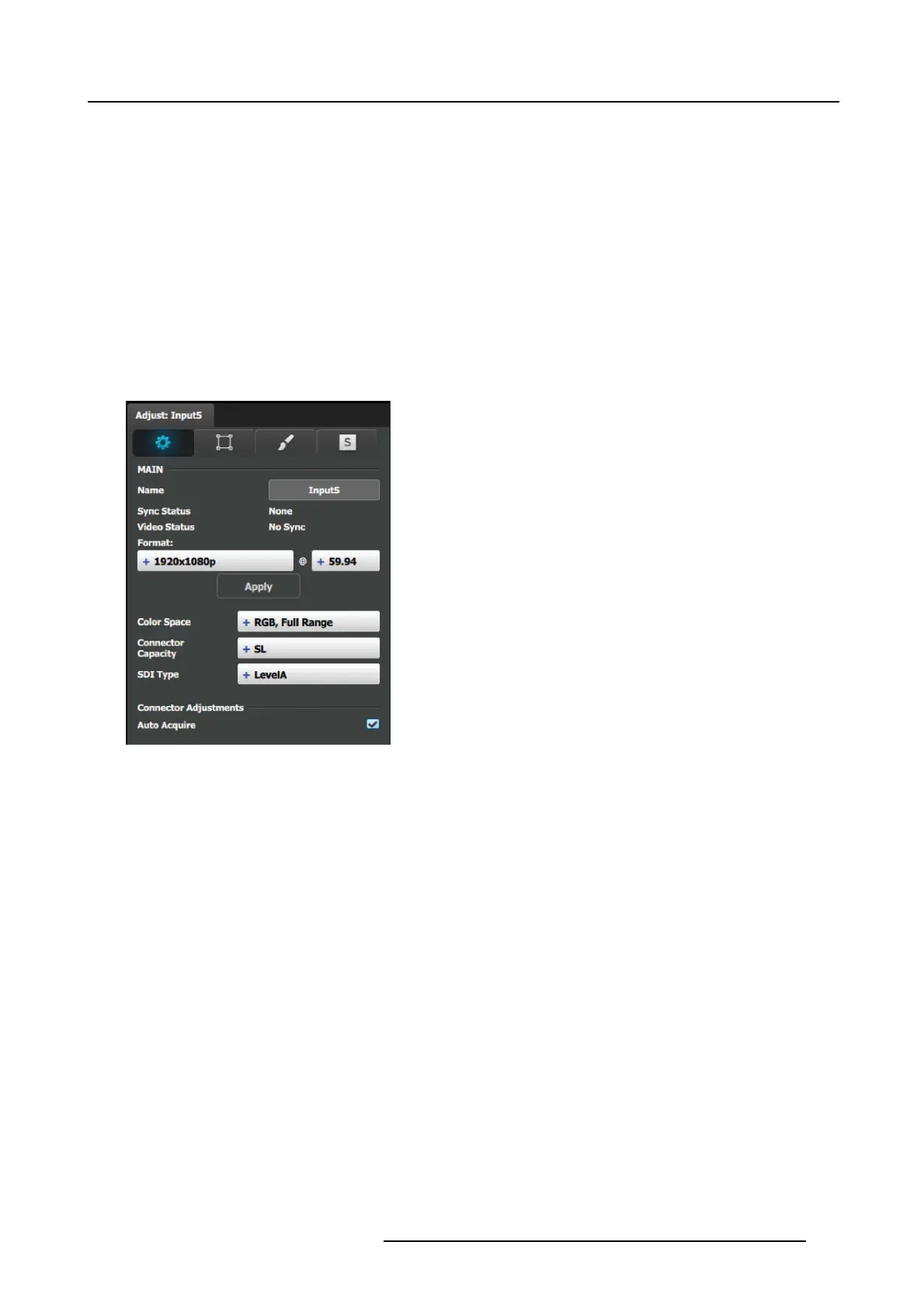

•SDIinput type
The S DI input config uration m enu is similar to the DVI/H MDI/DP menu b ut without the EDID and HDCP sections. In addition the
SDI menu includes an addition selection regarding the S DI type.
• Colorspace: The detected colorspace is shown her e. In the
event of a non-VESA s tandard source the colorspace can
be unmatched to the processing. In this case a different
colorspace can be selected to accommodate the signal.
Available are:
- RGB, Full Range
- RGB, R educed Range
- SMPTE , F ull Range
- SMPTE , Reduc ed R ange
• SDI type (available with SDI connec tor type) : allows a
choice between HD (1.5Gb), 3G (3Gb) Level A, Level B,
Level A 2SI, or Level B 2SI.
The S DI Type options vary, depending on the format of the
Outputs. For e xamp le, for:
- NTSC/PAL— the SDI Type can be only SD.
- 1080i or 1080p, w ith a refresh rate less than or equ al to
30 Hz—the SDI Type can be only HD.
- 1080p, with a refresh rate greater than 30 Hz—the SDI
Type can be:
o
Level A (d efault)
o
Level B
o
Level A 2SI
o
Level B 2SI
The 2SI options are available only if t he Input/Output con-
figuration has 4 SDI connectors from the same card, and
the Output format is either 1920 x 1080 or 2048 x 1080.
Auto Acquire Feature discussion:
When the A uto Acquire is On, the sy stem performs a full sync acquisition on the input s ignal whenever:
• You select a n input
• The input type changes
• The sync rate of the input s ignal chan ges
During acquisition, the system detects and acquires the input type and r esolution W hen In Auto Acquire is off, the system u ses the
last known configuration, when pos sible. If the input signal is incomp atible with the saved c on figura tion, a good input lock may not
be pos sible. In this case, the format name field in the S tatus Menu displays the Invalid Signal message.
Please note the following important points regarding In Auto Acquire:
• It is recommended that you turn O ff Auto Acquire in applications where you h ave already configured an d saved the system’s
input s etup.
• If Auto Ac quire is On and a valid input is selected that does not have a s aved input associated with it, the system attempts to
detect and acquire the source. This process may take a few mom ents.
• If Auto A cquire is Off, the system uses the last-known configuration for each input, to the extent possible, compar ing the input’s
timing to the confi gurations in the system’s library. Thes e c onfigurations can be custom files or system default c onfigurations.
• Most users can leave In Auto Acq uire on. Advanced users who know the input video timing parameters may choose to turn In
Auto Acquire off and select the par ameters m anually.
R5905948 EVENT MASTER DEVICES 17/07/2017
