6. EM GUI orientation

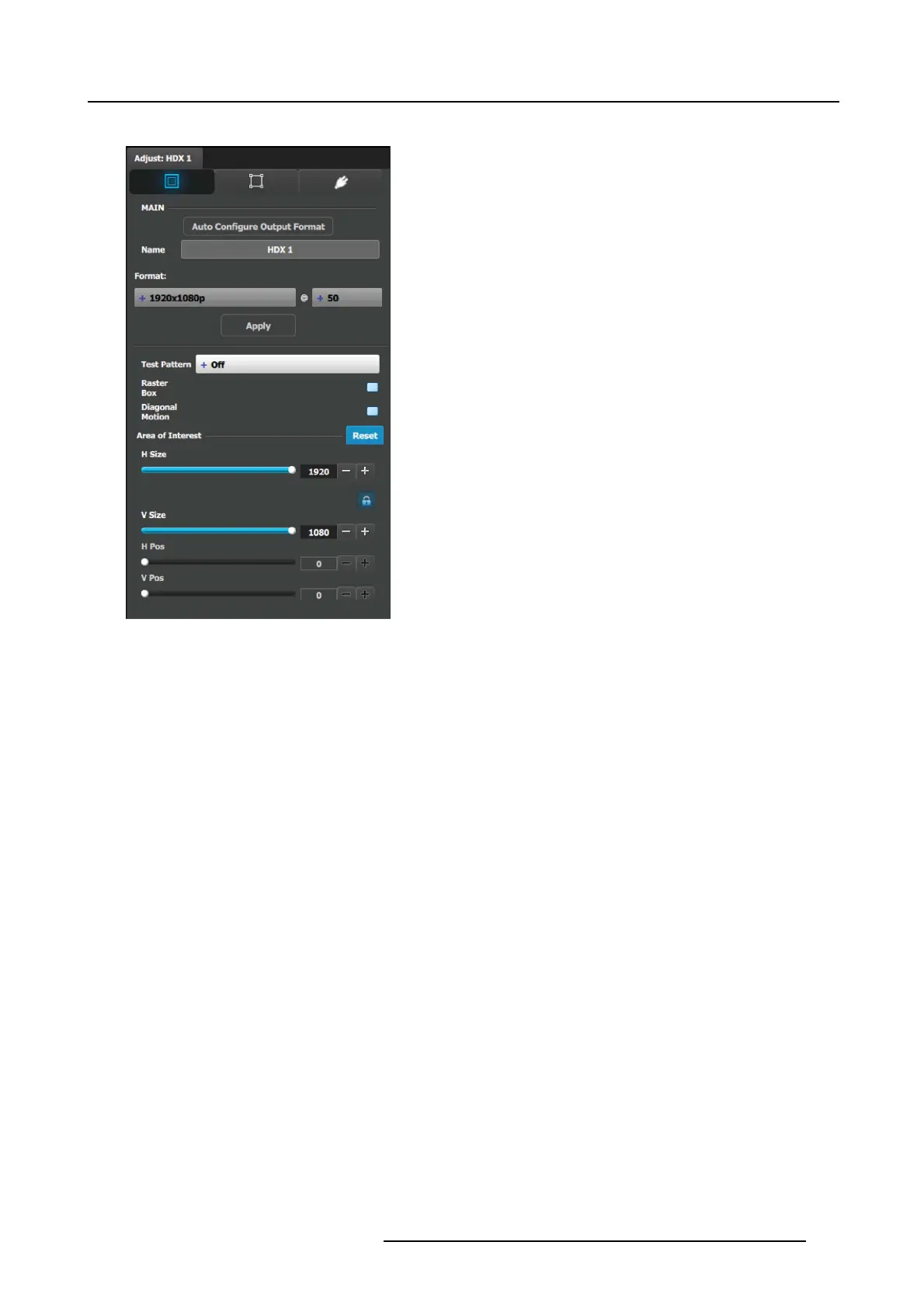

Output adjustment panel > Main page
• Auto Configure O utput format: Selects the output format
will be s et to match the format contained in the ED ID of the
display device connected to the corresponding output(s).
• Name: The name o f the output configuration can be edited
in this field.
• Format: Selects the video format of the output configu ration
from the drop-down m enu. The available formats are in
compliance with the output confi guration type. For example,
if the configuration is 4K, only 4K formats w ill be presented
in the drop-down menu.
• Test pattern: Turns the Test Patterns ON and select the
desired type. The default setting is OFF. Test pattern types :
- Horizontal Ramp
- Vertical Ramp
- 100% Color Bars
- 16x16 G rid
- 32x32 G rid
-Burst
-75%Colorbars
- 50% G ray
-
- Horizontal steps
- Vertical steps
-White
-Black
-SMPTEBars
- H Alignment
- V A lignment
- H V A lignment
- Circle Alignment
• Raster box: Turns ON or OFF on a raster around the default
active area. This raster box is a white, single-pixel-wide
broken line.
• Diagonal Motion: Turns the Diagonal M otion ON or OF F
for select patterns
- The m otion is a bottom-right to top-left diagonal for
16x16, 32x 32 grid
- The motion is right to left for 100% Color Bars.
- There is n o m otion in Horizontal a n d vertical Ramps and
other patterns
• Area of Interest (A OI): A r aster box that can be positioned
and s ized within the outputs active area, it effectively ma kes
the AOI the new active area.
This raster box is a green, s ingle-pixel-wide broken line that
helps you adjust the AOI within the output’s active area
The handles for the AOI menu are:
- H Size and V size : Adjusts the horiz ontal and vertical
positions respectively
- H Pos and V pos: Adjusts the horizontal and vertical
positions respectively
- Note a lock button to allow user to lock the aspect ratio
of the size.
• Reset button: resets the AOI to default which is the full
output area.
Note: The AOI of AUX outputs w orks as above while P rogram
outputs will be implemented during 2015.
