6. EM GUI orientation
Image 6-30

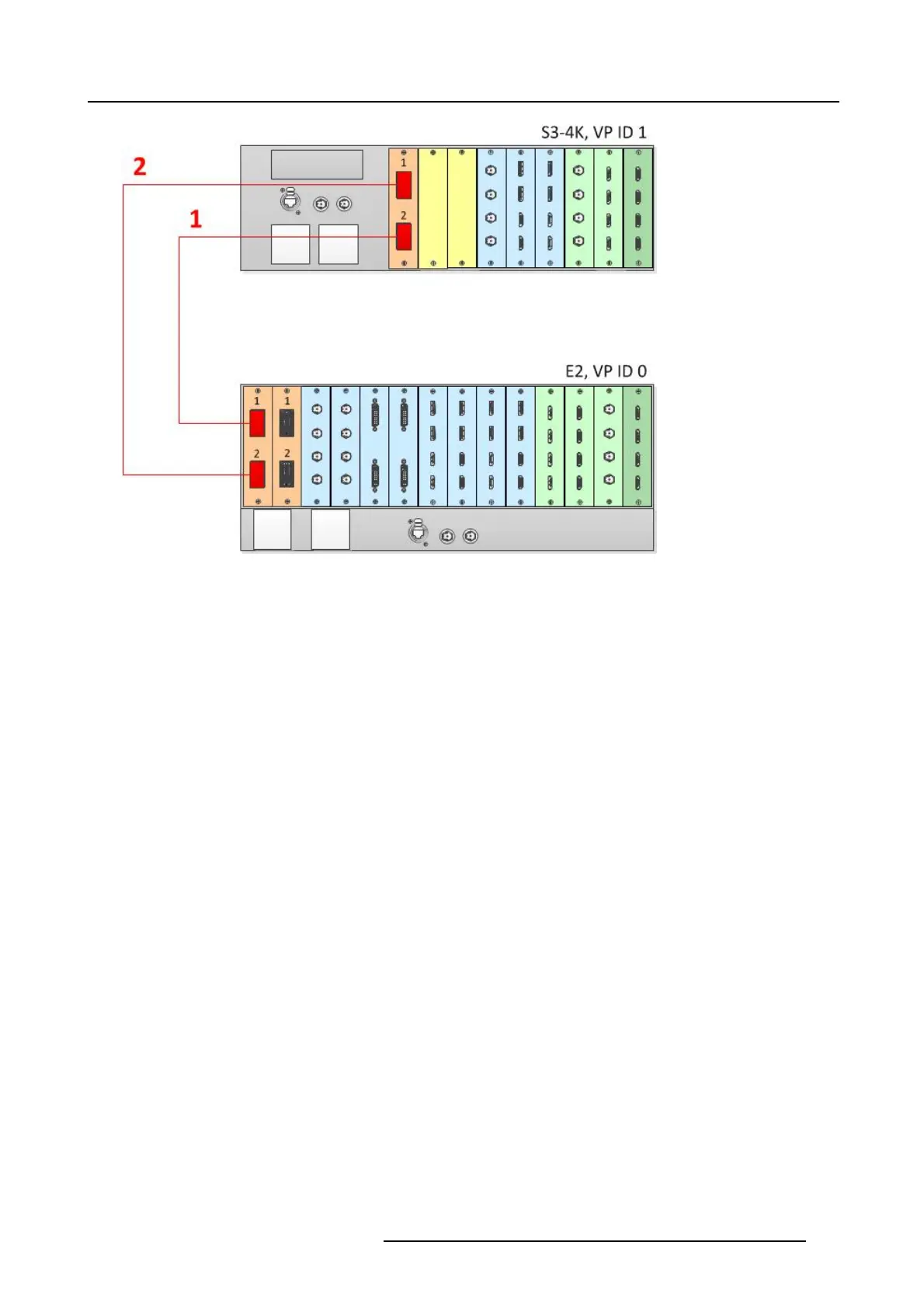

Cabling between an E2 unit and an S3-4K unit
Event Master Configuration for an E2 and an S3–4K
1. Start the Event M aster Toolset version 3.2 or higher.
2. Make sure that both the E 2 and the S3–4K are discovered on t
he network and that they ha ve different Unit IDs.
3. DroptheE2intheGUI.
4. Then drop the S 3–4K in the GUI.
You will be presented the option to add as a new system, add as a master, or add as a slave. An S3–4K can be added as a
Master or Slave to an E2.
5. Select either add as a master or add as a slave.
6. (Optional) At this point it is suggested that you s elect and name appropriately each E 2 so that yo u can identify it in your setup.
How to Link an E2 Unit to a n EX Unit or to Two Daisy-Chained EX Units
Each E2 comes equipped with two Link cards, always located in s lots 1 and 2. Link cards are identified by a yellow stripe at the top.
Each E X has two Link s ockets. Mak e s ure to use the locking mechanism and then push ea ch cable until it locks in place.
To link an E2 to an EX, connect th e Link cables provided with each unit between the Link connectors as follows:
• E2 VP ID 0, Link Card slot 1, Link 1 >> EX VP ID 1, Link 2
• EXVPID1,Link1>>EXVPID2,Link2
See image 6-31 for an example of the cabling between an E 2 unit and two EX units.
R5905948 EVENT MASTER DEVICES 17/07/2017
