6. EM GUI orientation

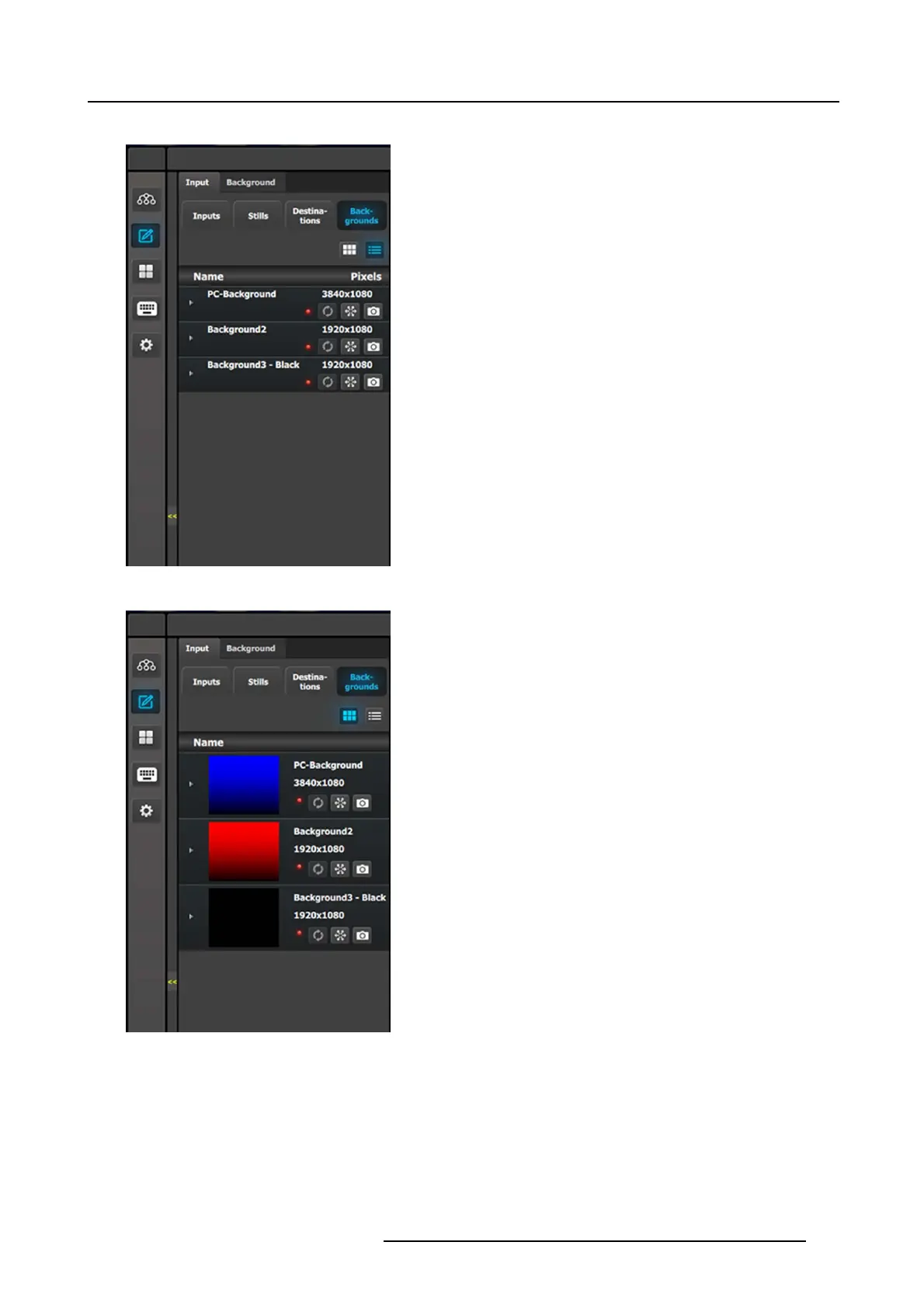

Input > Backgrounds (List view)
• Name: This is the N ame of the Input as c reated in the
configuration o f the s ystem.
• Resolution: This is the res olution of the Input signal.
• The LE D color indicates the status of the input:
- Red: Sync is missing or invalid form at.
- Green: Sync is valid.
• [Snowflake Icon] Freezes the input.
• [Camera icon] Allows for a snapshot to be taken and stored
as a St ill.
Input > Backgrounds (Thumbnail view)
• Behavior is similar to the List v iew mode (see abov e).
Backgrounds as Inputs
The Input > Back grounds subtab allows the Event M aster series processor to use B ackgrounds as Inputs. This subtab can be used
on any Event Mas ter processor, but it is especially useful on a limited-resource processor, such as an S3– 4K Jr. processor. An Input
defined as a Backgrou
nd can now be used as a Background, or as a source on an AUX Destination o r Screen Destination layer.
