6. EM GUI orientation

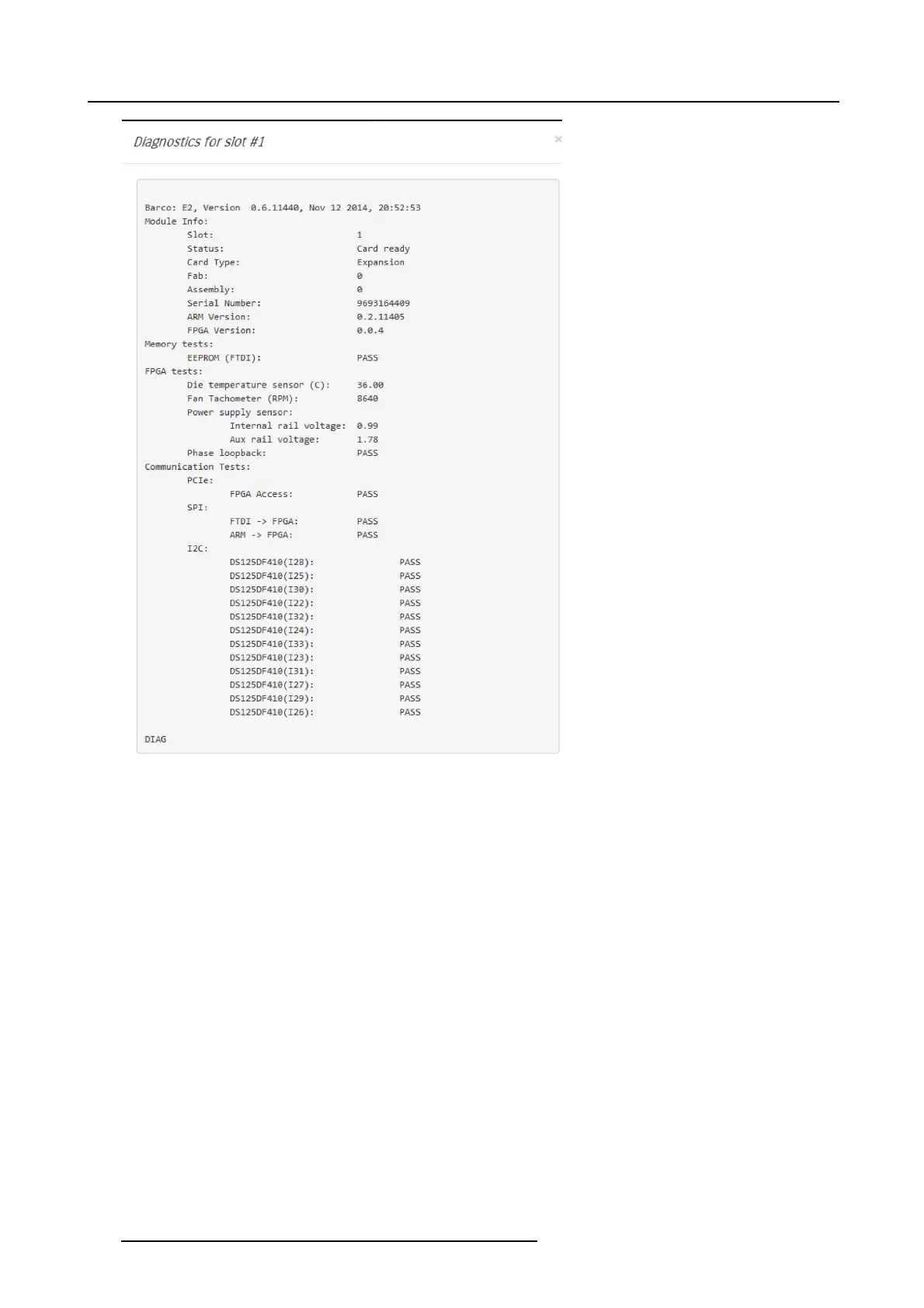

Image 6-92
e.g. E2 diagnostic report.
Outputs
This menu p resents a list of the output cards installed in the system. Th e status colum n indicates whether any errors have been
detected. Detailed d iagnostics tests for each car d ar e performed by selecting the diagnos tics button under the action column.
208
R5905948 EVENT MASTER DEVICES 17/07/2017
